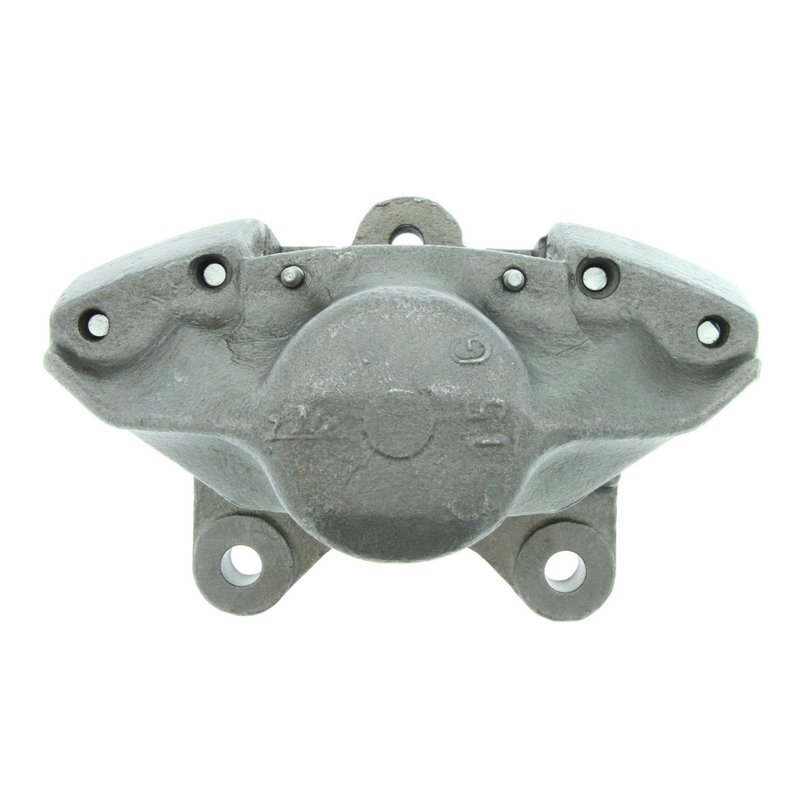

Centric 141.39503 Disc Brake Caliper - Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.39503

The Centric Premium Semi-Loaded Disc Brake Caliper 141.39503 is designed specifically for Volvo 240, DL, and GLE models. This fixed caliper features a durable cast iron construction and dual steel pistons to provide reliable braking performance under various driving conditions.

• Compatible with Volvo 240, DL, and GLE models
• Fixed caliper design with two steel pistons (38mm diameter)
• Cast iron caliper casting for strength and durability
• Includes bleeder screw (M7x1.0 thread) and abutment clips
• Inlet thread size M10x1.0 with bubble type fitting
• Caliper color: gray
• Pad wear sensor not included; pads not included

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a semi-assembled caliper solution that simplifies brake system maintenance and replacement. This product line balances quality materials and precise engineering to meet the demands of specific vehicle applications. The 141.39503 caliper is a fixed type with two pistons made of steel, each measuring 38mm in diameter, ensuring consistent pressure distribution on the brake pads. The caliper casting is made from cast iron, providing the necessary rigidity and heat resistance for effective braking.

Product Features and Specifications

• Pad wear sensor: Not included
• Inlet thread diameter: M10x1.0 (10mm)
• Bleeder screw thread diameter: M7x1.0 (7mm), bleeder screw included
• Abutment clips included for proper pad alignment
• Mounting hardware and pads are not included
• Air gap measurement: 100.5mm
• Caliper color: Gray
• Inlet fitting type: Bubble

Applications and Problem Solving

This disc brake caliper is designed for use on Volvo 240, DL, and GLE models, addressing common braking system issues such as:

• Uneven brake pad wear due to piston malfunction
• Reduced braking efficiency from corroded or damaged calipers
• Brake fluid leakage caused by worn seals or fittings
• Brake noise and vibration from misaligned caliper components
• Difficulty in brake pedal response due to caliper failure

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.39503, ensure the following:

• Verify compatibility with Volvo 240, DL, or GLE models before installation
• Use appropriate brake pads and mounting hardware, as these are not included
• Bleed the brake system thoroughly after installation to remove air
• Inspect and replace any worn brake lines or fittings as needed
• Torque mounting bolts to manufacturer specifications

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The 141.39503 caliper undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
