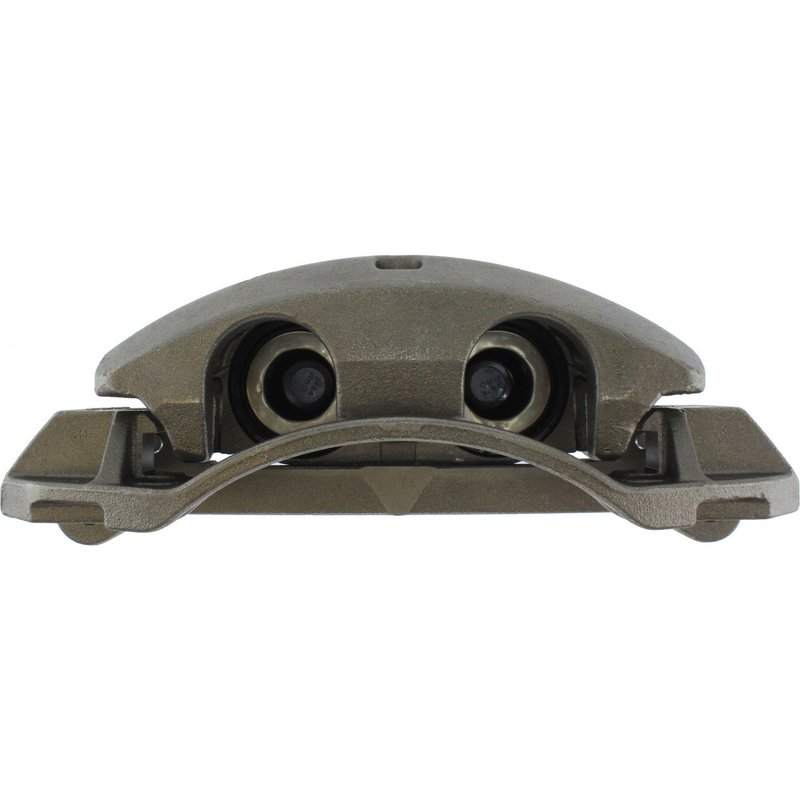

Centric 141.42177 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.42177

The Centric Premium Semi-Loaded Disc Brake Caliper 141.42177 is engineered for reliable braking performance on Nissan NV1500, NV2500, NV3500, and TITAN XD models. Designed as a floating caliper with dual phenolic pistons, this component ensures consistent stopping power and durability.

• Compatible with Nissan NV1500, NV2500, NV3500, and TITAN XD
• Part number 141.42177 for precise identification
• Cast iron caliper construction for strength and heat resistance
• Two phenolic pistons with 57mm bore diameter for effective braking
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper design with trailing axle position
• Banjo-type inlet fitting with M10x1.0 thread size

Detailed Product Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a cast iron body that provides durability and resistance to heat generated during braking. The caliper uses two phenolic pistons, each with a diameter of 57mm, which help reduce heat transfer to the brake fluid and improve overall brake system longevity. The floating caliper design allows for smooth movement and even pad wear, optimized for trailing axle applications on Nissan trucks and vans.

The caliper includes a bleeder screw with M10x1.0 thread size for easy brake fluid bleeding and maintenance. It also comes with a mounting bracket and abutment clips to facilitate installation, although mounting hardware and brake pads are not included. The inlet fitting is a banjo type with a 10mm thread diameter, compatible with standard brake lines for these Nissan models.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. These semi-loaded calipers come with essential components such as the mounting bracket, abutment clips, and bleeder screw, allowing for easier installation while giving flexibility to use existing brake pads and hardware. This product line is designed to meet OE specifications for fit, form, and function, making it suitable for Nissan NV1500, NV2500, NV3500, and TITAN XD vehicles requiring reliable brake system repairs.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Nissan NV1500, NV2500, NV3500, and TITAN XD
• Addresses uneven brake pad wear due to caliper sticking or malfunction
• Resolves brake fluid leaks from damaged or corroded caliper bodies
• Improves braking performance by restoring proper piston movement
• Suitable for trailing axle brake system repairs requiring a floating caliper

Installation Notes and Tips

• Ensure compatibility with Nissan NV1500, NV2500, NV3500, or TITAN XD before installation
• Use existing brake pads and mounting hardware as these are not included
• Bleed brake system thoroughly after installation using the included bleeder screw
• Inspect brake lines and fittings for wear or damage during installation
• Torque mounting bolts to manufacturer specifications for safety and performance

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for durability and performance. The cast iron construction and phenolic pistons contribute to long service life under normal operating conditions. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or Centric directly for exact warranty terms.
