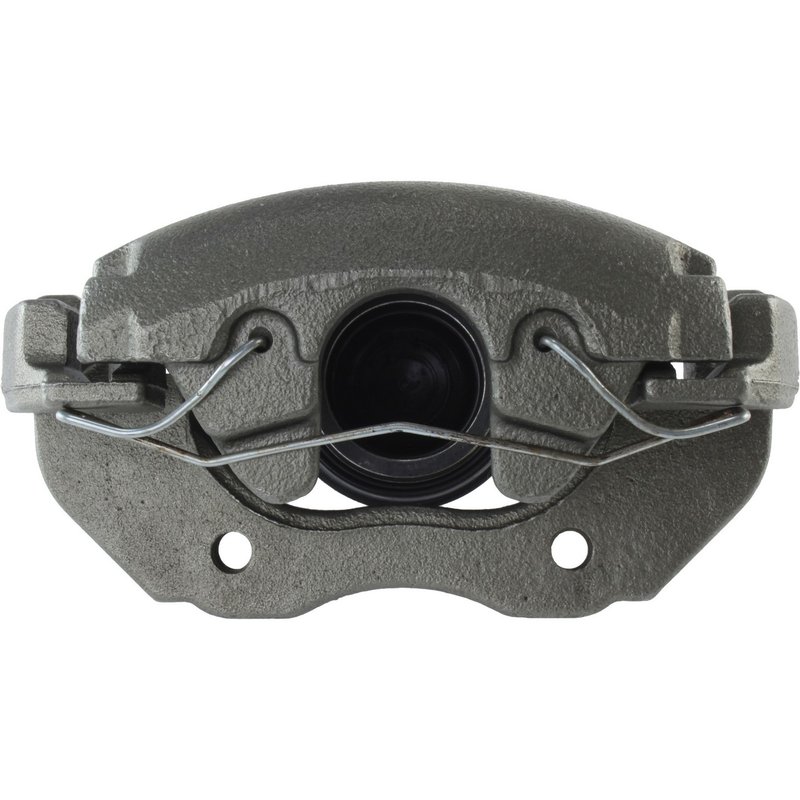

Centric 141.45085 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.45085

The Centric Premium Semi-Loaded Disc Brake Caliper 141.45085 is engineered for reliable braking performance on select Mazda and Volvo vehicles. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Mazda 3 and Volvo C30, S40 models
• Cast iron caliper construction for strength and heat resistance
• Includes mounting bracket and abutment clips for secure installation
• Single piston design with 57mm bore diameter
• Bleeder screw included with M8x1.25 thread size
• Banjo and open inlet fitting types with M10x1.0 thread diameter
• Gray finish for corrosion resistance

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This product line includes essential components such as the mounting bracket and abutment clips, but excludes pads and mounting hardware, allowing for customization based on specific vehicle needs. The 141.45085 caliper features a floating design with a single steel piston measuring 57mm in diameter, providing effective braking force while maintaining compatibility with the original brake system specifications of Mazda 3 and Volvo C30 and S40 models.

Technical Specifications and Features

• Caliper Type: Floating
• Caliper Casting Material: Cast iron
• Piston Quantity: 1
• Piston Material: Steel
• Piston Diameter: 57mm (2.244 inches)
• Inlet Thread Diameter: M10x1.0
• Bleeder Screw Thread Diameter: M8x1.25
• Inlet Fitting Type: Banjo and Open
• Caliper Color: Gray
• Includes Bleeder Screw, Mounting Bracket, and Abutment Clips
• Pad Wear Sensor: Not included
• Pads: Not included
• Mounting Hardware: Not included

Applications and Problem Solving

This Centric disc brake caliper is designed to address common braking system issues on compatible Mazda and Volvo vehicles. It is suitable for:

• Replacing worn or damaged calipers to restore braking efficiency
• Resolving brake fluid leaks from faulty caliper seals
• Correcting uneven brake pad wear caused by caliper malfunction
• Improving brake pedal feel and response
• Maintaining proper brake system alignment with included mounting bracket

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.45085, ensure the following:

• Use the included mounting bracket and abutment clips for proper fitment
• Bleed the brake system thoroughly using the included bleeder screw to remove air
• Verify inlet fitting compatibility with the vehicle’s brake line (M10x1.0 thread)
• Replace brake pads separately as they are not included with this caliper
• Check for proper piston movement and caliper alignment before finalizing installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for durability and performance. The 141.45085 caliper undergoes rigorous quality control to ensure reliable operation on Mazda 3 and Volvo C30, S40 vehicles. Warranty coverage details should be confirmed with the product documentation or manufacturer.
