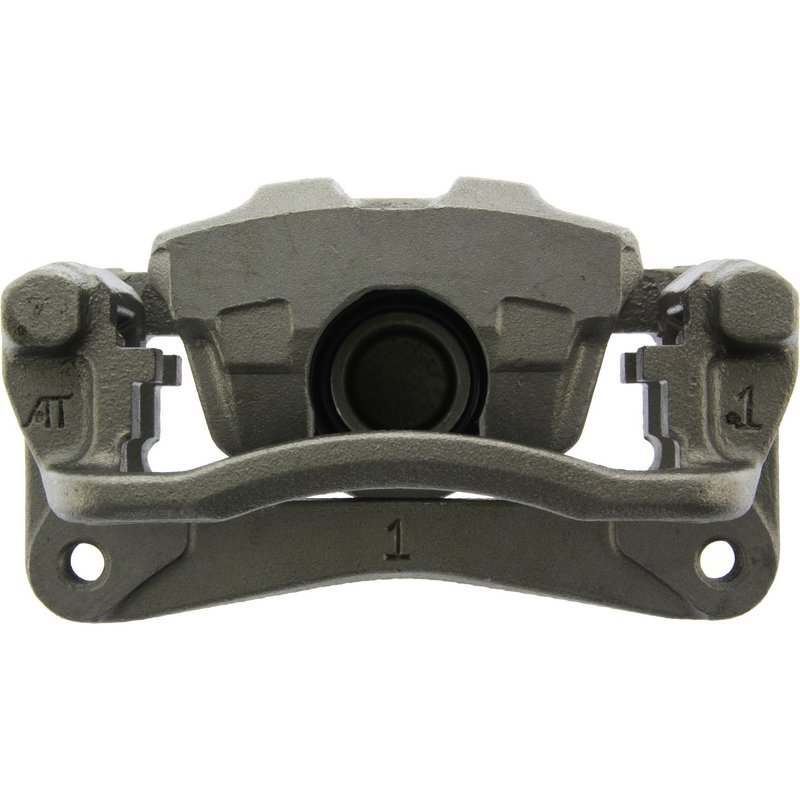

Centric 141.46522 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.46522

The Centric Premium Semi-Loaded Disc Brake Caliper 141.46522 is engineered for reliable braking performance on select Dodge and Mitsubishi vehicles. Designed as a floating caliper with a single steel piston, this component offers consistent stopping power for models like the Dodge 3000GT, Mitsubishi Diamante, and Mitsubishi Stealth.

• Caliper type: Floating with 1 steel piston
• Caliper casting material: Durable cast iron construction
• Piston diameter: 38 mm (1.496 inches)
• Inlet fitting: Banjo type with M10x1.0 thread size
• Bleeder screw included with M7x1.0 thread size
• Caliper color: Gray finish
• Includes abutment clips and mounting bracket
• Pad wear sensor not included
• Compatible with Dodge 3000GT, Mitsubishi Diamante, and Mitsubishi Stealth

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides a balance between fully loaded and basic caliper assemblies. This semi-loaded design includes essential components such as the mounting bracket and abutment clips, allowing for easier installation while giving flexibility to use existing brake pads and hardware. The 141.46522 caliper benefits from this approach, offering a reliable replacement option for specific Dodge and Mitsubishi models without unnecessary extras.

Product Details and Specifications

This disc brake caliper features a cast iron body for strength and heat resistance, paired with a single steel piston measuring 38 mm in diameter to ensure effective hydraulic pressure application. The floating caliper design allows for self-alignment during braking, reducing uneven pad wear. The inlet fitting uses a banjo style with an M10x1.0 thread, compatible with standard brake lines on the specified vehicles. A bleeder screw with M7x1.0 thread is included to facilitate proper brake fluid bleeding during maintenance. The gray finish provides corrosion resistance and a clean appearance.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Dodge 3000GT, Mitsubishi Diamante, and Mitsubishi Stealth
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leaks from faulty piston seals or caliper body
• Improves braking response when original caliper piston is seized or sticking
• Supports brake system maintenance requiring caliper replacement without new pads

Installation Notes and Tips

Ensure the mounting bracket is properly installed as it is required for this caliper. Since mounting hardware and brake pads are not included, reuse existing components or acquire replacements separately. Verify the inlet fitting thread size (M10x1.0) matches your brake line fittings. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and maintain optimal brake performance.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron construction and steel piston materials provide durability under normal operating conditions. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or supplier for exact warranty terms.
