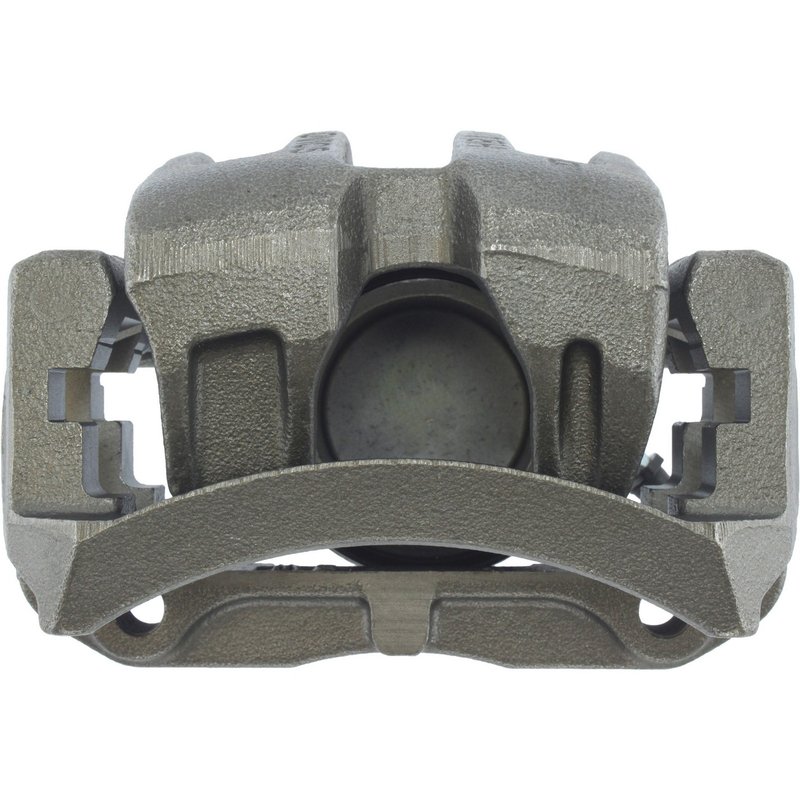

Centric 141.48127 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.48127

The Centric Premium Semi-Loaded Disc Brake Caliper 141.48127 is designed specifically for Suzuki XL-7 models, providing reliable braking performance. This floating caliper features a cast iron construction and includes essential mounting components for a straightforward installation.

• Compatible with Suzuki XL-7 vehicles
• Part number: 141.48127
• Cast iron caliper casting for durability
• Single steel piston with 60mm diameter
• Includes mounting bracket and abutment clips
• Bleeder screw and bracket included for maintenance
• Floating caliper type with trailing axle configuration
• Inlet fitting type: Banjo and open with M10x1.0 thread size

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded design includes the caliper body, piston, mounting bracket, abutment clips, and bleeder screw, but excludes brake pads and mounting hardware. This approach allows for easier replacement and customization while maintaining quality and fitment standards for vehicles like the Suzuki XL-7.

Technical Specifications and Features

This Centric caliper features a single 60mm steel piston housed in a durable cast iron body, ensuring consistent braking force. The floating caliper design allows for smooth movement and even pad wear. The inlet thread diameter is M10x1.0 with a banjo and open fitting type, compatible with standard brake lines. The caliper comes painted gray and includes a bleeder screw with M8x1.0 thread size for easy brake fluid bleeding. Abutment clips and mounting bracket are included, though mounting hardware and brake pads are not part of this assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Suzuki XL-7
• Addresses uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leaks from faulty piston seals
• Improves braking response by restoring proper caliper function
• Suitable for trailing axle brake system repairs

Installation Notes and Tips

Ensure compatibility with Suzuki XL-7 before installation. The caliper includes the mounting bracket and abutment clips but does not come with mounting bolts or brake pads, so these must be sourced separately. Properly torque mounting bolts to manufacturer specifications. Bleed the brake system thoroughly after installation using the included bleeder screw to remove air and ensure optimal brake performance.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston provide durability and resistance to wear. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship.
