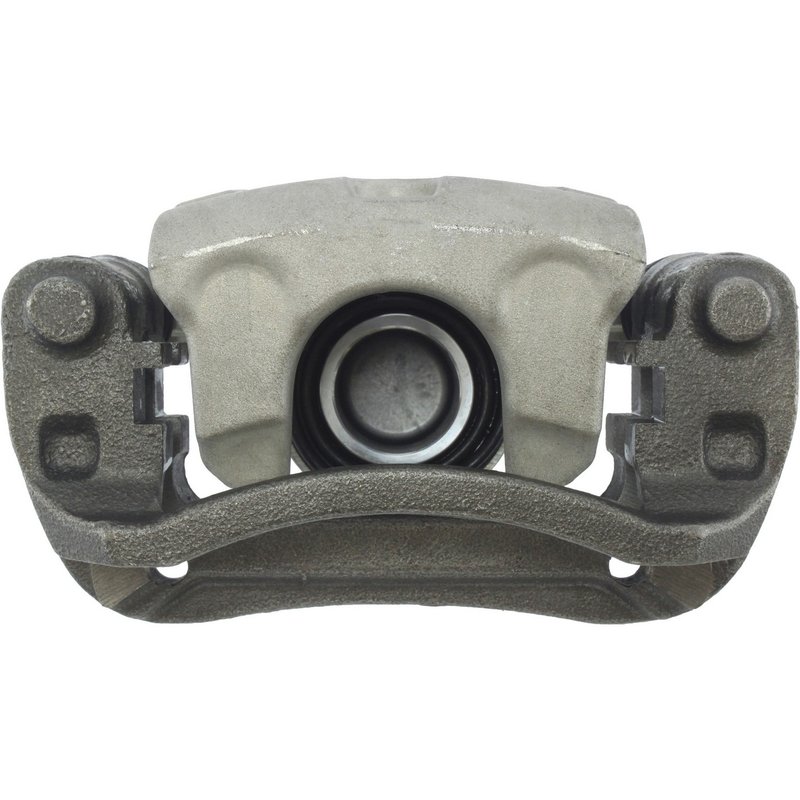

Centric 141.50614 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper

The Centric Premium Semi-Loaded Disc Brake Caliper 141.50614 is engineered for reliable braking performance on Kia Rondo models. Designed as a floating caliper with a single aluminum piston, this part offers a balance of durability and efficient heat dissipation.

• Compatible with Kia Rondo vehicles
• Part number 141.50614 for precise identification
• Constructed from lightweight aluminum casting material
• Includes mounting bracket and abutment clips for installation
• Equipped with bleeder screw (M10x1.0 thread size) for brake fluid maintenance
• Floating caliper design with one piston (38mm diameter)
• Banjo and open inlet fitting types with M10-1.00 thread size

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include essential components such as mounting brackets and abutment clips, streamlining the installation process. This product line focuses on delivering reliable braking components with quality materials like aluminum pistons and castings, suitable for various vehicle applications including the Kia Rondo.

Detailed Product Description

This Centric disc brake caliper features a floating design with a single aluminum piston measuring 38mm in diameter, which helps reduce weight and improve heat management during braking. The caliper casting is made from aluminum, contributing to corrosion resistance and durability. It comes with a mounting bracket and abutment clips included, although mounting hardware and brake pads are not part of this assembly. The inlet fitting supports both banjo and open types with a 10mm (M10x1.0) thread diameter, compatible with standard brake lines. Additionally, the caliper includes a bleeder screw with matching thread size for proper brake fluid bleeding and maintenance.

Common Applications and Issues Addressed

• Replacement for worn or damaged disc brake calipers on Kia Rondo
• Resolves uneven brake pad wear due to caliper malfunction
• Addresses brake fluid leakage by providing a new bleeder screw and sealing surfaces
• Improves braking response by restoring proper piston movement
• Eliminates noise or sticking caused by corroded or seized calipers

Installation Notes and Tips

• Ensure compatibility with Kia Rondo model year before installation
• Use appropriate brake fluid and bleed brakes thoroughly after installation
• Verify that mounting bracket and abutment clips are securely fastened
• Check inlet fitting type and thread size to match existing brake lines
• Replace brake pads separately as they are not included with this caliper

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications, using high-quality aluminum materials for pistons and castings. This part number 141.50614 undergoes rigorous quality control to ensure reliable performance and durability. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
