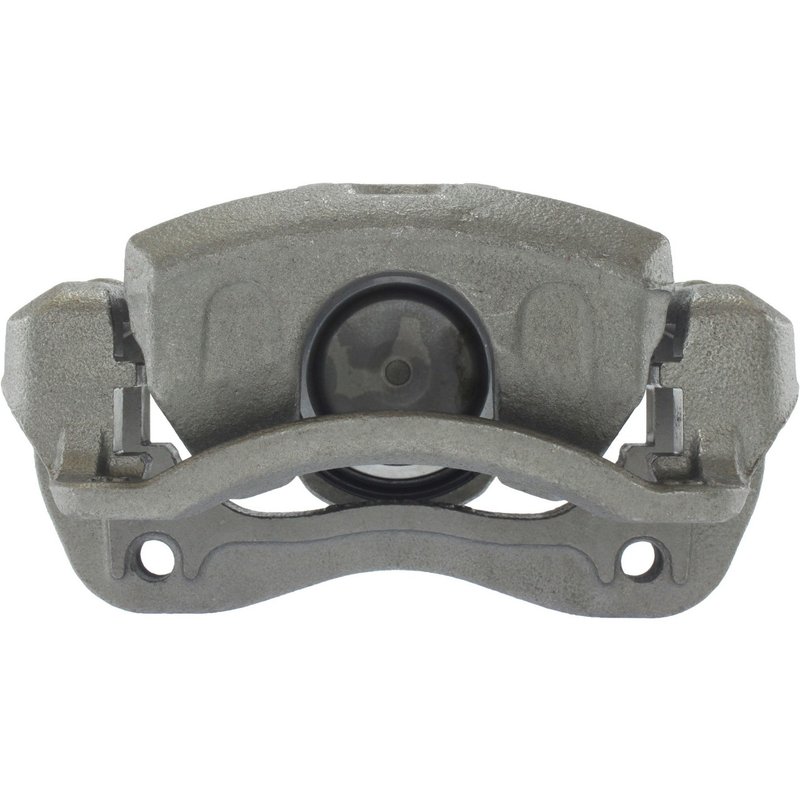

Centric 141.51006 Disc Brake Caliper - Front Left or Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.51006

The Centric Premium Semi-Loaded Disc Brake Caliper 141.51006 is designed specifically for Hyundai Elantra and Elantra Coupe models. This floating caliper features a durable cast iron construction and includes essential components such as abutment clips, mounting bracket, and bleeder screw for reliable brake performance.

• Compatible with Hyundai Elantra and Elantra Coupe
• Cast iron caliper casting material for strength and durability
• Single steel piston with 57mm diameter for consistent braking force
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper type with trailing axle configuration
• Banjo and open inlet fitting types with M10x1.0 thread size
• Gray caliper color with casting number BC140189

Detailed Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper 141.51006 is engineered to meet the braking demands of Hyundai Elantra and Elantra Coupe vehicles. The caliper uses a single 57mm steel piston housed in a cast iron body, providing reliable and consistent braking pressure. The floating caliper design allows for smooth pad movement and even wear. It includes a mounting bracket and abutment clips to ensure proper installation and alignment. The bleeder screw with M10x1.0 thread size is included to facilitate brake fluid bleeding and maintenance. The inlet fitting supports both banjo and open types, also with M10x1.0 thread diameter, allowing compatibility with standard brake lines.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers product line offers a balance between fully loaded and basic caliper assemblies. These semi-loaded calipers come with critical hardware such as mounting brackets, abutment clips, and bleeder screws included, but do not include brake pads or mounting bolts. This approach provides flexibility for professional installers and DIY mechanics who may want to reuse existing pads or hardware. The 141.51006 model exemplifies this by including necessary components for installation while allowing customization based on vehicle needs.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Hyundai Elantra and Elantra Coupe
• Resolves issues with uneven brake pad wear due to caliper malfunction
• Addresses brake fluid leaks from faulty bleeder screws or piston seals
• Improves braking response by restoring proper piston movement
• Corrects caliper mounting problems with included bracket and abutment clips

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.51006, ensure the mounting bracket and abutment clips are properly secured to avoid brake noise or uneven pad wear. Use the included bleeder screw to purge air from the brake system after installation. Verify the inlet fitting type matches your vehicle’s brake line connection, either banjo or open style, both with M10x1.0 thread size. Note that brake pads and mounting bolts are not included and should be sourced separately if needed.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron caliper body and steel piston materials ensure durability under normal operating conditions. This part number 141.51006 is backed by Centric’s quality standards, providing confidence in performance and reliability. Please consult Centric’s warranty policy for specific coverage details.
