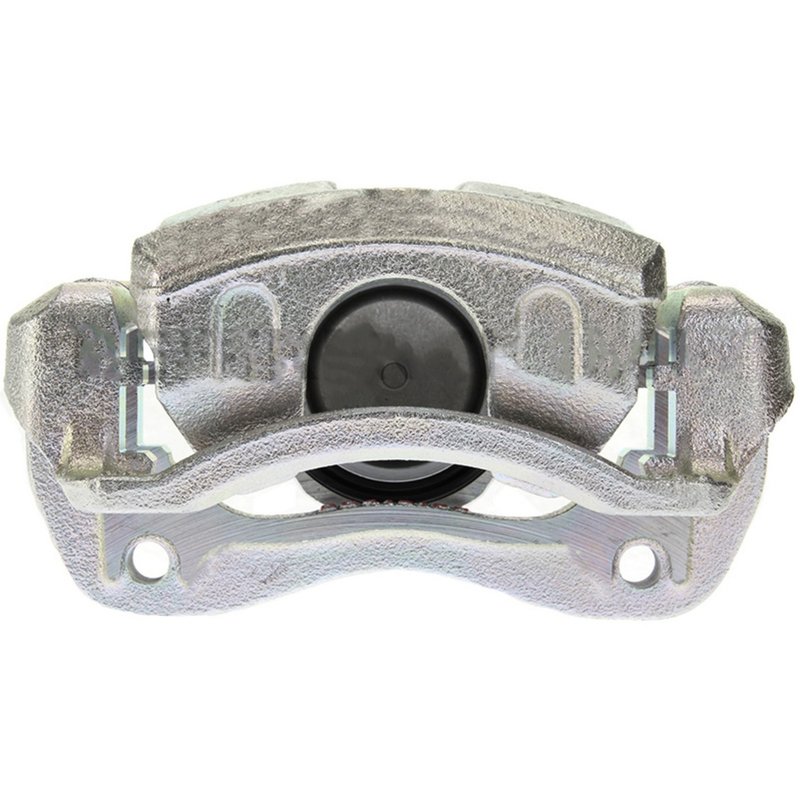

Centric 141.51028 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.51028

The Centric Premium Semi-Loaded Disc Brake Caliper 141.51028 is designed specifically for Hyundai Elantra models, providing reliable braking performance. This floating caliper features a cast iron construction and includes essential components for a semi-loaded replacement.

• Compatible with Hyundai Elantra vehicles
• Part number: 141.51028
• Cast iron caliper body and casting material for durability
• Single steel piston with 57mm diameter
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper type with banjo-style inlet fitting
• Gray caliper color with M10x1.0 inlet and bleeder screw threads

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between full caliper assemblies and basic caliper replacements by including key components such as mounting brackets, abutment clips, and bleeder screws. This approach simplifies installation while allowing reuse of existing pads and hardware when appropriate. The 141.51028 caliper fits within this line, providing a semi-loaded solution tailored for Hyundai Elantra brake hydraulics.

Technical Details and Features

This disc brake caliper features a robust cast iron construction for both the caliper body and casting, ensuring strength and heat resistance. The floating caliper design uses a single steel piston with a diameter of 57mm, optimized for leading axle applications. The inlet fitting is a banjo type with an M10x1.0 thread size, matching the Hyundai Elantra’s brake line specifications. Included components such as the mounting bracket, abutment clips, and bleeder screw facilitate a straightforward installation process. Note that this caliper does not include brake pads or mounting hardware, and it does not have a pad wear sensor.

Common Applications and Problem Solving

• Replacement for worn or damaged front disc brake calipers on Hyundai Elantra
• Addressing brake fluid leaks from caliper piston seals
• Resolving uneven brake pad wear due to caliper malfunction
• Fixing sticking or seized caliper pistons affecting braking performance
• Upgrading to a semi-loaded caliper assembly for easier maintenance

Installation Notes and Tips

• Ensure compatibility with Hyundai Elantra model year and brake system specifications
• Reuse existing brake pads and mounting hardware if in good condition
• Bleed brake system thoroughly after installation to remove air
• Verify inlet and bleeder screw thread sizes (M10x1.0) before installation
• Check caliper mounting bracket and abutment clips for proper fit and alignment

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The 141.51028 caliper undergoes rigorous quality control to ensure durability and reliable braking performance. While specific warranty details are not provided here, Centric products typically include a limited warranty against defects in materials and workmanship.
