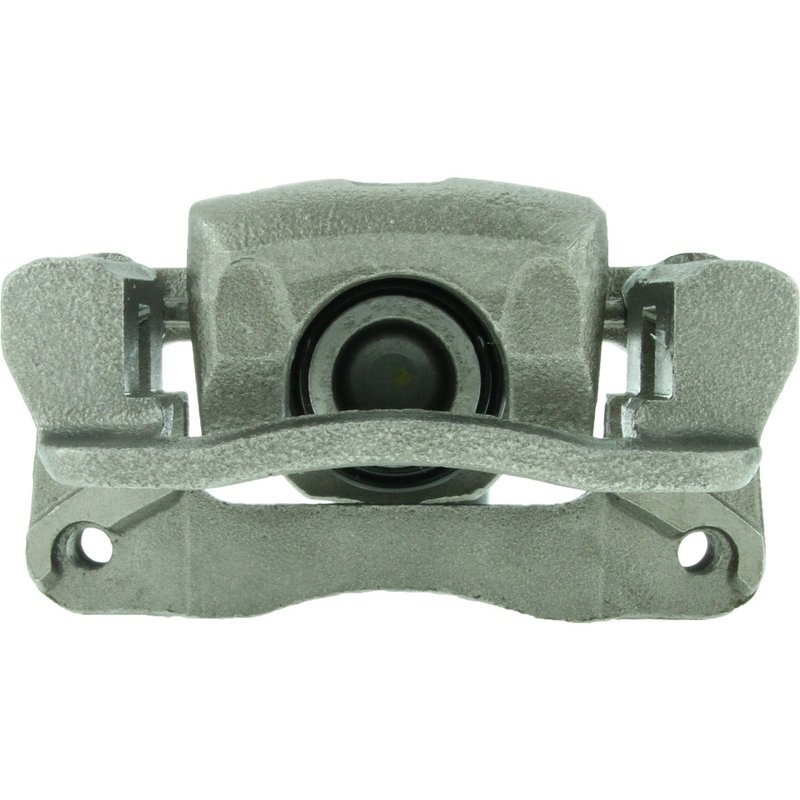

Centric 141.51612 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.51612

The Centric Premium Semi-Loaded Disc Brake Caliper 141.51612 is designed specifically for Hyundai Santa Fe models, providing reliable braking performance. This floating caliper features a cast iron construction and includes essential mounting components for a straightforward installation.

• Compatible with Hyundai Santa Fe vehicles
• Part number: 141.51612
• Cast iron caliper casting material for durability
• Single steel piston with 38mm diameter
• Includes mounting bracket and abutment clips
• Bleeder screw included with M10x1.0 thread size
• Floating caliper type with banjo and open inlet fitting

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include key components such as mounting brackets, abutment clips, and bleeder screws. This product line is engineered to reduce installation time and ensure compatibility with specific vehicle models like the Hyundai Santa Fe. The semi-loaded design means pads and mounting hardware are not included, allowing for customization based on user preference or existing parts.

Technical Specifications and Features

This disc brake caliper features a durable cast iron body with a single steel piston measuring 38mm in diameter, providing consistent braking force. The floating caliper design allows for self-alignment during braking, improving pad wear and performance. The inlet thread size is M10x1.0 with a banjo and open fitting type, compatible with standard brake lines. The caliper comes in a gray finish and includes a bleeder screw with matching thread size for easy brake fluid maintenance.

Applications and Problem Solving

• Replacement for worn or damaged front or rear brake calipers on Hyundai Santa Fe
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a new bleeder screw and sealing surfaces
• Improves braking response by restoring proper piston movement
• Supports brake system maintenance and upgrades with included mounting bracket and clips

Installation Notes and Tips

• Ensure compatibility with Hyundai Santa Fe model year before installation
• Use appropriate brake pads as they are not included with this caliper
• Mounting hardware bolts are not included; reuse existing bolts or purchase separately
• Bleed brake system thoroughly after installation to remove air
• Inspect brake lines and fittings for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications, ensuring reliable performance and safety. The caliper casting material and piston are designed for durability under normal operating conditions. This product includes a bleeder screw and mounting bracket to facilitate proper installation. Warranty details should be confirmed with the product supplier or manufacturer.
