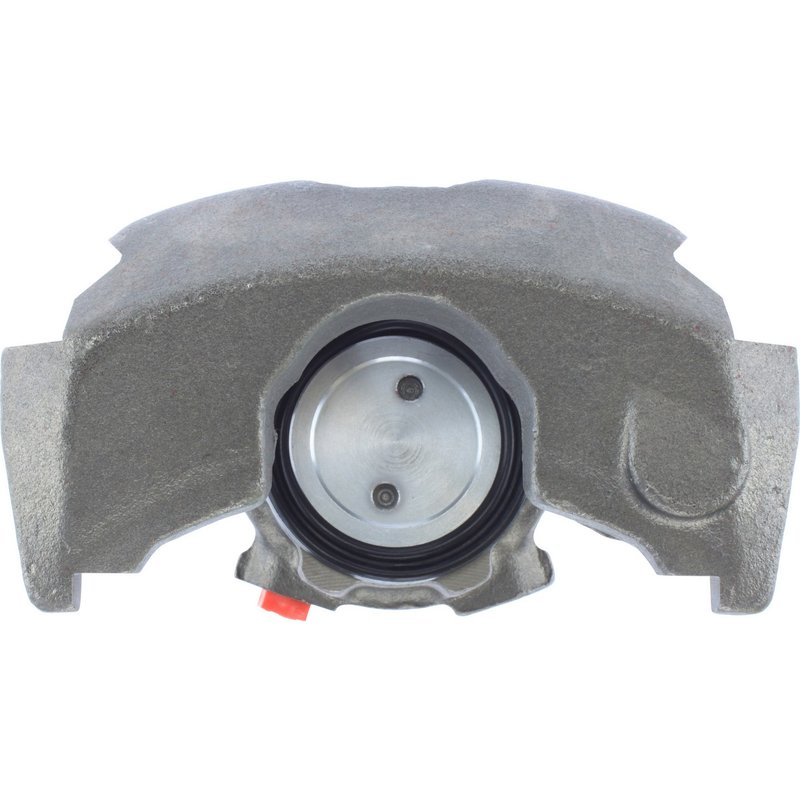

Centric 141.61506 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.61506

The Centric Premium Semi-Loaded Disc Brake Caliper 141.61506 is engineered for reliable braking performance on Lincoln Monarch and Mercury Versailles vehicles. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Lincoln Monarch and Mercury Versailles models
• Cast iron caliper construction for strength and heat resistance
• Single 54mm steel piston for effective braking force
• Includes abutment clips and bleeder screw for maintenance ease
• Banjo-type open inlet fitting with 7/16"-24 thread size
• Gray finish with trailing axle configuration

Product Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a cast iron body that provides durability and heat dissipation essential for braking systems. The floating caliper design allows for smooth pad movement and even wear. It includes a single piston with a diameter of 54mm (2.126 inches) made from steel, ensuring consistent pressure on the brake pads. The caliper is equipped with a bleeder screw (3/8"-24 thread size) to facilitate brake fluid bleeding during installation or maintenance. The inlet fitting is a banjo type with a 7/16"-24 thread, compatible with standard brake lines. Abutment clips are included to secure the brake pads properly, although mounting hardware and brake pads are not included with this part.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. These semi-loaded calipers come with essential components such as abutment clips and bleeder screws, reducing the need for additional parts while allowing flexibility for custom brake pad choices. This product line is designed to meet OE specifications for fit, form, and function, making it suitable for vehicles like the Lincoln Monarch and Mercury Versailles that require precise braking components.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Lincoln Monarch and Mercury Versailles
• Addresses uneven brake pad wear due to caliper sticking or malfunction
• Resolves brake fluid leakage issues by providing a new bleeder screw and piston seal
• Improves braking response and safety by restoring proper caliper function
• Suitable for trailing axle brake system configurations

Installation Notes and Tips

• Ensure compatibility with Lincoln Monarch and Mercury Versailles before installation
• Use proper brake fluid and bleed the system thoroughly using the included bleeder screw
• Check and replace brake pads separately as they are not included
• Verify inlet fitting thread size (7/16"-24) matches existing brake lines
• Inspect mounting points; mounting hardware and brackets are not included

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for durability and performance. The cast iron construction and steel piston materials ensure long service life under normal operating conditions. This part number 141.61506 is backed by Centric’s quality control processes, although specific warranty details should be confirmed with the parts provider or manufacturer documentation.
