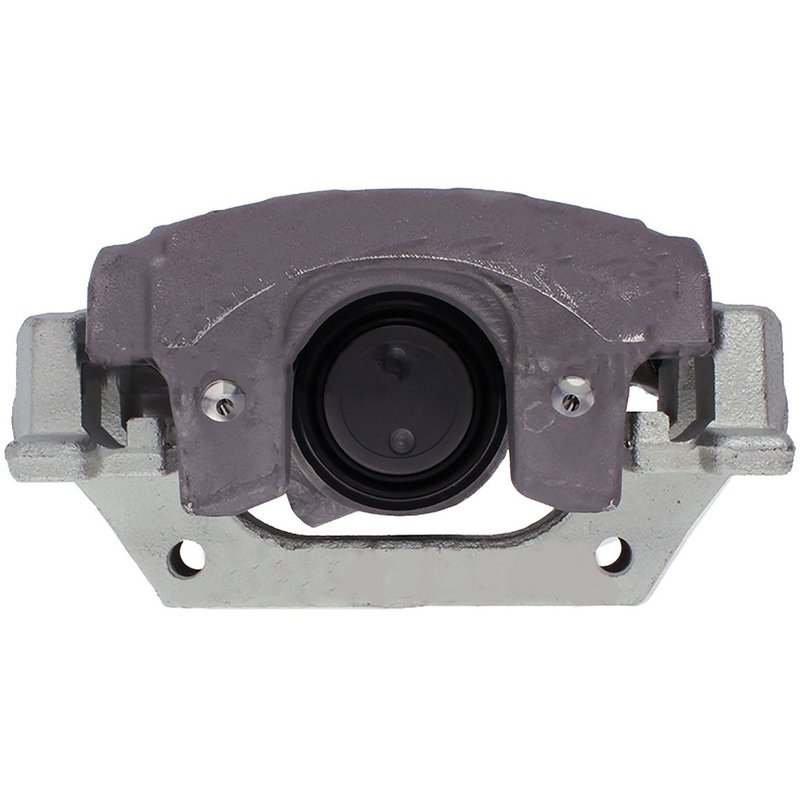

Centric 141.61566 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.61566

The Centric Premium Semi-Loaded Disc Brake Caliper 141.61566 is engineered for reliable braking performance on Ford C-Max and Escape models. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Ford C-Max and Escape vehicles
• Caliper casting made from lightweight aluminum
• Single 38mm steel piston for effective braking force
• Includes mounting bracket and abutment clips for installation
• Bleeder screw and banjo-type inlet fitting included
• Gray finish with leading axle position design

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded design includes essential hardware such as mounting brackets, abutment clips, and bleeder screws, but excludes brake pads and mounting hardware. This approach provides flexibility for technicians who prefer to reuse existing pads or hardware while upgrading the caliper itself. The 141.61566 model exemplifies this with its aluminum casting and steel piston, optimized for Ford brake hydraulics systems.

Technical Specifications and Features

This disc brake caliper features a floating design with a single piston measuring 38mm in diameter, constructed from steel for strength and heat resistance. The caliper body and casting are made from aluminum, reducing unsprung weight and improving heat dissipation. The inlet fitting uses a banjo style with an M10x1.0 thread size, matching OEM specifications for Ford C-Max and Escape models. The included bleeder screw also features an M10x1.0 thread, facilitating proper brake fluid bleeding during installation. The caliper is finished in gray and designed for the leading axle position, ensuring correct fitment and function.

Common Applications and Problem Resolution

• Replacement for worn or leaking disc brake calipers on Ford C-Max and Escape
• Addresses uneven brake pad wear due to caliper piston issues
• Resolves brake fluid leaks from damaged or corroded caliper bodies
• Improves brake pedal feel by restoring proper caliper function
• Suitable for vehicles requiring a semi-loaded caliper assembly upgrade

Installation Notes and Tips

Installation of the Centric Premium Semi-Loaded Disc Brake Caliper 141.61566 requires attention to proper torque specifications for mounting brackets and bleeder screws. Since brake pads and mounting hardware are not included, ensure compatibility with existing components or source replacements separately. Bleeding the brake system thoroughly after installation is critical to remove air and maintain braking performance. The included abutment clips should be installed to prevent pad movement and noise.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The aluminum casting and steel piston materials are selected for durability and corrosion resistance. This part number 141.61566 is backed by Centric’s quality control processes, although specific warranty details should be confirmed with the distributor or installer.
