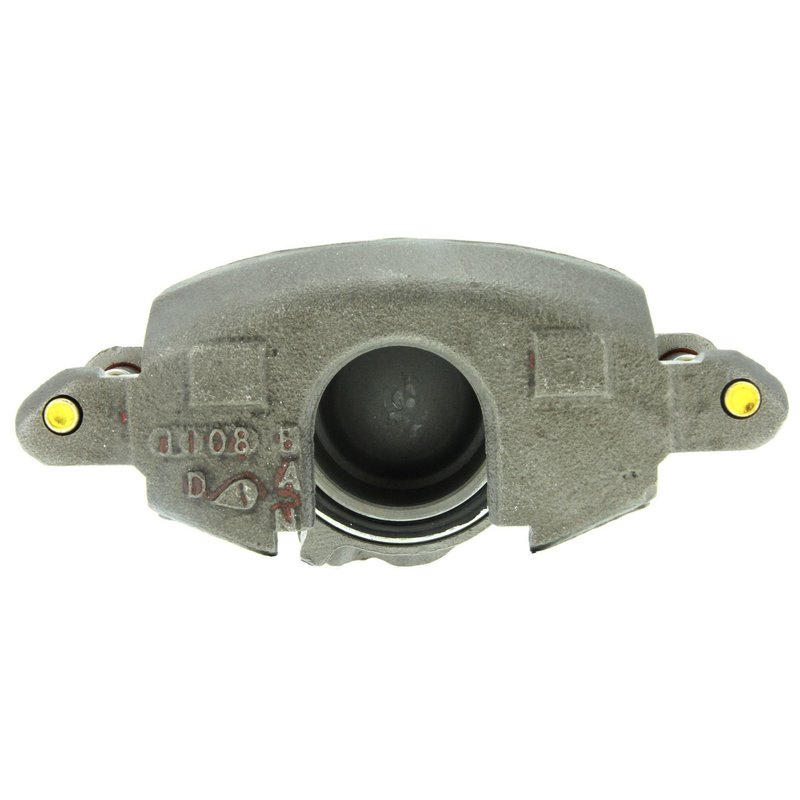

Centric 141.62046 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.62046

The Centric Premium Semi-Loaded Disc Brake Caliper 141.62046 is engineered for reliable braking performance on select GM vehicles. Designed as a floating caliper with a single steel piston, it offers durable cast iron construction and precise fitment for models like Chevrolet Blazer, Cadillac Fleetwood, and GMC Jimmy.

• Compatible with Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models
• Single-piston floating disc brake caliper design
• Cast iron caliper body for strength and heat resistance
• Includes bleeder screw and abutment clips for installation
• Banjo-type inlet fitting with 7/16"-20 thread size
• Gray caliper finish with 2.953" (75mm) piston diameter
• Does not include brake pads, mounting hardware, or mounting bracket

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include essential components such as bleeder screws and abutment clips, but exclude pads and mounting hardware. This approach allows for easier installation and customization while maintaining OEM-quality materials and specifications. The 141.62046 caliper exemplifies this line’s focus on durability and compatibility with a range of GM vehicles.

Technical Specifications and Features

This floating disc brake caliper features a cast iron body and a single steel piston measuring 75mm in diameter, designed to deliver consistent braking force. The inlet fitting uses a banjo style with a 7/16"-20 thread diameter, and the bleeder screw thread size is 3/8"-24, included for proper brake fluid bleeding. The caliper’s gray finish provides corrosion resistance, while the included abutment clips ensure proper pad alignment. Note that brake pads, mounting hardware, and brackets are not included, so these components must be sourced separately.

Compatible Vehicles and Applications

• Buick LeSabre, Riviera, and Electra models
• Cadillac Fleetwood, DeVille, and Eldorado
• Chevrolet Blazer, C10, Caprice, and Impala
• GMC Jimmy, K5 Blazer, and Suburban series
• Oldsmobile Delta 88 and Pontiac Bonneville

Common Issues Addressed by This Caliper

• Worn or leaking original calipers causing brake fluid loss
• Uneven brake pad wear due to caliper piston malfunction
• Reduced braking efficiency from corroded or damaged caliper bodies
• Brake noise or vibration linked to faulty abutment clips or caliper movement
• Difficulty maintaining proper brake fluid pressure due to bleeder screw issues

Installation Notes and Tips

• Ensure compatibility with your specific make and model before installation
• Use new brake pads and mounting hardware as these are not included
• Properly torque inlet fitting and bleeder screw to manufacturer specifications
• Bleed brake system thoroughly after installation to remove air
• Inspect caliper mounting points and brackets for wear or damage

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards, using cast iron and steel materials for durability and performance. The 141.62046 caliper includes a bleeder screw and abutment clips to facilitate installation and maintenance. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship.
