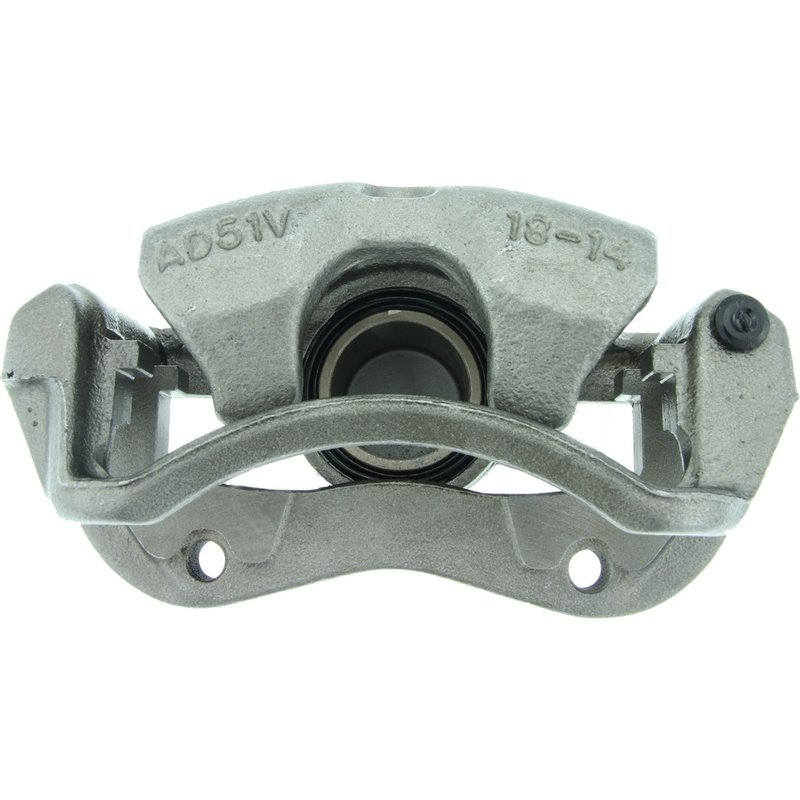

Centric 141.62109 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.62109

The Centric Premium Semi-Loaded Disc Brake Caliper 141.62109 is engineered for reliable braking performance on Saturn vehicles including SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. Designed as a floating caliper with a single steel piston, this component offers durable cast iron construction and essential hardware for effective brake system maintenance.

• Compatible with Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models
• Caliper type: Floating with 1 steel piston
• Caliper casting material: Cast iron for strength and durability
• Includes abutment clips, mounting bracket, and bleeder screw
• Inlet fitting type: Banjo with M10x1.5 thread size
• Piston diameter: 50.8 mm (2.000 inches)
• Brake hardware included except mounting bracket bolts and pads
• Caliper color: Gray

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include key components such as abutment clips, mounting brackets, and bleeder screws. This setup simplifies installation while ensuring compatibility and performance for specific vehicle applications. The 141.62109 caliper is part of this line, offering a balance between ease of installation and component completeness for Saturn brake hydraulics.

Technical Description and Features

This disc brake caliper features a floating design with a single steel piston measuring 50.8 mm in diameter, housed in a cast iron body for enhanced durability. The inlet fitting uses a banjo style with an M10x1.5 thread diameter, and the bleeder screw thread size is M10x1.0, both included for proper brake fluid management. The caliper comes in a gray finish and includes necessary mounting brackets and abutment clips, though brake pads and mounting bracket bolts are not included. The caliper meets Friction Materials Standards Institute pad number 10x.05070, ensuring compatibility with standard brake pads for Saturn models listed.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Saturn SC, SL, and SW series
• Addresses brake fluid leakage issues by including bleeder screw and proper inlet fittings
• Resolves uneven brake pad wear due to caliper piston or bracket failure
• Improves braking response by restoring proper caliper function
• Supports brake system maintenance where mounting bracket replacement is required

Installation Notes and Tips

• Ensure compatibility with Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models before installation
• Brake pads and mounting bracket bolts are not included; source separately as needed
• Use proper torque specifications for mounting bracket and caliper bolts
• Bleed brake system thoroughly after installation to remove air and ensure optimal performance
• Inspect brake lines and hardware for wear during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The 141.62109 caliper undergoes rigorous quality control to ensure durability and reliable braking performance. While specific warranty details are not provided here, Centric products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
