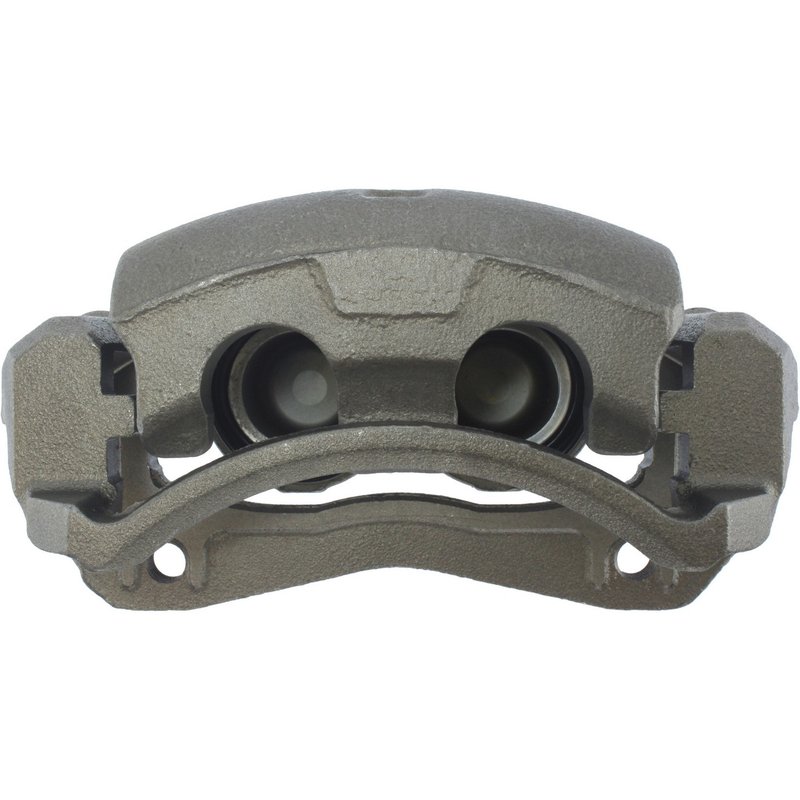

Centric 141.62170 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.62170

The Centric Premium Semi-Loaded Disc Brake Caliper 141.62170 is engineered for reliable braking performance on select Chevrolet, Pontiac, Saturn, and Suzuki models. Designed as a floating caliper with two steel pistons, it offers consistent stopping power for vehicles like the Chevrolet Equinox and Pontiac Torrent.

• Compatible with Chevrolet Captiva Sport, Equinox, Pontiac Torrent, Saturn Vue, and Suzuki XL-7
• Part number 141.62170 for precise identification
• Cast iron caliper construction for durability
• Two steel pistons with 45mm bore size for balanced braking force
• Includes mounting bracket and abutment clips for installation
• Banjo-type inlet fitting with M10x1.5 thread size
• Bleeder screw included with M10x1.0 thread size for easy maintenance
• Gray caliper color with floating caliper design

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a semi-assembled solution that simplifies brake system repairs. This product line includes calipers that come with essential components such as mounting brackets and abutment clips, reducing the need for additional parts during installation. The 141.62170 caliper features a cast iron body and two steel pistons, ensuring strength and heat resistance under braking conditions. Its floating caliper design allows for self-alignment with the brake rotor, which helps maintain even pad wear and consistent braking performance.

Product Features and Specifications

This disc brake caliper does not include brake pads or pad wear sensors, so these components must be sourced separately. The inlet fitting uses a banjo style with a 10mm thread diameter (M10x1.5), compatible with standard brake lines on the specified vehicles. The caliper’s bleeder screw, included for brake fluid bleeding, has a 10mm thread diameter (M10x1.0). The piston diameter measures 45mm, providing adequate clamping force for the brake pads. The caliper comes in a gray finish and includes the necessary mounting bracket and abutment clips, though mounting hardware bolts are not included.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Chevrolet Equinox and Pontiac Torrent
• Restores proper brake function on Saturn Vue and Suzuki XL-7 models
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Solves brake fluid leakage problems related to caliper piston seals
• Improves braking response when original caliper pistons are corroded or stuck

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Brake pads and pad wear sensors must be installed separately
• Use proper torque specifications for mounting bracket bolts (not included)
• Bleed brake system thoroughly after installation to remove air
• Inspect brake lines and fittings for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron caliper body and steel pistons provide durability and resistance to heat and corrosion. This product includes a bleeder screw and mounting bracket to facilitate installation. Warranty coverage details should be confirmed with the supplier or manufacturer, as they may vary by region.
