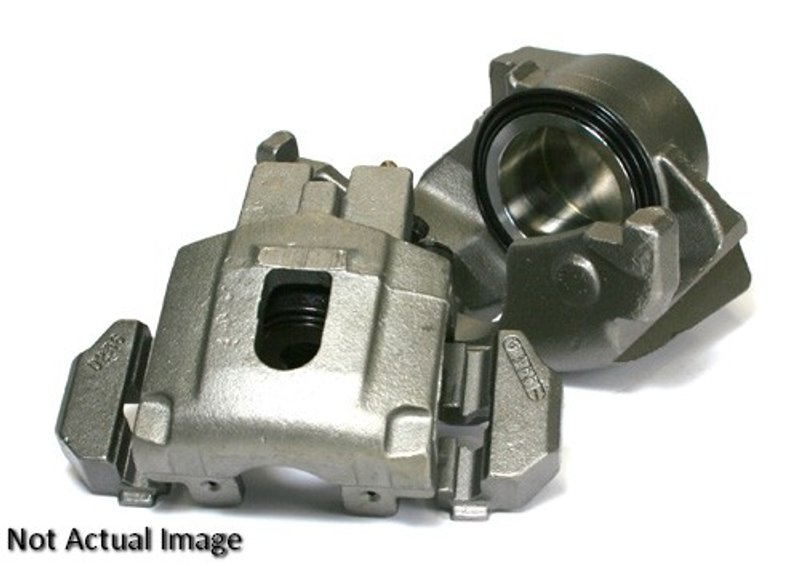

Centric 141.62210 Disc Brake Caliper - Front Left or Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.62210

The Centric Premium Semi-Loaded Disc Brake Caliper 141.62210 is engineered for reliable braking performance on select Cadillac and Chevrolet models. Designed as a fixed caliper with four pistons, it offers consistent stopping power for vehicles like the Cadillac ATS, CTS, CT6, and Chevrolet Camaro and Corvette.

• Fixed type disc brake caliper with 4 aluminum pistons
• Caliper and piston made from durable aluminum casting
• Includes bleeder screw and abutment clips for installation
• Compatible inlet and bleeder screw thread size M10-1.00
• Banjo type inlet fitting for brake line connection
• Gray caliper color with casting numbers A9480101 and A9490100
• Designed for trailing axle position

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include key components such as pistons and seals but exclude pads and mounting hardware. This approach allows for easier installation and maintenance while ensuring compatibility with original equipment specifications. The 141.62210 caliper benefits from this semi-loaded design, offering a balance between convenience and customization for professional brake servicing on Cadillac and Chevrolet vehicles.

Technical Specifications and Features

This disc brake caliper features a fixed design with four pistons, each measuring 42 mm in diameter, constructed from aluminum for reduced weight and corrosion resistance. The caliper body is also aluminum cast, contributing to heat dissipation and durability. The inlet thread diameter and bleeder screw thread size are both M10-1.00, compatible with standard brake hydraulic fittings. The caliper includes a bleeder screw and abutment clips but does not come with pads or mounting hardware, allowing for tailored brake system assembly.

Applications and Problem Solving

• Replacement for worn or damaged calipers on Cadillac ATS, CTS, CT6
• Upgrading braking components on Chevrolet Camaro and Corvette
• Resolving brake fluid leaks due to faulty bleeder screws or seals
• Addressing uneven brake pad wear caused by caliper piston issues
• Improving brake response and pedal feel with a fixed 4-piston design

Installation Notes and Tips

Ensure compatibility with your vehicle’s trailing axle brake system before installation. Since mounting hardware and brake pads are not included, source OEM or compatible parts separately. Properly torque the inlet fitting and bleeder screw to M10-1.00 specifications. Bleed the brake system thoroughly after installation to remove air and ensure optimal hydraulic performance. The included abutment clips should be installed to maintain pad alignment and reduce noise.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The aluminum construction provides corrosion resistance and durability under normal operating conditions. This part number 141.62210 is backed by Centric’s quality control processes, though specific warranty details should be confirmed with the point of purchase or manufacturer documentation.
