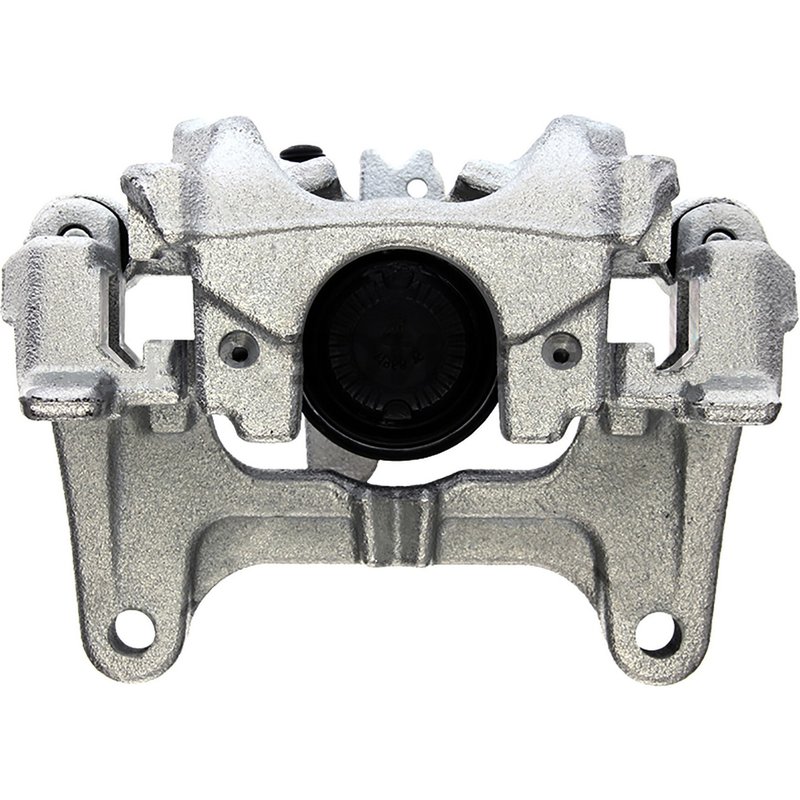

Centric 141.62663 Disc Brake Caliper - Rear Right
Overview of Centric Premium Semi-Loaded Disc Brake Caliper
The Centric Premium Semi-Loaded Disc Brake Caliper 141.62663 is engineered for reliable braking performance on Buick Envision models. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.
- Compatible with Buick Envision vehicles
- Cast iron caliper casting for strength and heat resistance
- Single 38mm steel piston for effective braking force
- Includes mounting bracket and abutment clips for installation
- Banjo-type inlet fitting with M10x1.5 thread size
- Bleeder screw included with M10x1.0 thread size for easy maintenance
- Gray caliper color with a 48.5mm body air gap
Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers
The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and basic caliper assemblies. This semi-loaded design includes essential components such as the mounting bracket, abutment clips, and bleeder screw, but excludes pads and mounting hardware. This approach allows for flexibility in brake system maintenance and replacement, providing quality cast iron construction and precise fitment for specific vehicle applications like the Buick Envision.
Technical Specifications and Features
This floating disc brake caliper features a durable cast iron body and a single steel piston with a diameter of 38mm (1.496 inches), optimized for leading axle installation. The inlet fitting uses a banjo style with an M10-1.50 thread size, compatible with standard brake lines. The included bleeder screw has an M10-1.00 thread size and 4.5 turns for proper brake fluid bleeding. The caliper comes in a gray finish and includes abutment clips and a mounting bracket, though mounting hardware and brake pads are not included.
Common Applications and Problem Solving
- Replacement for worn or damaged front disc brake calipers on Buick Envision
- Addresses brake drag or uneven pad wear caused by faulty calipers
- Resolves brake fluid leaks from caliper piston seals
- Improves brake pedal feel and responsiveness
- Restores proper brake caliper function after corrosion or mechanical failure
Installation Notes and Tips
- Ensure compatibility with Buick Envision model year before installation
- Use proper brake fluid and bleed the system thoroughly after installation
- Verify that mounting bracket and abutment clips are securely installed
- Replace brake pads and mounting hardware separately as they are not included
- Inspect brake lines and fittings for wear or damage during installation
Quality Assurance and Warranty
Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications, using cast iron for durability and steel pistons for reliable performance. This part number 141.62663 undergoes rigorous quality control to ensure fitment and function on Buick Envision vehicles. Warranty coverage details should be confirmed with the original equipment manufacturer or distributor.
| Brand | Centric |
|---|---|
| Part Number | 141.62663 |
| Position | Centric Premium Semi-Loaded Disc Brake Calipers, Rear Right |
| Abutment Clips Included | Yes |
| Axle Leading/Trailing [cntrc] | Leading |
| Bleeder Install Thread Count [cntrc] in | 4.5 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 10.000 |
| Bleeder Screw Thread Diameter | 10x1.0 |
| Bleeder Screw Thread Size | M10-1.00 |
| Body Air Gap [cntrc] | 48.5mm |
| Bore Size(s) millimeters | 38 |
| Bracket # [cntrc] | 743.62663 |
| Bracket Air Gap [cntrc] | 16.5mm |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | No |
| Bracket Required [cntrc] | Yes |
| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.61036 |
| Caliper Casting Material | Cast Iron |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | ATE |
| Caliper Type | Floating |
| Car Position [cntrc] | Right Rear |
| Casting Material | Cast Iron |
| Color | Gray |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.19230 |
| Hardware Kit# [cntrc] | 117.58003 |
| Inlet Fitting Type | Banjo |
| Inlet Thread Diameter | 10.000 |
| Inlet Thread Diameter | M10x1.5 |
| Inlet Thread Size | M10-1.50 |
| Mount Spread - Ctr2Ctr [cntrc] | 120.0mm |
| Mount Thread Size [cntrc] mm | M12-1.75 |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| New or Ramanufactured [cntrc] | Remanufactured |
| New or Remanufactured | Remanufactured |
| Notes [cntrc] | EPB spline = 6x10 |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Pads Included | No |
| Piston Diameter | 1.496 |
| Piston Diameter | 38.000 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Prod Notes [cntrc] | similar to 141.62673, taller bracket |
| Published Bore Size [cntrc] | 38 |
| Root Core# [cntrc] | 62663 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Buick | Envision | Rear Right | Centric Premium Semi-Loaded Disc Brake Calipers | |
| 2019 | Buick | Envision | Rear Right | Centric Premium Semi-Loaded Disc Brake Calipers | |
| 2018 | Buick | Envision | AWD | Rear Right | Centric Premium Semi-Loaded Disc Brake Calipers |
| 2017 | Buick | Envision | Rear Right | 315mm Rear Disc; Centric Premium Semi-Loaded Disc Brake Calipers | |
| 2016 | Buick | Envision | Rear Right | 315mm Rear Disc; Centric Premium Semi-Loaded Disc Brake Calipers |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
