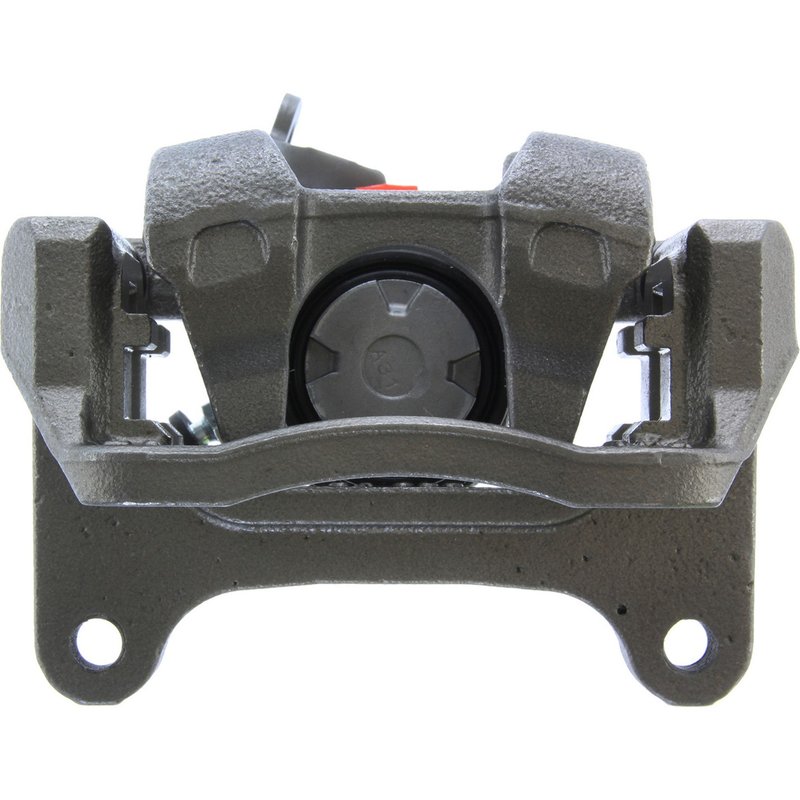

Centric 141.62669 Disc Brake Caliper - Rear Right
| Brand | Centric 141.62669 |
|---|---|
| Position | Rear Right |
| Abutment Clips Included | Yes |
| Axle Leading/Trailing [cntrc] | Leading |
| Bare Bracket Weight [cntrc] lbs | 2.30 |
| Bare Caliper Body Weight [cntrc] lbs | 3.40 |
| Bleeder Install Thread Count [cntrc] in | 4.5 |
| Bleeder Screw Included | Yes |
| Bleeder Screw Included [cntrc] | Yes |
| Bleeder Screw Thread Diameter | 10.000 |
| Bleeder Screw Thread Diameter | 10x1.0 |
| Bleeder Screw Thread Size | M10-1.00 |
| Body Air Gap [cntrc] | 47.5mm |
| Bore Size(s) millimeters | 38.5 |
| Bracket # [cntrc] | 743.62669 |
| Bracket Air Gap [cntrc] | 18.0mm |
| Bracket Included | Yes |
| Bracket Mounting Bolts Include | No |
| Bracket Required (Y/N) | Yes |
| Bracket Required [cntrc] | Yes |
| Caliper & Pad Hardware Include | Yes |
| Caliper Boot & Seal Kit# [cntrc] | 143.62062 |
| Caliper Casting Material | Cast Iron |
| Caliper Color | Gray |
| Caliper Manufacturer [cntrc] | MANDO |
| Caliper Type | Floating |
| Car Position [cntrc] | Right Rear |
| Casting Material | Cast Iron |
| Color | Gray |
| Finish | Rust Preventative |
| Finish [cntrc] | Rust Preventative |
| Friction Materials Standards Institute Pad Number | 10x.19210 |
| Hardware Kit# [cntrc] | 117.62087 |
| Inlet Fitting Type | Banjo |
| Inlet Thread Diameter | 10.000 |
| Inlet Thread Diameter | M10x1.0 |
| Inlet Thread Size | M10-1.00 |
| Mount Spread - Ctr2Ctr [cntrc] | 120.0mm |
| Mount Thread Size [cntrc] mm | M12-1.75 |
| Mounting Bracket Included | Yes |
| Mounting Hardware Included | No |
| New or Ramanufactured [cntrc] | Remanufactured |
| New or Remanufactured | Remanufactured |
| Pad Wear Sensor Included | No |
| Pads Included | No |
| Pads Included | No |
| Piston Diameter | 1.516 |
| Piston Diameter | 38.500 |
| Piston Material | Steel |
| Piston Quantity | 1 |
| Published Bore Size [cntrc] | 38.5 |
| Root Core# [cntrc] | 62669 |
| Rust Preventative Coating | Yes |
| Rust Preventative Coating [cntrc] | Yes |
| Product line | Centric Premium Semi-Loaded Disc Brake Calipers |
| Fits | Chevrolet · 5 vehicles |
Remanufactured. Delivers predictable, reliable braking with long service life.
Rust-preventative finish. Tumble-blasted and treated for a like-new look and corrosion protection.
Hardware included. Bracket and abutment clips help make installation easier.
Cross-references Centric Parts 141.62669, NTK 23016 and 13509995 for the same application. See all 6.
Centric Rear Right Brake Caliper
Restore consistent rear braking performance with this Centric Premium Semi-Loaded Disc Brake Caliper, part number 141.62669. It is a remanufactured right rear caliper for select Chevrolet Malibu models with a manual parking brake, built for predictable operation and a direct-fit replacement.
Centric 141.62669 is finished in gray with a rust preventative coating and is pressure tested and inspected before release. The floating caliper design uses a single 38.5 mm steel piston, a cast iron body, and a banjo-style inlet with M10x1.0 threads for the brake line connection.
Key Features
- Remanufactured disc brake caliper for rear right position
- Fits 2016 Chevrolet Malibu, rear right, manual parking brake
- Fits 2017-2020 Chevrolet Malibu, rear right, manual parking brake
- Centric Premium Semi-Loaded Disc Brake Calipers line
- Cast iron caliper body with steel piston
- Floating caliper design with 38.5 mm piston diameter
- Rust preventative finish in gray
- Bleeder screw included
- Mounting bracket included
- Abutment clips included
Product Details
The Centric Premium Semi-Loaded Disc Brake Calipers line focuses on remanufactured brake hydraulics that meet OE-style fitment needs while supporting dependable braking response. This 141.62669 rear right caliper is built for Chevrolet Malibu applications that use a manual parking brake, including 2016 Malibu New Model and 2017-2020 Malibu rear right configurations. The caliper is tumble blasted, treated with an anti-corrosion finish, and inspected for proper operation and fitment. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Uneven rear brake pad wear on the right side
- Brake drag caused by a sticking caliper piston
- Reduced braking response from a worn remanufactured caliper
- Corrosion on the caliper body or piston area
- Parking brake-related rear caliper replacement needs on Malibu models
Installation Notes
Verify the rear right position, manual parking brake setup, and M10x1.0 inlet and bleeder thread sizes before installation. This caliper uses a banjo inlet fitting and requires the correct bracket application for fitment. Brake pads are not included, so inspect pad condition, rotor surface, and brake fluid before completing the repair. Bleeding the hydraulic system after installation is recommended to restore proper pedal feel.
Quality Assurance
Each Centric 141.62669 caliper is 100% pressure tested and inspected to confirm operation and fitment. The remanufacturing process includes surface preparation and a rust preventative finish to help protect the caliper in service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Chevrolet | Malibu | Rear Right | Manual Parking Brake; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2019 | Chevrolet | Malibu | Rear Right | Manual Parking Brake; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2018 | Chevrolet | Malibu | Rear Right | Manual Parking Brake; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2017 | Chevrolet | Malibu | Rear Right | Manual Parking Brake; Centric Premium Semi-Loaded Disc Brake Calipers |
| 2016 | Chevrolet | Malibu | Rear Right | Manual Parking Brake; New Model; Centric Premium Semi-Loaded Disc Brake Calipers |
