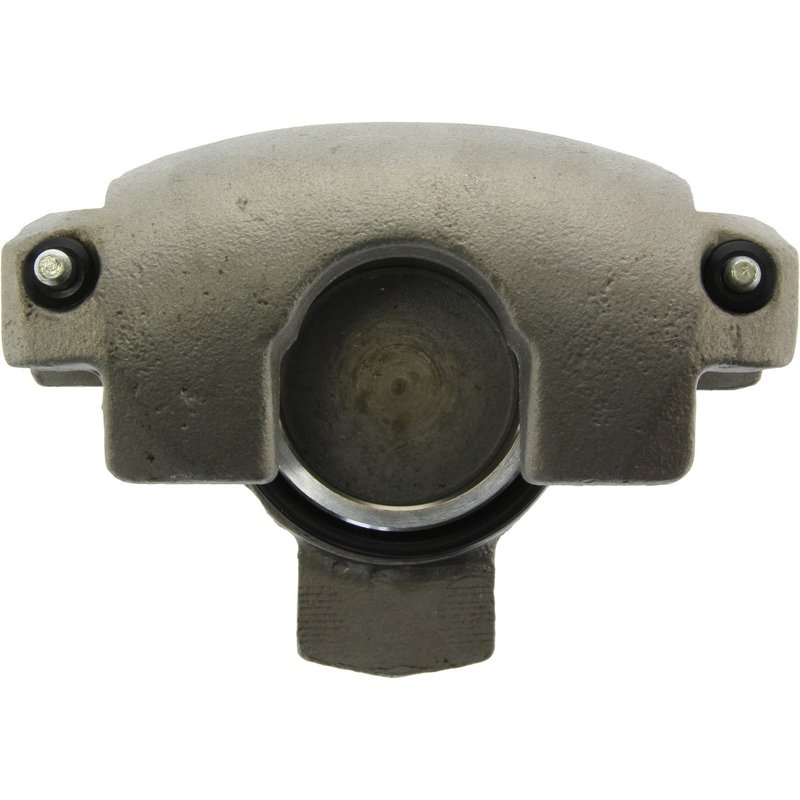

Centric 141.63013 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.63013

The Centric Premium Semi-Loaded Disc Brake Caliper 141.63013 is engineered for reliable braking performance on Dodge Charger and Monaco models. Designed as a floating caliper with a single steel piston, this component offers durable cast iron construction and essential features for effective brake system operation.

• Compatible with Dodge Charger and Monaco vehicles
• Floating disc brake caliper design with one steel piston
• Cast iron caliper casting material for strength and durability
• Includes bleeder screw and abutment clips for maintenance
• Banjo-type inlet fitting with 7/16"-20 thread size
• Gray caliper color with a piston diameter of 69.9 mm

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line provides semi-assembled calipers that include key components such as pistons, seals, and bleeder screws, but exclude pads and mounting hardware. This approach allows for easier installation and maintenance while ensuring compatibility with original equipment specifications. The 141.63013 part benefits from this semi-loaded design, offering a balance between convenience and customization for Dodge Charger and Monaco brake systems.

Technical Details and Specifications

This Centric disc brake caliper features a floating design with a single steel piston measuring 69.9 mm in diameter, providing consistent clamping force. The caliper body is made from cast iron, ensuring structural integrity under braking stress. It includes a bleeder screw with a 3/8"-24 thread size for effective brake fluid bleeding and maintenance. The inlet fitting uses a banjo type with a 7/16"-20 thread diameter, compatible with standard brake lines. Abutment clips are included to secure brake pads properly, although pads and mounting hardware are not part of this assembly. The caliper is finished in gray, matching OEM appearance.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Dodge Charger and Monaco
• Restores proper brake piston movement and clamping force
• Addresses brake fluid leakage issues by including a new bleeder screw
• Improves brake system reliability with durable cast iron construction
• Supports maintenance where pad wear sensors are not required

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.63013, ensure compatibility with your Dodge Charger or Monaco model year and brake system specifications. Since mounting hardware and brake pads are not included, these components must be sourced separately. Properly torque the inlet fitting and bleeder screw to manufacturer specifications. Bleed the brake system thoroughly after installation to remove air and ensure optimal brake performance. Verify that abutment clips are correctly positioned to prevent pad movement.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The 141.63013 caliper undergoes rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Centric directly for warranty terms applicable to this part.
