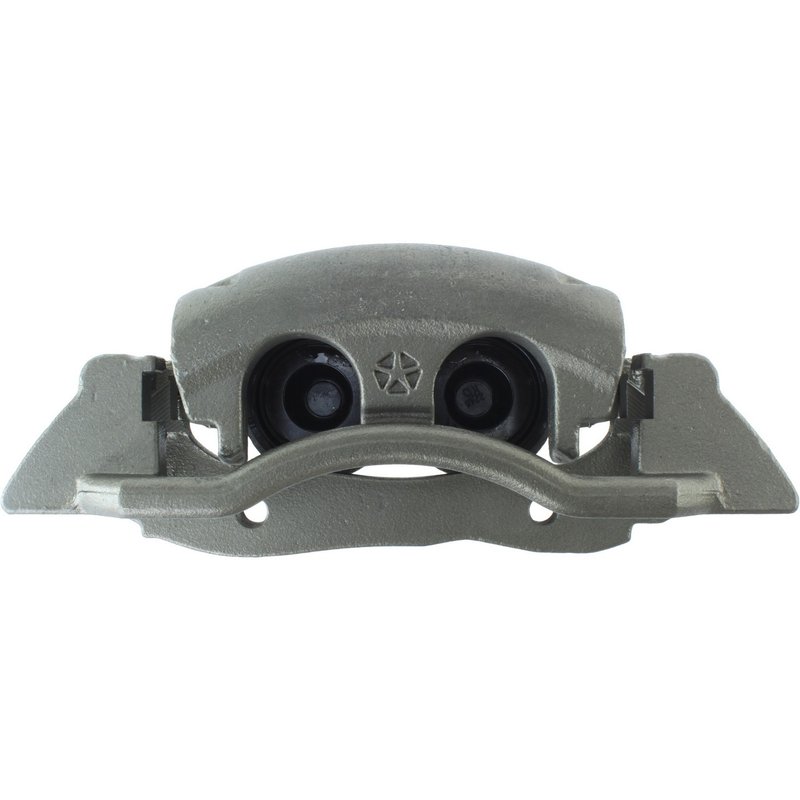

Centric 141.63038 Disc Brake Caliper - Front Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.63038

The Centric Premium Semi-Loaded Disc Brake Caliper 141.63038 is designed specifically for Chrysler Pacifica models. This floating type caliper features a durable cast iron construction and includes essential components such as abutment clips, mounting bracket, and bleeder screw for reliable brake system performance.

• Compatible with Chrysler Pacifica vehicles
• Part number 141.63038 for precise identification
• Cast iron caliper casting material for strength and durability
• Floating caliper design with two phenolic pistons (1.89 inch diameter)
• Includes mounting bracket, abutment clips, and bleeder screw
• Banjo type inlet fitting with 7/16"-20 thread size
• Gray caliper color with a 48mm bore size

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a semi-assembled solution that simplifies brake system maintenance and replacement. This product line includes calipers that come with key hardware components such as mounting brackets and abutment clips, reducing the need for additional parts during installation. The 141.63038 caliper features a floating design with two phenolic pistons, which helps reduce heat transfer to the brake fluid and improves overall braking efficiency. The cast iron construction ensures structural integrity under demanding conditions, while the included bleeder screw and mounting bracket facilitate straightforward installation and maintenance.

Product Features and Specifications

This Centric caliper is engineered with specific attributes to meet the braking needs of Chrysler Pacifica vehicles. It has a 48mm bore size and uses a banjo inlet fitting with a 7/16"-20 thread diameter. The caliper includes abutment clips and a mounting bracket, but does not come with brake pads or mounting hardware bolts. The phenolic pistons measure 1.89 inches in diameter, providing reliable piston movement and heat resistance. The gray finish offers corrosion resistance and a clean appearance. The caliper also includes a bleeder screw with M10x1.0 thread size for easy brake fluid bleeding.

Common Applications and Problem Solving

• Replacement of worn or damaged disc brake calipers on Chrysler Pacifica
• Resolving brake drag or uneven pad wear caused by faulty calipers
• Addressing brake fluid leaks from caliper piston seals
• Improving brake pedal feel and stopping power consistency
• Upgrading to a semi-loaded caliper for easier brake system servicing

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.63038, ensure the mounting bracket is properly secured as it is required for this caliper. Although mounting hardware bolts are not included, use OEM or compatible bolts to meet torque specifications. The included bleeder screw should be used to properly bleed the brake system after installation to remove air and maintain braking performance. Verify the inlet fitting thread size (7/16"-20) matches your brake line connection. Since brake pads are not included, inspect and replace pads as necessary during installation.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron caliper body and phenolic pistons are designed for durability and heat resistance. This product undergoes rigorous quality control to ensure reliable braking performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
