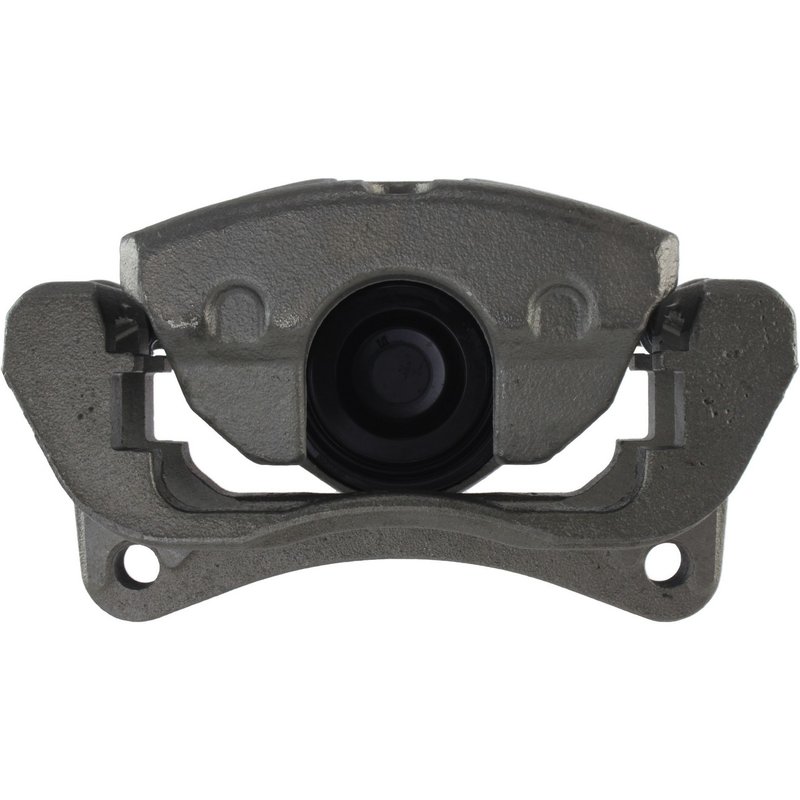

Centric 141.63085 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.63085

The Centric Premium Semi-Loaded Disc Brake Caliper 141.63085 is engineered for reliable braking performance on Chrysler and Dodge vehicles, specifically designed for the 200 Dart model. This floating caliper features a cast iron construction and a phenolic piston to ensure durability and consistent operation under various driving conditions.

• Compatible with Chrysler and Dodge 200 Dart models
• Part number 141.63085 for precise identification
• Cast iron caliper casting material for strength and heat resistance
• Single phenolic piston with 60mm diameter for effective braking force
• Includes mounting bracket, abutment clips, and bleeder screw for installation
• Floating caliper type with M10x1.0 inlet and bleeder screw thread sizes
• Gray caliper color with bubble inlet fitting type

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a balance between ease of installation and reliable braking performance. This semi-loaded caliper comes with essential components such as the mounting bracket, abutment clips, and bleeder screw included, but does not include brake pads or mounting hardware. The caliper’s cast iron construction offers durability and resistance to heat, while the phenolic piston reduces heat transfer to the brake fluid, helping to maintain consistent braking under demanding conditions. The floating caliper design allows for smooth pad wear and effective braking response, making it suitable for the Chrysler and Dodge 200 Dart applications.

Product Features and Specifications

• Pad wear sensor: Not included
• Inlet thread diameter: M10x1.0
• Bleeder screw thread size: M10x1.0, bleeder screw included
• Piston quantity: 1, diameter 60mm (2.362 inches)
• Caliper color: Gray
• Includes mounting bracket and abutment clips for installation
• Caliper type: Floating
• Inlet fitting type: Bubble

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Chrysler and Dodge 200 Dart
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leaks caused by piston seal failure
• Improves braking response and pedal feel when original caliper is compromised
• Restores proper brake function after caliper corrosion or damage

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.63085, ensure the mounting bracket and abutment clips are properly secured to avoid brake noise and uneven pad wear. Bleed the brake system thoroughly using the included bleeder screw to remove air and maintain optimal hydraulic pressure. Note that brake pads and mounting hardware are not included and must be sourced separately. Verify inlet and bleeder screw thread sizes (M10x1.0) for compatibility with your brake lines and tools.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron construction and phenolic piston materials are selected for durability and heat resistance. While specific warranty details are not provided here, Centric products typically come with a limited warranty against defects in materials and workmanship. Always consult product documentation or manufacturer resources for exact warranty terms.
