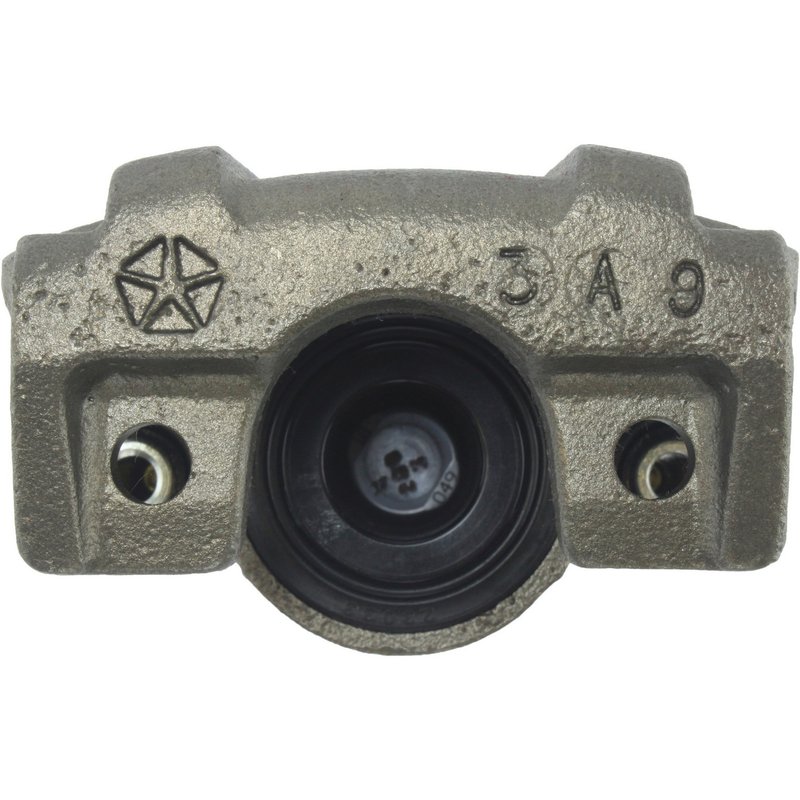

Centric 141.63526 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.63526

The Centric Premium Semi-Loaded Disc Brake Caliper 141.63526 is designed specifically for Chrysler Pacifica models, providing reliable braking performance. This floating caliper features a single phenolic piston and is engineered for durability and consistent operation.

• Compatible with Chrysler Pacifica vehicles
• Caliper type: Floating with 1 phenolic piston
• Caliper casting material: Aluminum for lightweight strength
• Includes bleeder screw (M10x1.0 thread size)
• Abutment clips included for secure pad placement
• Pad wear sensor not included
• Inlet fitting type: Banjo with 7/16"-20 inlet thread diameter
• Caliper color: Gray

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a semi-assembled solution that simplifies brake system maintenance by including key components such as the caliper body, piston, and bleeder screw. This product line is engineered to meet or exceed OEM specifications, ensuring compatibility and performance for vehicles like the Chrysler Pacifica. The 141.63526 caliper features a durable aluminum casting and a phenolic piston that helps reduce heat transfer to the brake fluid, improving overall braking reliability.

Technical Specifications and Features

This disc brake caliper has a piston diameter of 42 mm (1.654 inches) and uses a floating caliper design to provide even pad wear and consistent braking force. The inlet thread diameter is 7/16"-20, compatible with banjo-style fittings. The caliper includes a bleeder screw with an M10x1.0 thread size for easy brake fluid bleeding. Abutment clips are included to ensure proper pad alignment, although mounting hardware and brake pads are not included with this part.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Chrysler Pacifica
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a new bleeder screw and piston seal
• Improves braking response by restoring proper caliper function
• Helps eliminate brake noise caused by faulty abutment clips or caliper misalignment

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.63526, ensure the brake system is properly bled using the included bleeder screw to remove air from the hydraulic lines. Verify compatibility with your Chrysler Pacifica model year before installation. Since mounting hardware and brake pads are not included, reuse existing hardware if in good condition or purchase replacements separately. Proper torque specifications should be followed to secure the caliper and avoid brake system issues.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet strict quality standards, using durable aluminum castings and phenolic pistons to ensure long service life. This part number 141.63526 is backed by Centric’s quality control processes, although specific warranty details should be confirmed with the product supplier or manufacturer documentation.
