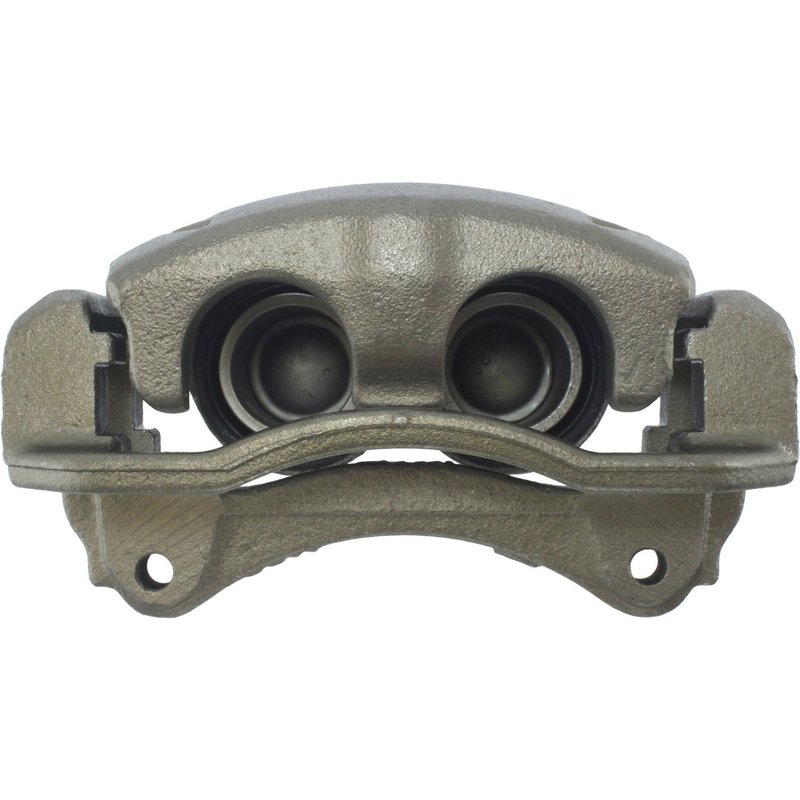

Centric 141.65037 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.65037

The Centric Premium Semi-Loaded Disc Brake Caliper 141.65037 is engineered for reliable braking performance on select Ford, Mazda, and Mercury vehicles. Designed as a floating caliper with two steel pistons, this part ensures consistent stopping power for models like the Ford Ranger and Mazda B2300.

• Compatible with Ford Ranger, Explorer, B2300, B2500, B3000, B4000, Mercury Mountaineer
• Part number 141.65037 for precise identification
• Cast iron caliper construction for durability
• Includes mounting bracket, abutment clips, and bleeder screw
• Two 46mm steel pistons for balanced braking force
• Floating caliper design with banjo-type inlet fitting
• Gray finish with 3/8"-24 inlet and bleeder screw thread sizes

Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a cast iron body that provides strength and heat resistance. The caliper uses two steel pistons, each measuring 46mm in diameter, to apply even pressure to the brake pads. It is a floating type caliper, which allows for self-alignment during braking. The inlet fitting is a banjo style with a 3/8"-24 thread diameter, matching common brake line fittings on compatible vehicles.

Included with the caliper are the mounting bracket, abutment clips, and bleeder screw, facilitating installation and maintenance. However, mounting hardware and brake pads are not included and must be sourced separately. The caliper’s gray finish helps resist corrosion and wear over time.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and bare calipers by including essential components such as brackets and bleeder screws while excluding pads and mounting bolts. This approach provides flexibility for technicians and vehicle owners who may want to reuse existing hardware or select specific brake pads. The 141.65037 model fits a range of Ford, Mazda, and Mercury trucks and SUVs, ensuring compatibility with popular models requiring reliable brake hydraulics.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford Ranger and Mazda B-series trucks
• Restores proper brake piston function and pressure distribution
• Addresses brake fluid leakage by including a new bleeder screw
• Improves brake pad alignment with included abutment clips and mounting bracket
• Suitable for vehicles experiencing uneven brake wear or reduced stopping power

Installation Notes and Tips

• Ensure compatibility with your vehicle’s make and model before installation
• Use the included mounting bracket and abutment clips for proper caliper positioning
• Bleed the brake system thoroughly using the included bleeder screw to remove air
• Replace brake pads separately as they are not included with this caliper
• Verify inlet thread size (3/8"-24) matches your brake line fittings

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel pistons provide durability under normal operating conditions. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
