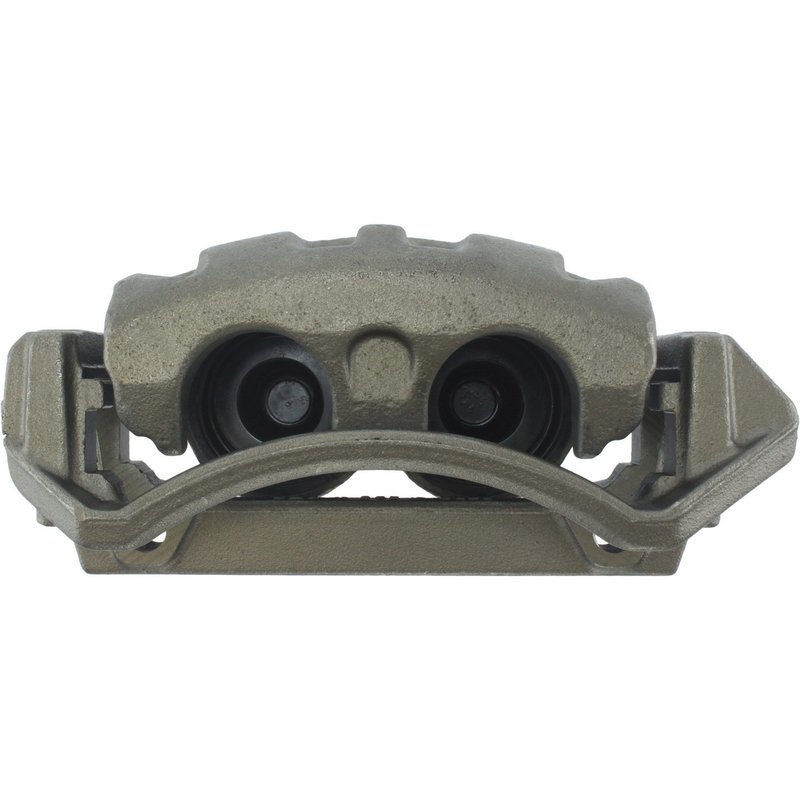

Centric 141.65045 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.65045

The Centric Premium Semi-Loaded Disc Brake Caliper 141.65045 is engineered for reliable braking performance on Ford and Lincoln vehicles, including the Blackwood, F-150, and F-150 Heritage models. Designed as a floating caliper with dual pistons, this part ensures consistent brake pad engagement and smooth operation.

• Compatible with Ford Blackwood, F-150, and F-150 Heritage
• Part number 141.65045 for precise identification
• Cast iron caliper casting for durability
• Two phenolic pistons with 51mm diameter for effective braking force
• Includes mounting bracket and abutment clips for installation
• Banjo-type inlet fitting with 3/8"-24 thread size
• Bleeder screw included with 3/8"-24 thread size for easy maintenance
• Trailing axle position caliper design

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a semi-assembled solution that includes the caliper body, pistons, mounting bracket, abutment clips, and bleeder screw, but excludes brake pads and mounting hardware. This design simplifies installation while allowing flexibility for brake pad selection. The caliper casting is made from cast iron, providing strength and heat resistance necessary for demanding braking conditions. The phenolic pistons reduce heat transfer to the brake fluid, helping to maintain consistent braking performance. The floating caliper type with two pistons ensures even pad wear and reliable stopping power.

Product Features and Specifications

• Caliper Type: Floating with 2 pistons
• Piston Diameter: 51 mm (2.008 inches)
• Caliper Casting Material: Cast iron
• Piston Material: Phenolic for heat resistance
• Inlet Fitting Type: Banjo with 3/8"-24 thread size
• Bleeder Screw Included: Yes, with 3/8"-24 thread size
• Mounting Bracket and Abutment Clips Included
• Trailing axle position compatibility
• Pad Wear Sensor: Not included
• Brake Pads and Mounting Hardware: Not included

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford F-150 and Lincoln Blackwood
• Restores proper brake pad alignment and pressure for improved stopping
• Addresses brake fluid leakage issues by providing a new bleeder screw and sealed pistons
• Solves uneven pad wear caused by faulty or seized calipers
• Supports maintenance of trailing axle brake systems on compatible vehicles

Installation Notes and Tips

Installation requires removal of the old caliper and proper mounting of the included bracket and abutment clips. Since brake pads and mounting hardware are not included, ensure you have compatible pads and bolts before beginning installation. The banjo inlet fitting and bleeder screw use a 3/8"-24 thread size, so compatible brake lines and tools are necessary. Bleeding the brake system after installation is essential to remove air and maintain braking efficiency. Verify the caliper is installed on the trailing axle side as specified.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications for fit, form, and function. The cast iron construction and phenolic pistons contribute to durability and consistent performance. This part number 141.65045 is backed by Centric’s quality standards, ensuring reliable operation on Ford and Lincoln vehicles. Warranty details should be confirmed with the supplier or manufacturer.
