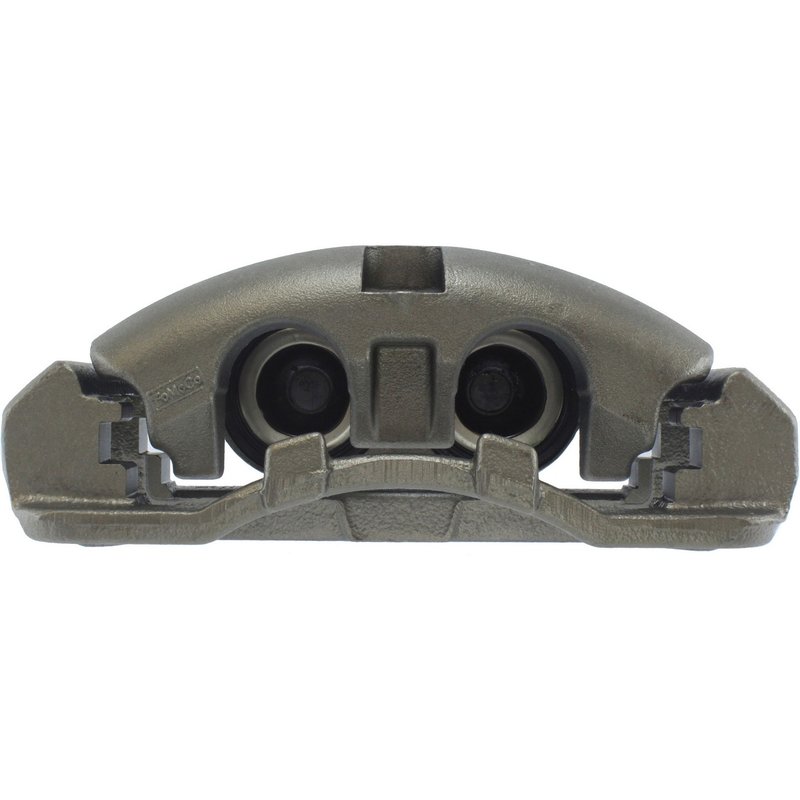

Centric 141.65101 Disc Brake Caliper - Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.65101

The Centric Premium Semi-Loaded Disc Brake Caliper 141.65101 is engineered for reliable braking performance on Ford F-250 Super Duty and F-350 Super Duty trucks. Designed as a floating caliper with dual pistons, this component ensures consistent brake pressure and durability under demanding conditions.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Part number 141.65101 for precise identification
• Cast iron caliper casting for strength and heat resistance
• Two 60mm phenolic pistons for effective braking force
• Includes abutment clips, mounting bracket, and bleeder screw
• Floating caliper design with trailing axle configuration
• Banjo-type inlet fitting with 3/8"-24 thread size

Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a cast iron construction that provides durability and resistance to heat generated during braking. The caliper includes two phenolic pistons, each measuring 60mm in diameter, which help reduce heat transfer to the brake fluid and improve overall braking efficiency. The floating caliper design allows for smooth movement and even pad wear, optimized for trailing axle applications on Ford Super Duty trucks.

The caliper comes with essential hardware such as abutment clips, a mounting bracket (part number 743.65101), and a bleeder screw with a 3/8"-24 thread size for easy maintenance. The inlet fitting uses a banjo style with a 3/8"-24 thread diameter, compatible with standard brake lines. Note that this semi-loaded caliper does not include brake pads, pad wear sensors, or mounting hardware bolts.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers product line offers a balance between fully loaded and core-only calipers by including key components such as brackets and bleeder screws while excluding pads and mounting bolts. This approach provides flexibility for technicians who prefer to reuse existing hardware or select specific pads. The 141.65101 caliper is part of this line, designed to meet OE specifications for Ford Super Duty trucks, ensuring compatibility and reliable performance.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford F-250 Super Duty and F-350 Super Duty
• Addresses uneven brake pad wear caused by faulty caliper pistons
• Resolves brake fluid leaks from damaged or corroded caliper seals
• Improves braking response and pedal feel by restoring proper caliper function
• Suitable for trailing axle brake system repairs

Installation Notes and Tips

When installing the Centric Premium Semi-Loaded Disc Brake Caliper 141.65101, ensure the mounting bracket and abutment clips are properly secured to prevent brake noise and uneven pad wear. Bleed the brake system thoroughly using the included bleeder screw to remove air and maintain optimal hydraulic pressure. Verify the inlet fitting matches the brake line specifications on your Ford F-250 or F-350 Super Duty. Since pads and mounting hardware bolts are not included, inspect and replace these components as necessary to complete the brake job.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and phenolic pistons contribute to long service life and consistent braking performance. While specific warranty details are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or Centric directly for warranty terms related to part number 141.65101.
