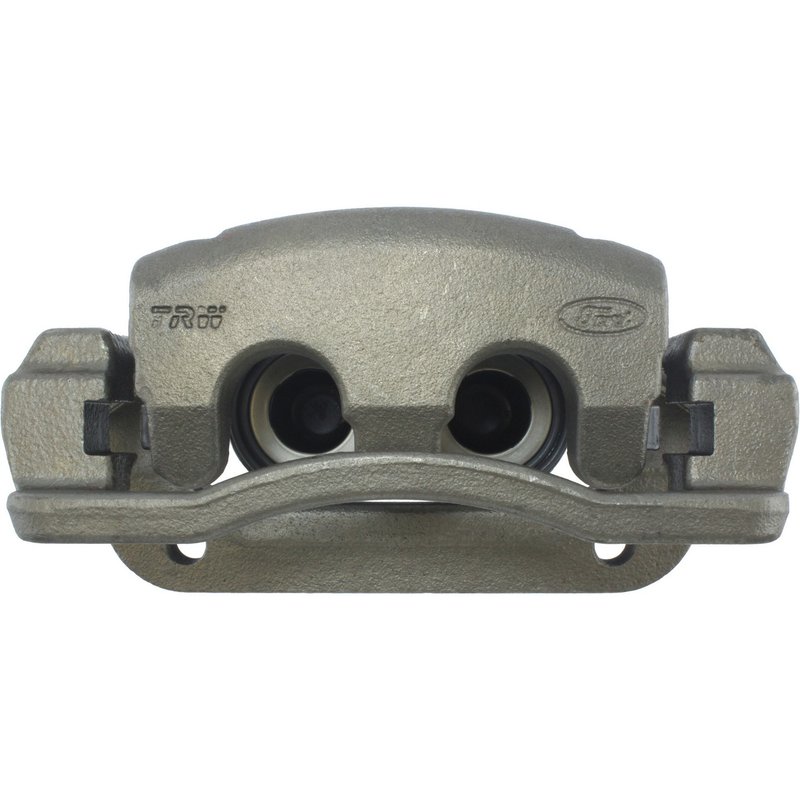

Centric 141.65524 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.65524

The Centric Premium Semi-Loaded Disc Brake Caliper 141.65524 is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This floating type caliper features a durable cast iron construction and includes essential components for reliable braking performance.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty
• Part number 141.65524 for precise identification
• Cast iron caliper casting material for strength and durability
• Two phenolic pistons with 1.890 inch (48 mm) diameter
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper design for consistent pad wear
• Banjo type inlet fitting with 3/8"-24 thread size

Detailed Product Description

This Centric Premium Semi-Loaded Disc Brake Caliper 141.65524 is engineered to meet the braking demands of heavy-duty Ford trucks such as the F-250 Super Duty and F-350 Super Duty. The caliper features a cast iron body that provides structural integrity and heat resistance under rigorous conditions. It is a floating caliper type, which allows for even pad wear and smooth braking operation.

The caliper is equipped with two phenolic pistons, each measuring 1.890 inches (48 mm) in diameter, which help reduce heat transfer to the brake fluid and improve overall braking efficiency. The inlet fitting uses a banjo style with a 3/8"-24 thread size, compatible with standard brake lines. Included in the assembly are the mounting bracket, abutment clips, and bleeder screw, facilitating installation and maintenance.

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and bare caliper options. This semi-loaded design includes critical hardware such as the mounting bracket, abutment clips, and bleeder screw, but excludes pads and mounting bolts. This approach provides flexibility for technicians and vehicle owners who may want to reuse existing brake pads or mounting bolts while ensuring the caliper assembly is ready for installation.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford F-250 Super Duty and F-350 Super Duty
• Addresses issues with uneven brake pad wear due to floating caliper design
• Resolves brake fluid leakage by providing a new bleeder screw and proper sealing
• Improves braking response by restoring piston function with phenolic pistons
• Supports brake system maintenance by including mounting bracket and abutment clips

Installation Notes and Tips

• Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty models before installation
• Use proper torque specifications for mounting bracket bolts (not included)
• Inspect brake pads separately as they are not included with this caliper
• Bleed the brake system thoroughly after installation to remove air
• Verify inlet thread size 3/8"-24 matches existing brake lines

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Caliper 141.65524 is manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and phenolic pistons ensure durability and resistance to heat and corrosion. This product includes a bleeder screw and mounting hardware necessary for proper installation, although brake pads and mounting bolts are not included. Warranty coverage details should be confirmed with the product supplier or manufacturer.
