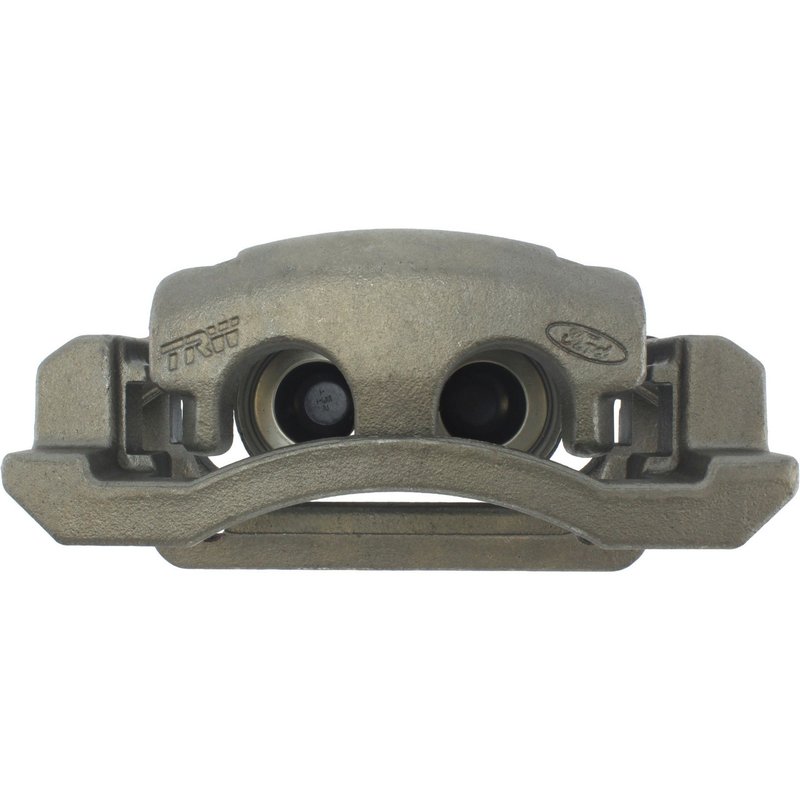

Centric 141.65525 Disc Brake Caliper - Rear Left or Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper

The Centric Premium Semi-Loaded Disc Brake Caliper 141.65525 is engineered for reliable braking performance on Ford F-350 Super Duty trucks. Designed as a floating caliper with dual pistons, this component ensures consistent stopping power and durability under demanding conditions.

• Compatible with Ford F-350 Super Duty models
• Part number 141.65525 for precise identification
• Cast iron caliper casting for strength and heat resistance
• Two phenolic pistons with 54mm diameter for effective braking force
• Includes mounting bracket, abutment clips, and bleeder screw
• Banjo-type inlet fitting with 3/8"-24 thread size
• Gray finish for corrosion resistance

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include essential components such as brackets, abutment clips, and bleeder screws. This design simplifies installation while maintaining high standards of quality and fitment. The 141.65525 caliper benefits from this semi-loaded configuration, providing a balance between ease of installation and component flexibility.

Technical Specifications and Features

This floating disc brake caliper features a cast iron body for durability and heat dissipation. It is equipped with two phenolic pistons, each measuring 54mm (2.126 inches) in diameter, which help reduce heat transfer to the brake fluid and improve overall braking performance. The caliper includes a banjo-type inlet fitting with a 3/8"-24 thread size, compatible with standard brake lines. The gray finish offers corrosion resistance suitable for heavy-duty use. Included hardware consists of the mounting bracket, abutment clips, and bleeder screw, though mounting bolts and brake pads are not included.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford F-350 Super Duty
• Addresses issues with uneven brake pad wear due to caliper malfunction
• Resolves brake fluid leakage by providing a new bleeder screw and inlet fitting
• Improves braking response and pedal feel by restoring piston function
• Supports maintenance of brake system integrity with included mounting bracket and clips

Installation Notes and Tips

Ensure compatibility with Ford F-350 Super Duty models before installation. The semi-loaded design includes the mounting bracket and abutment clips, but mounting bolts and brake pads must be sourced separately. Properly torque all mounting hardware and bleed the brake system using the included bleeder screw to remove air. Verify inlet thread size (3/8"-24) matches existing brake lines for a secure fit. Inspect pistons and seals during installation to confirm smooth operation.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and phenolic pistons contribute to long service life under heavy-duty conditions. This part number 141.65525 is backed by Centric’s quality control processes, ensuring reliable performance on Ford F-350 Super Duty vehicles. Warranty details should be confirmed with the original product documentation or supplier.
