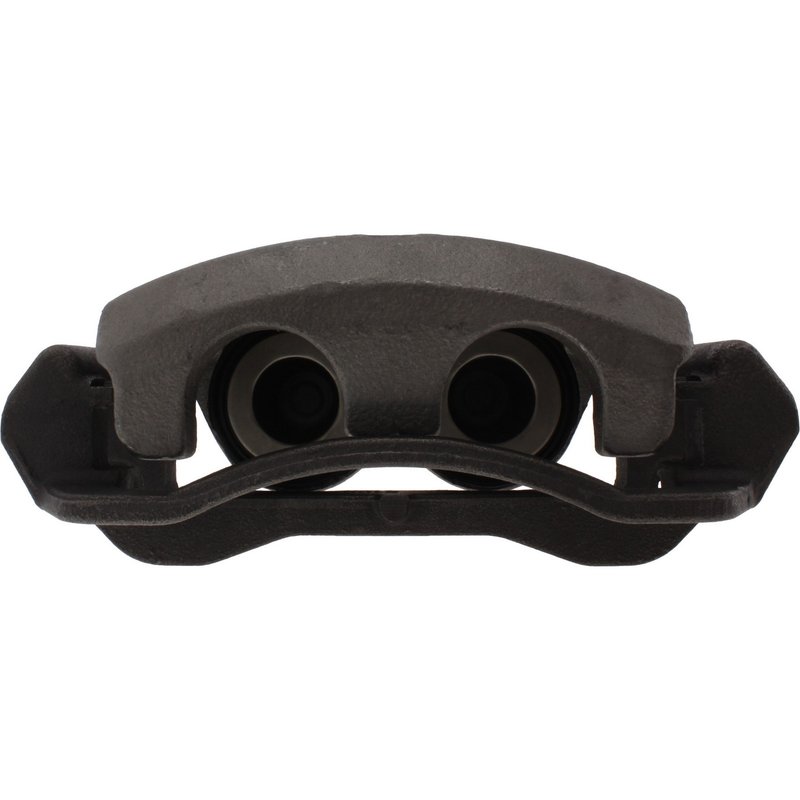

Centric 141.66515 Disc Brake Caliper - Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.66515

The Centric Premium Semi-Loaded Disc Brake Caliper 141.66515 is engineered for reliable braking performance on Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models. Designed as a floating caliper with dual pistons, this component ensures consistent brake pad engagement and durability.

• Compatible with Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500
• Part number 141.66515 for precise identification
• Cast iron caliper casting for strength and heat resistance
• Two 2-inch phenolic pistons for effective braking force
• Includes abutment clips, mounting bracket, and bleeder screw
• Banjo-type inlet fitting with M10x1.0 thread size
• Gray finish with leading axle configuration

Detailed Product Features and Specifications

This Centric Premium Semi-Loaded Disc Brake Caliper features a cast iron construction that provides durability and heat dissipation essential for heavy-duty applications. The floating caliper design with two 50.8 mm (2 inch) phenolic pistons offers balanced braking pressure and reduces the risk of piston corrosion. The caliper includes a mounting bracket and abutment clips to facilitate installation, although mounting hardware and brake pads are not included. The inlet fitting uses a banjo style with an M10-1.00 thread diameter, compatible with standard brake lines. Additionally, the bleeder screw with M10-1.00 thread size is included to assist with brake fluid bleeding during maintenance.

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a balance between ease of installation and component completeness. Semi-loaded calipers come with essential parts such as the mounting bracket, abutment clips, and bleeder screw, reducing the need for additional purchases while allowing flexibility for brake pad selection. This product line targets professional repairs and replacements for specific vehicle applications, including Chevrolet and GMC full-size vans.

Common Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Chevrolet Express and GMC Savana vans
• Addresses uneven brake pad wear due to piston or caliper malfunction
• Resolves brake fluid leaks from damaged bleeder screws or inlet fittings
• Improves braking response by restoring proper caliper function
• Eliminates noise and vibration caused by faulty abutment clips or mounting brackets

Installation Notes and Tips

• Ensure compatibility with Chevrolet Express 2500/3500 and GMC Savana 2500/3500 before installation
• Use proper torque specifications for mounting bracket bolts (not included)
• Bleed brake system thoroughly after installation using the included bleeder screw
• Inspect brake pads separately as they are not included with this caliper
• Verify inlet fitting thread size (M10x1.0) matches existing brake lines

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and phenolic pistons are tested for durability and corrosion resistance. This part number 141.66515 is backed by Centric’s quality control processes to ensure reliable performance on Chevrolet Express and GMC Savana vehicles. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
