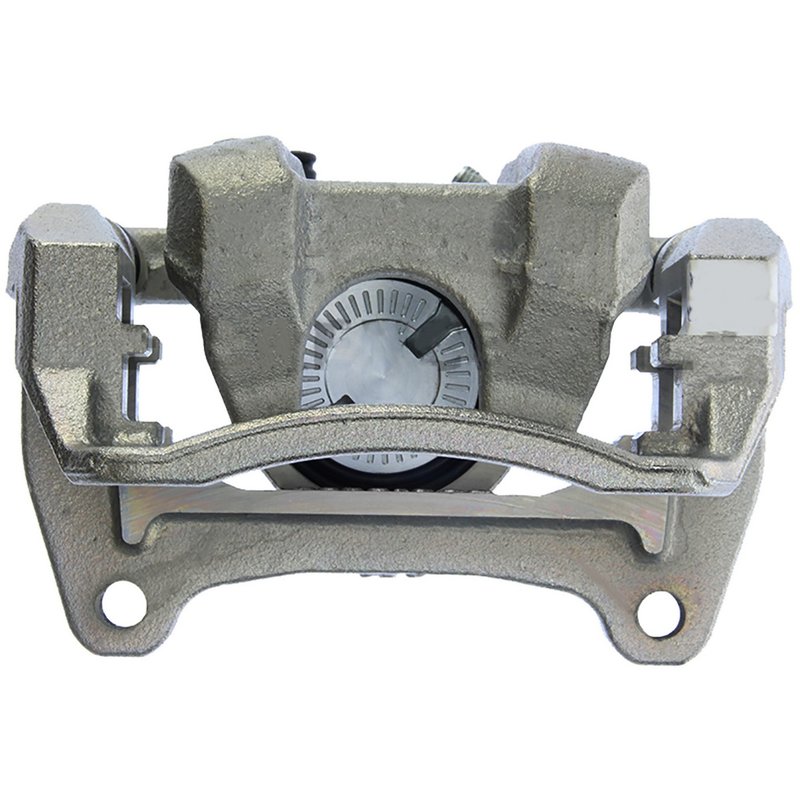

Centric 141.66544 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.66544

The Centric Premium Semi-Loaded Disc Brake Caliper 141.66544 is engineered for reliable braking performance on select Buick, Cadillac, Chevrolet, and GMC models. Designed as a floating caliper with a single steel piston, this component ensures consistent brake application and durability.

• Compatible with Buick Acadia, Cadillac XT5, XT6, Chevrolet Blazer, Traverse, and GMC Acadia models
• Caliper casting made from durable cast iron for strength and heat resistance
• Includes abutment clips, mounting bracket, and bleeder screw for streamlined installation
• Features a 45mm piston diameter with steel piston material for reliable operation
• Inlet fitting type is banjo with M10x1.5 inlet thread size
• Floating caliper design with trailing axle position
• Gray caliper color with casting number BC140266

About Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers semi-assembled calipers that include essential hardware such as abutment clips, mounting brackets, and bleeder screws. This reduces installation time and ensures compatibility with original equipment specifications. The 141.66544 part benefits from this semi-loaded design, providing a balance between ease of installation and customization for brake pad selection.

Technical Details and Features

This floating disc brake caliper features a single piston with a diameter of 45mm, constructed from steel for durability and consistent braking force. The caliper body and casting are made from cast iron, providing resistance to heat and wear. The inlet thread size is M10x1.5 with a banjo fitting type, and the bleeder screw thread size is M10x1.0, included for proper brake fluid bleeding. The caliper is designed for the trailing axle position and comes in a gray finish. Abutment clips and mounting brackets are included, but brake pads and pad wear sensors are not part of this assembly.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on compatible Buick, Cadillac, Chevrolet, and GMC SUVs
• Addresses issues with brake fluid leaks or piston corrosion
• Resolves uneven brake pad wear caused by faulty caliper operation
• Improves braking response and pedal feel on trailing axle brakes
• Suitable for restoring OEM braking performance after caliper failure

Installation Notes and Tips

Ensure the brake system is properly bled using the included bleeder screw to remove air and maintain hydraulic integrity. Verify compatibility with your vehicle’s axle position as this caliper is designed for trailing axle use. Since brake pads and pad wear sensors are not included, select compatible pads separately. Use the included mounting bracket and abutment clips for secure installation. Follow manufacturer torque specifications for inlet fittings and mounting hardware.

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron construction and steel piston material provide durability under normal operating conditions. This part number 141.66544 is backed by Centric’s quality control processes, though specific warranty details should be confirmed with the point of purchase or manufacturer documentation.
