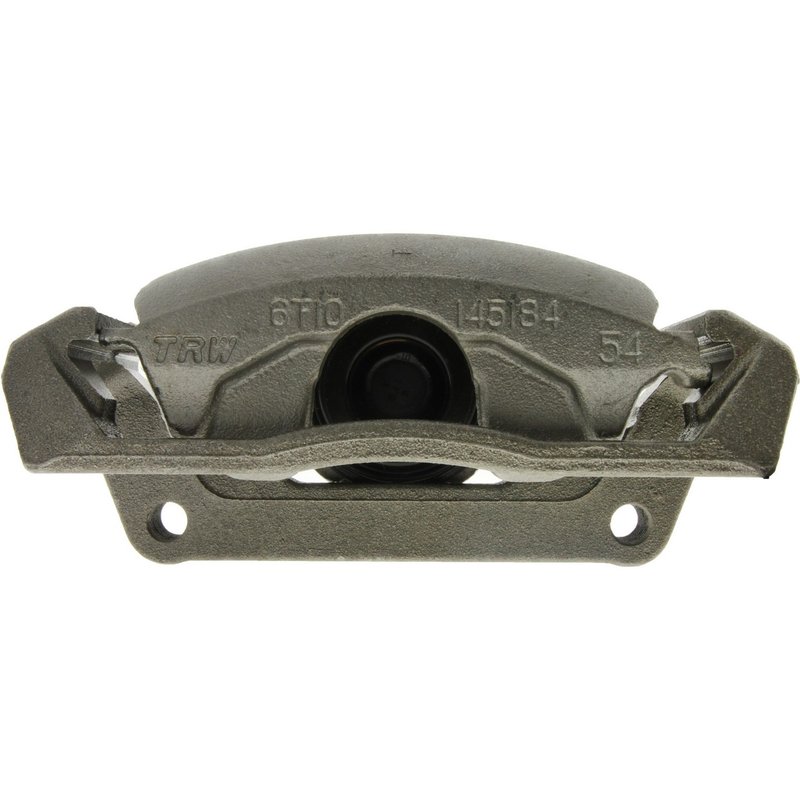

Centric 141.67502 Disc Brake Caliper - Rear Left

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.67502

The Centric Premium Semi-Loaded Disc Brake Caliper 141.67502 is engineered for reliable braking performance on select Chrysler, Dodge, and Ram vehicles. Designed as a floating caliper with a single phenolic piston, this component ensures consistent brake pad engagement and heat resistance for safe stopping power.

• Compatible with Chrysler, Dodge, and Ram models including Ram 1500, Ram 1500 Classic, Dakota, Durango, Aspen, and 4000 series
• Cast iron caliper construction for durability and strength
• Single 54mm phenolic piston for reduced heat transfer and corrosion resistance
• Includes mounting bracket, abutment clips, and bleeder screw for semi-loaded convenience
• Banjo-type inlet fitting with M10x1.0 thread size for secure hydraulic connection
• Gray finish with casting numbers 135361, 145184, 54, and trw for identification

Centric Premium Semi-Loaded Disc Brake Calipers Product Line

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a balance between fully loaded and bare caliper options by including essential hardware such as mounting brackets, abutment clips, and bleeder screws. This reduces installation time and complexity while allowing customers to reuse existing brake pads if desired. The 141.67502 model exemplifies this approach, providing a cast iron floating caliper with a phenolic piston designed for dependable braking on compatible Chrysler, Dodge, and Ram trucks and SUVs.

Technical Specifications and Features

This disc brake caliper features a 54mm bore size and a single phenolic piston that helps minimize heat transfer to the brake fluid, reducing the risk of vapor lock. The caliper uses a floating design, allowing it to self-adjust as pads wear. The inlet fitting is a banjo type with an M10x1.0 thread diameter, matching OEM hydraulic line connections. The caliper comes with a gray finish and includes a bleeder screw with M10x1.0 thread size for easy brake bleeding. Mounting hardware such as the bracket and abutment clips are included, but brake pads and mounting bolts are not part of this semi-loaded assembly.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ram 1500, Dodge Durango, and Chrysler Aspen
• Restores proper brake pad alignment and piston function to eliminate uneven pad wear
• Addresses brake fluid leaks caused by caliper seal failure
• Improves braking response by replacing corroded or seized calipers
• Supports maintenance of brake system integrity on trucks and SUVs requiring M10x1.0 inlet fittings

Installation Notes and Tips

• Ensure compatibility with your vehicle’s make, model, and year before installation
• Re-use existing brake pads or replace with new pads matching FMSI number 10x.08980
• Bleed brake system thoroughly after installation to remove air from hydraulic lines
• Verify mounting bracket and abutment clips are securely installed to prevent caliper movement
• Use proper torque specifications for mounting bolts (not included) to avoid damage

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards for fit, form, and function. The cast iron caliper body and phenolic piston materials are selected for durability and corrosion resistance. This part number 141.67502 undergoes rigorous quality control to ensure reliable braking performance on compatible Chrysler, Dodge, and Ram vehicles. Warranty coverage details should be confirmed with the original product documentation or supplier.
