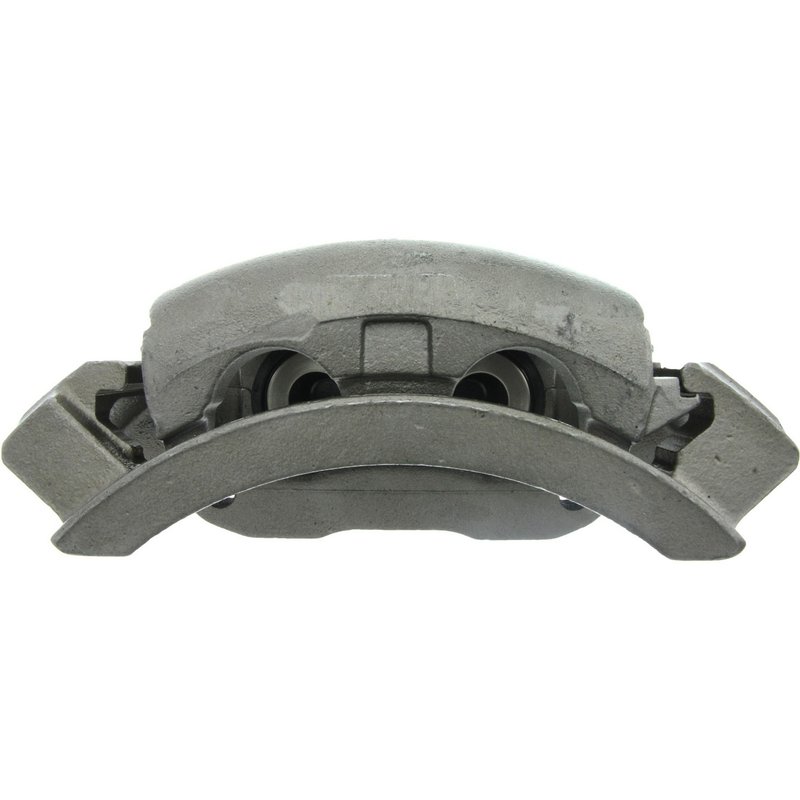

Centric 141.67505 Disc Brake Caliper - Rear Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.67505

The Centric Premium Semi-Loaded Disc Brake Caliper 141.67505 is designed specifically for Dodge Ram 2500 models. This floating type caliper features a durable cast iron construction and includes essential components such as abutment clips, mounting bracket, and bleeder screw to facilitate installation and reliable braking performance.

• Compatible with Dodge Ram 2500
• Part number: 141.67505
• Cast iron caliper body for strength and durability
• Floating caliper design with two phenolic pistons (45mm diameter)
• Includes mounting bracket, abutment clips, and bleeder screw
• Banjo type inlet fitting with 3/8"-24 thread size
• Gray caliper color
• Does not include brake pads or pad wear sensor

Product Line Details: Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line offers a semi-assembled solution that includes key components such as mounting brackets and abutment clips, reducing installation time and ensuring proper fitment. This product line is engineered to meet or exceed OEM specifications, providing a reliable replacement option for vehicles like the Dodge Ram 2500. The semi-loaded design means pads and mounting hardware are not included, allowing for customization based on specific brake system requirements.

Technical Specifications and Features

This Centric caliper features a cast iron body for enhanced durability and heat dissipation. It uses two phenolic pistons, each measuring 45mm (1.772 inches) in diameter, which help reduce heat transfer to the brake fluid and improve overall braking performance. The floating caliper design allows for self-alignment during braking, which is typical for many Dodge Ram 2500 brake systems. The inlet fitting is a banjo type with a 3/8"-24 thread size, compatible with standard brake lines. Included components such as the mounting bracket (part number 147.67505), abutment clips, and bleeder screw simplify installation and maintenance.

Common Applications and Problem Solving

• Replacement for worn or damaged front or rear disc brake calipers on Dodge Ram 2500
• Addresses issues with sticking or seized caliper pistons
• Resolves brake fluid leaks from caliper seals or bleeder screw
• Improves braking consistency by restoring proper caliper function
• Supports brake system rebuilds requiring semi-loaded caliper assemblies

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 2500 model year and brake system before installation
• Brake pads and mounting hardware are not included and must be sourced separately
• Use proper torque specifications for mounting bracket and caliper bolts
• Bleed brake system thoroughly after installation to remove air from lines
• Inspect brake lines and fittings for wear or damage during installation

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM standards, using cast iron and phenolic piston materials for durability and performance. This caliper assembly undergoes rigorous quality control to ensure reliable operation. Warranty coverage details should be confirmed with the product supplier or manufacturer, as they may vary by region and distributor.
