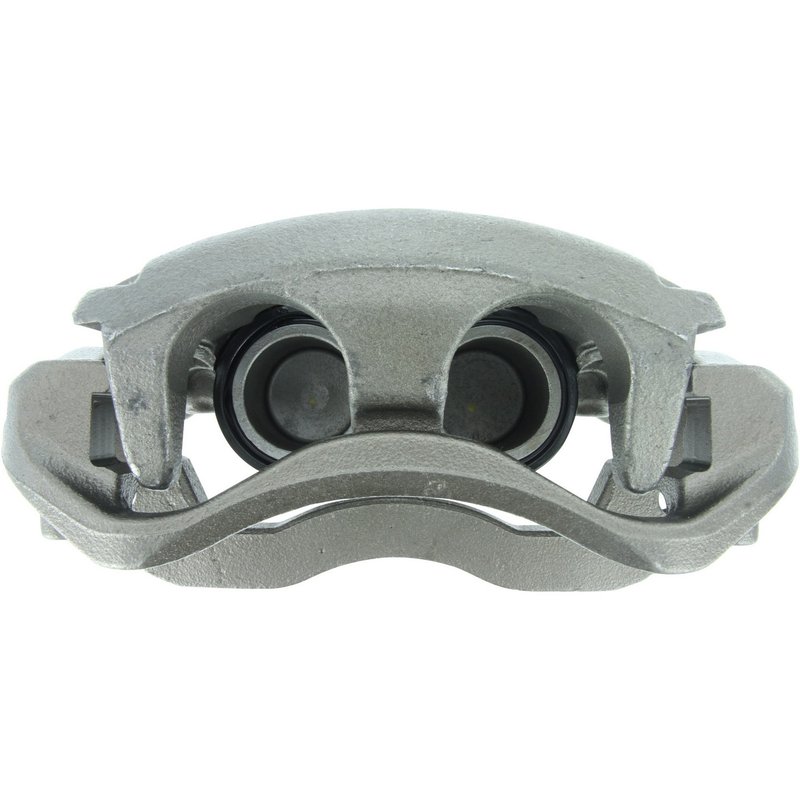

Centric 141.85001 Disc Brake Caliper - Front Left or Front Right

Overview of Centric Premium Semi-Loaded Disc Brake Caliper 141.85001

The Centric Premium Semi-Loaded Disc Brake Caliper 141.85001 is engineered for reliable braking performance on select Dodge, Mercedes-Benz, and Volkswagen vehicles. Designed as a floating caliper with dual pistons, it offers consistent stopping power for models like the Sprinter 3500 and Crafter Van.

• Compatible with Dodge, Mercedes-Benz, and Volkswagen Sprinter 3500, Sprinter 3500XD, and Crafter Van
• Part number 141.85001 for precise identification
• Cast iron caliper body and casting for durability
• Two steel pistons with 52mm bore diameter for balanced braking
• Includes mounting bracket, abutment clips, and bleeder screw
• Floating caliper design with leading axle configuration
• Gray caliper color with bubble inlet fitting type
• Inlet and bleeder screw thread size M10x1.0

Details on Centric Premium Semi-Loaded Disc Brake Calipers

The Centric Premium Semi-Loaded Disc Brake Calipers line is designed to provide a semi-assembled solution that simplifies installation while maintaining high-quality standards. This product line includes essential components such as the mounting bracket, abutment clips, and bleeder screw, but excludes pads and mounting hardware, allowing for customization based on specific vehicle requirements. The 141.85001 caliper features a cast iron body and casting, ensuring strength and heat resistance under demanding braking conditions. Its floating caliper design with two steel pistons of 52mm diameter delivers consistent pressure distribution for effective braking on commercial vans and trucks.

Technical Specifications and Features

This disc brake caliper is engineered with a 10mm M10x1.0 inlet thread diameter and bleeder screw thread size, compatible with standard brake hydraulic fittings. The caliper’s gray finish and bubble inlet fitting type are designed for corrosion resistance and ease of maintenance. The included mounting bracket (part number 743.85001) and abutment clips facilitate secure installation. The piston material is steel, contributing to durability and reliable operation. The caliper is configured for the leading axle position, with a body air gap of 69.5mm and bracket air gap of 32.0mm, ensuring proper fitment and function on specified vehicle models.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Dodge Sprinter 3500 and 3500XD
• Restores braking performance on Mercedes-Benz Sprinter 3500 models
• Suitable for Volkswagen Crafter Van brake system repairs
• Addresses issues with brake fluid leaks or piston corrosion
• Helps resolve uneven brake pad wear due to caliper malfunction

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use the included mounting bracket and abutment clips for proper assembly
• Bleeder screw is included; bleed brake system after installation to remove air
• Pads and mounting hardware are not included and must be sourced separately
• Verify inlet and bleeder screw thread sizes (M10x1.0) match vehicle fittings

Quality Assurance and Warranty

Centric Premium Semi-Loaded Disc Brake Calipers are manufactured to meet or exceed OEM specifications, using cast iron and steel materials for durability and performance. The 141.85001 caliper undergoes rigorous quality control to ensure reliable operation in demanding conditions. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
