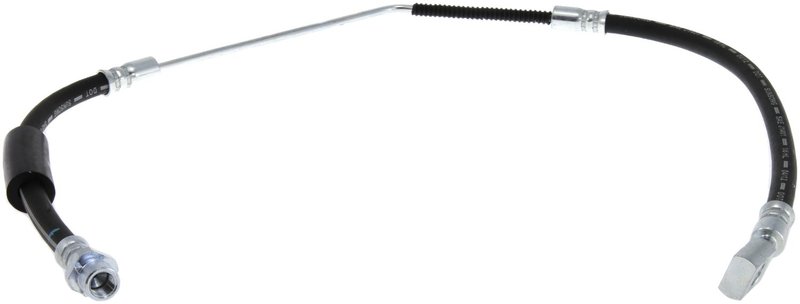

Centric 150.22012 Brake Hydraulic Hose - Rear Left
| Brand | Centric 150.22012 |
|---|---|
| Position | Rear Left |
| Axis 1 Length | 15.866 |
| Axis 1 Length | 403.00 |
| Axis 2 Length | 17.047 |
| Axis 2 Length | 433.00 |
| Banjo Bolt Part # [cntrc] | 117.99023 |
| Banjo Bolt [cntrc] | Yes |
| Bracket Included | No |
| Bracket Quantity | 0 |
| Clip [cntrc] | No |
| Color | Black |
| DOT Approved | Yes |
| End 1 Fitting Material | Metal |
| End 1 Fitting Type | Banjo |
| End 1 Thread Size | 10.0mm |
| End 2 Fitting Material | Metal |
| End 2 Fitting Type | Female |
| End 2 Flare Type | Bubble |
| End 2 Thread Size | M10-1.00 |
| Gasket Or Seal Included | Yes |
| Grommets Included | No |
| Mounting Hardware Included | No |
| Notes #1 [cntrc] | 2 Rubber Sleeves |
| Notes #2 [cntrc] | 2 Hoses Connected by Hard Line |
| Outer Sleeve Material | EPDM Rubber |
| Overall Length | 32.913 |
| Overall Length | 836.00 |
| Shield Included | No |
| Teflon Lined | No |
| Washer Part # [cntrc] | 117.99008 |
| Product line | Centric Premium Brake Hydraulic Hoses |
| Fits | Land Rover · 7 vehicles |
DOT approved. Meets road-use standards for dependable hydraulic braking performance.
EPDM rubber sleeve. Resists wear while helping protect the hose from the elements.
Banjo and female ends. Metal fittings provide a secure, leak-resistant connection.
Cross-references Centric Parts 150.22012, Dorman - First Stop H621521 and Hotbray LR017421 for the same application. See all 9.
Brake Hydraulic Hose for Range Rover Rear Left
Centric 150.22012 is a DOT-approved brake hydraulic hose for the rear left position on select 2006-2012 Land Rover Range Rover models. It uses an EPDM rubber outer sleeve with metal fittings and an integrated gasket or seal for a direct brake line service replacement.
Key Features
- DOT approved brake hydraulic hose
- Black EPDM rubber outer sleeve
- Metal banjo fitting at end 1
- Metal female fitting with bubble flare at end 2
- End 2 thread size: M10-1.00
- Overall length: 32.913 in. (836 mm)
- Includes gasket or seal
- Centric Premium Brake Hydraulic Hoses line
Product Details
Centric Premium Brake Hydraulic Hoses are part of Centric Parts’ brake hydraulic program, which covers brake hoses, master and wheel cylinders, caliper and wheel cylinder repair kits, and remanufactured power boosters. Part number 150.22012 is built for the rear left brake hose location on the Land Rover Range Rover and follows the listed OE-style connection layout with a banjo end and a female bubble-flare end. This hose is a direct-fit service part for 2006-2012 Land Rover Range Rover rear left brake hose replacement needs.
This part cross-references Dorman - First Stop H621521 for the same application.
Common Repair Uses
- Brake fluid seepage at the rear left hose
- Cracked or aged rubber brake hose material
- Soft or inconsistent brake pedal feel from hose deterioration
- Corrosion or wear at the hose end fittings
- Brake line service on a 2006-2012 Land Rover Range Rover rear left position
Installation Notes
Verify the rear left routing, fitting style, and thread sizes before installation. This hose uses a banjo connection on one end and a female M10-1.00 connection on the other, with no mounting hardware, brackets, shields, or clips included. Replace any sealing components required at the connection points and inspect adjacent brake lines for wear or contamination during service.
Quality Assurance
Centric brake hydraulic components are backed by a broad brake program focused on coverage and application-specific fitment. Confirm the part number 150.22012 against the vehicle’s brake hose configuration before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2011 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2010 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2009 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2008 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2007 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
| 2006 | Land Rover | Range Rover | Rear Left | Centric Premium Brake Hydraulic Hoses |
