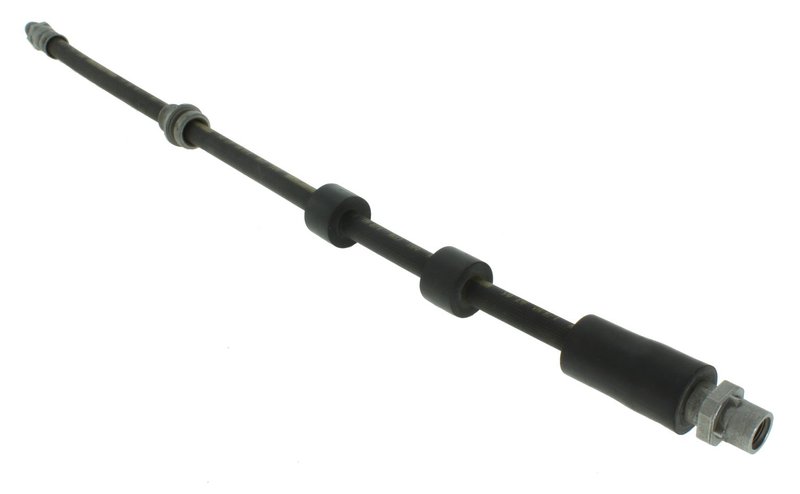

Centric 150.34020 Brake Hydraulic Hose - Front

Overview of Centric Premium Brake Hydraulic Hose 150.34020

The Centric Premium Brake Hydraulic Hose 150.34020 is designed for reliable brake fluid transfer in select BMW models. Engineered with durable materials and precise fittings, this brake hydraulic hose ensures consistent performance for vehicles like the BMW 325xi and 335i xDrive.

• Compatible with BMW 325xi, 328i xDrive, 328xi, 330xi, 335i xDrive, and 335xi
• DOT approved for safety compliance
• Black outer sleeve made of EPDM rubber for durability and heat resistance
• Metal fittings with bubble flare type on both ends (male and female)
• Overall length of 18.504 inches (470 mm)
• Includes one clip and two bumpers with one rubber sleeve for secure mounting
• Thread size M10-1.00 on both ends

About Centric Premium Brake Hydraulic Hoses

The Centric Premium Brake Hydraulic Hoses line focuses on delivering high-quality brake hoses that meet or exceed OEM specifications. This product line emphasizes durability and safety, using materials like EPDM rubber for the outer sleeve and metal fittings designed for precise connections. The 150.34020 hose is part of this line, providing a reliable replacement option for specific BMW brake systems.

Product Details and Specifications

This brake hydraulic hose features a black EPDM rubber outer sleeve, which offers resistance to heat, ozone, and brake fluid exposure. Both ends of the hose have metal fittings with bubble flare types—male on one end and female on the other—ensuring a secure and leak-free connection. The hose measures 18.504 inches (470 mm) in length, suitable for the brake systems of compatible BMW models. Included mounting hardware consists of one clip and two bumpers with a rubber sleeve, although no brackets, grommets, or seals are provided.

Common Applications and Issues Addressed

• Replacement of worn or cracked brake hydraulic hoses on BMW 325xi and 335i xDrive
• Resolving brake fluid leaks caused by damaged or deteriorated hoses
• Restoring proper brake fluid pressure and pedal feel
• Upgrading to DOT-approved components for safety compliance
• Addressing hose swelling or bulging under pressure

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Carefully remove the old brake hydraulic hose, taking care to avoid brake fluid spillage. The Centric 150.34020 hose includes one clip and two bumpers with a rubber sleeve for mounting; however, additional brackets or grommets are not included and may need to be reused or sourced separately. Verify that the bubble flare fittings align correctly with the brake system connections and torque fittings to manufacturer specifications. Bleed the brake system thoroughly after installation to remove air and ensure proper brake function.

Quality Assurance and Warranty

The Centric Premium Brake Hydraulic Hose 150.34020 is DOT approved, meeting federal safety standards for brake components. Manufactured with high-quality EPDM rubber and metal fittings, this hose is designed for durability and reliable performance. While specific warranty details are not provided, Centric products typically adhere to industry standards for quality and reliability.
