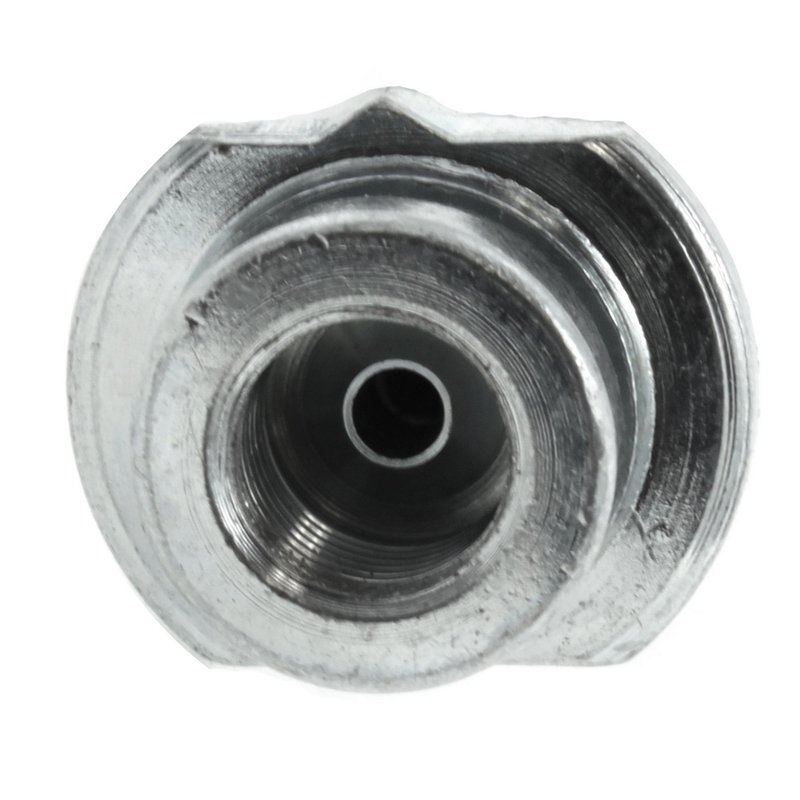

Centric 150.42428 Brake Hydraulic Hose - Rear Left Lower
Centric Brake Hydraulic Hose for Nissan Juke
The Centric Premium Brake Hydraulic Hose, part number 150.42428, is a DOT approved rear brake hose built for the 2011-2017 Nissan Juke, rear left lower position. It uses a black EPDM rubber outer sleeve with metal fittings for a direct-fit brake hydraulic replacement.
Key Features
- DOT approved brake hydraulic hose
- Black EPDM rubber outer sleeve
- Banjo end 1 fitting with metal construction
- Female inverted end 2 fitting with metal construction
- Gasket or seal included
- Overall length: 12.717 in. / 323.00 mm
- Centric Premium Brake Hydraulic Hoses line
Product Details
Centric Premium Brake Hydraulic Hoses are part of Centric’s brake hydraulic program, which covers master cylinders, wheel cylinders, brake hoses, repair kits, and remanufactured power boosters. This hose is specified for the rear left lower location on the Nissan Juke and is identified by part number 150.42428. It also cross-references Dorman - First Stop H621721 for the same application.
Common Problems This Hose Can Address
- Cracked or aging brake hose rubber
- Brake fluid seepage at the hose connection
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Restricted brake fluid flow from an internally worn hose
- Corrosion or wear at the original hose fittings
Installation Notes
Fits 2011-2017 Nissan Juke, rear left lower. Confirm the banjo and female inverted connections, along with the M10-1.00 thread size on end 2 and 10.0 mm thread size on end 1, before installation. Mounting hardware, brackets, grommets, and shield are not included. A clip and gasket or seal are included; the listed banjo bolt part number is 117.99023 and the washer part number is 117.99008.
Quality Assurance
This Centric brake hydraulic hose is DOT approved and built to match the specified brake hydraulic application for the Nissan Juke. The Centric brake hydraulic program is organized to cover a broad range of brake hydraulic service parts, supporting accurate replacement selection by vehicle and position.
| Brand | Centric |
| Part Number | 150.42428 |
| Position | Centric Premium Brake Hydraulic Hoses, Rear Left Lower |
| DOT Approved | Yes |
| Color | Black |
| Outer Sleeve Material | Epdm rubber |
| Mounting Hardware Included | No |
| Grommets Included | No |
| Bracket Included | No |
| Gasket Or Seal Included | Yes |
| Bracket Quantity | 0 |
| Shield Included | No |
| End 1 Fitting Material | Metal |
| End 1 Fitting Type | Banjo |
| End 2 Fitting Material | Metal |
| End 2 Fitting Type | Female |
| Teflon Lined | No |
| End 2 Flare Type | Inverted |
| Overall Length | 12.717 |
| Overall Length | 323.00 |
| End 2 Thread Size | M10-1.00 |
| End 1 Thread Size | 10.0mm |
| Banjo Bolt Part # [cntrc] | 117.99023 |
| Banjo Bolt [cntrc] | Yes |
| Clip Qty [cntrc] | 1 |
| Clip [cntrc] | Yes |
| Washer Part # [cntrc] | 117.99008 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2016 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2015 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2014 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2013 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2012 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
| 2011 | Nissan | Juke | AWD | Rear Left Lower | Centric Premium Brake Hydraulic Hoses |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
