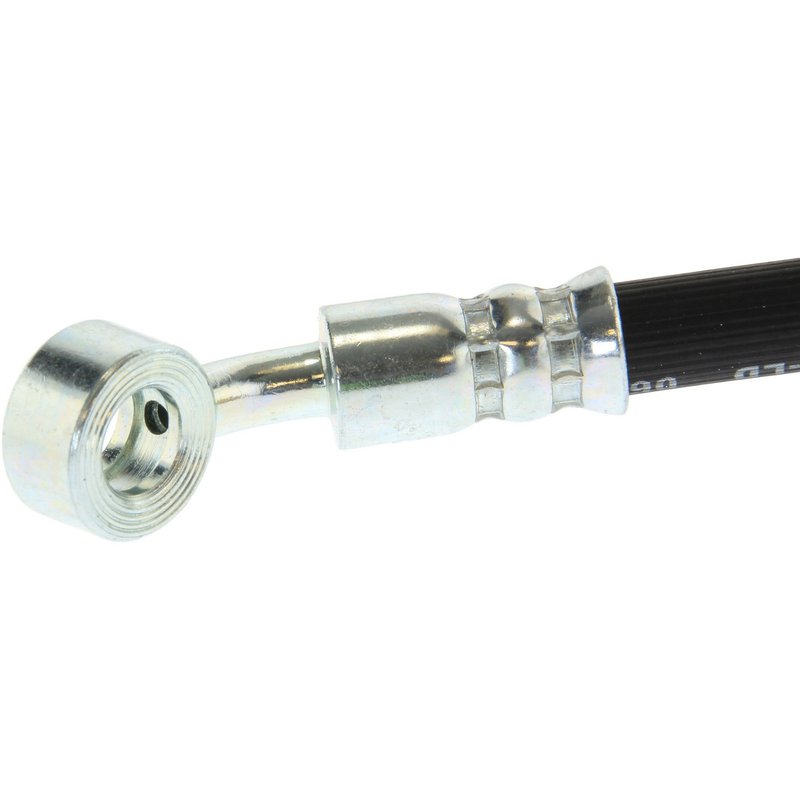

Centric 150.76017 Brake Hydraulic Hose - Front
| Brand | Centric 150.76017 |
|---|---|
| Position | Front |
| DOT Approved | Yes |
| Color | Black |
| Outer Sleeve Material | Epdm rubber |
| Mounting Hardware Included | No |
| Grommets Included | No |
| Bracket Included | No |
| Gasket Or Seal Included | Yes |
| Bracket Quantity | 0 |
| Shield Included | No |
| End 1 Fitting Material | Metal |
| End 1 Fitting Type | Banjo |
| End 2 Fitting Material | Metal |
| End 2 Fitting Type | Female |
| Teflon Lined | No |
| End 2 Flare Type | Inverted |
| Overall Length | 16.339 |
| Overall Length | 415.00 |
| End 2 Thread Size | M10-1.00 |
| End 1 Thread Size | 10.0mm |
| Clip Qty [cntrc] | 1 |
| Clip [cntrc] | Yes |
| Fits | — |
DOT approved. Meets road-use standards for dependable hydraulic performance.
EPDM rubber sleeve. Resists wear while helping protect the hose from the elements.
Banjo and female ends. Metal fittings provide a secure, precise connection.
Cross-references Centric Parts 150.76017, Dorman - First Stop H620348 and 225192 for the same application. See all 8.
Centric Brake Hydraulic Hose 150.76017
Centric Premium Brake Hydraulic Hoses are built for direct brake line service with DOT approval, an EPDM rubber outer sleeve, and metal end fittings for secure hydraulic connections. Part number 150.76017 is a brake hydraulic hose for applications that require a banjo fitting on one end and a female inverted fitting on the other.
Key Features
- DOT approved brake hydraulic hose
- Black EPDM rubber outer sleeve
- Metal banjo fitting on End 1
- Metal female inverted fitting on End 2
- Gasket or seal included
- Black finish for a clean OE-style appearance
- Overall length: 16.339 in. / 415.00 mm
- Centric Premium Brake Hydraulic Hoses line for brake hose replacement service
Product Details
Centric 150.76017 is a brake hydraulic hose engineered for brake system fluid transfer where a flexible hose is required between the hard line and the brake assembly. The hose uses EPDM rubber for the outer sleeve, metal fittings at both ends, and an inverted flare connection on the female side with M10-1.00 thread size. This part number 150.76017 is listed with a banjo end, a female inverted end, and a seal included for the connection point.
The Centric Premium Brake Hydraulic Hoses product line focuses on brake hydraulic service parts, including hoses, master and wheel cylinders, and related repair components. For drivers searching brake hose replacement for Honda Civic or similar brake hydraulic applications, Centric 150.76017 provides a direct-fit style service part built around the listed connection types and dimensions.
This part cross-references Dorman - First Stop H620348 for the same application.
What It Helps Address
- Brake fluid seepage at a worn hose connection
- Cracked or deteriorated rubber brake hose material
- Restricted brake fluid flow from hose damage or age
- Soft or inconsistent brake pedal feel caused by hose wear
- Corrosion or fitment issues at the hose end fittings
Installation Notes and Tips
Verify the banjo and inverted flare connection types, thread sizes, and overall length before installation. Confirm the hose routing, clip location, and mounting points match the vehicle brake layout. This hose includes a gasket or seal, while mounting hardware, grommets, brackets, and shield components are not included.
Compatible With select Honda Civic brake hose applications and other vehicles listed by interchange data. Fits should be confirmed by matching the OE-style connection details and brake line routing for the specific vehicle.
Quality Assurance
Centric brake hydraulic components are part of a broad brake service program that covers master cylinders, wheel cylinders, hoses, repair kits, and remanufactured boosters. Part number 150.76017 is DOT approved and built to the listed hydraulic hose specifications for brake system service.
