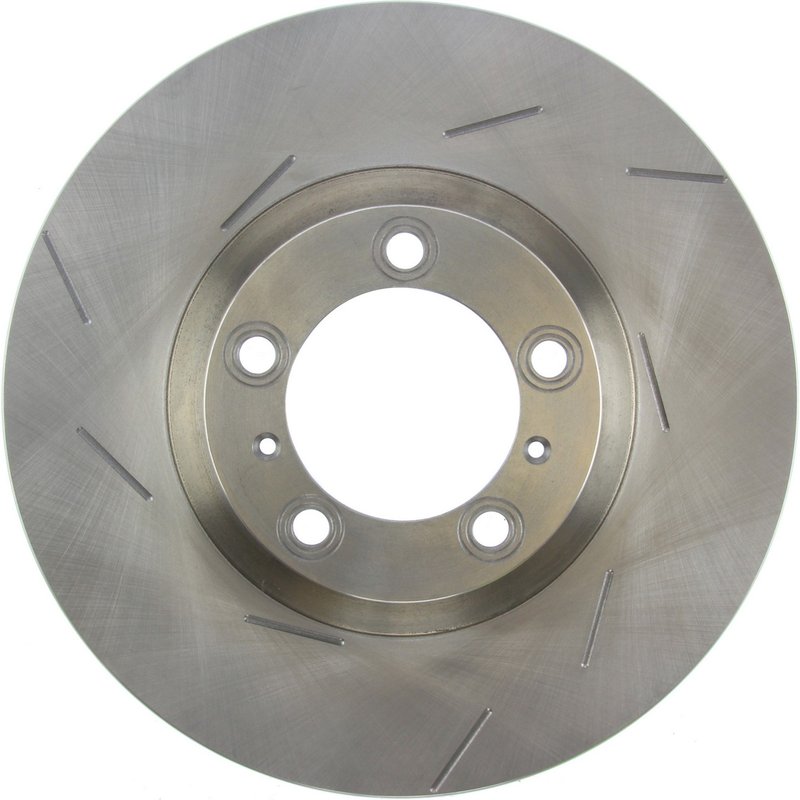

Centric 226.37070 Disc Brake Rotor - Front Left

Overview of Centric C-TEK Standard Slotted Disc Brake Rotors

The Centric C-TEK Standard Slotted Disc Brake Rotor 226.37070 is engineered for Porsche Panamera models requiring reliable braking performance. Designed with vented construction and slotted surfaces, this rotor supports effective heat dissipation and consistent stopping power under demanding conditions.

• Compatible with Porsche Panamera vehicles
• Part number 226.37070 for precise identification
• Vented rotor design with curved vane style for improved cooling
• Slotted surface type enhances brake pad bite and debris removal
• Floating disc mounting for controlled rotor movement
• Overall diameter of 360 mm (14.173 inches) and nominal thickness of 35.880 mm (1.413 inches)
• Five lug holes with 15.5 mm diameter and 130 mm bolt circle diameter
• Weight approximately 31.6 lbs (14.32 kgs)

Detailed Product Description and Specifications

This Centric C-TEK Standard Slotted Disc Brake Rotor (part number 226.37070) is specifically designed for Porsche Panamera models, ensuring compatibility and optimal fitment. The rotor features a vented design with curved vanes that promote efficient airflow to reduce heat buildup during braking. The slotted surface improves pad contact and helps evacuate gases and debris, contributing to consistent brake performance.

Key dimensions include an outside diameter of 360 mm (14.173 inches), nominal thickness of 35.880 mm (1.413 inches), and an overall height of 68.6 mm (2.701 inches). The rotor mounts using a floating disc system with five lug holes sized at 15.5 mm diameter on a 130 mm bolt circle diameter, ensuring secure installation. The center hole diameter measures 98 mm (3.858 inches), and the rotor includes two miscellaneous holes for additional mounting or alignment purposes.

About the C-TEK Standard Slotted Disc Brake Rotors Line

The C-TEK Standard Slotted Disc Brake Rotors line by Centric offers a balance of performance and durability for vehicles requiring enhanced braking capabilities. The slotted design aids in maintaining clean rotor surfaces and improving pad bite, while the vented construction helps manage heat dissipation. This product line is suitable for drivers seeking reliable replacement rotors that meet OEM specifications without additional ABS tone ring or bearing components.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Porsche Panamera models
• Improves braking consistency by reducing brake fade under heavy use
• Helps eliminate brake noise caused by glazing or uneven rotor surfaces
• Addresses vibration issues related to rotor thickness variation
• Supports enhanced pad performance through slotted surface design

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness of 34.0 mm (1.339 inches) before installation
• Verify compatibility with Porsche Panamera brake system and lug pattern (5 lug holes, 15.5 mm diameter)
• Use proper torque specifications for mounting bolts on the 130 mm bolt circle diameter
• Inspect brake pads and hardware for wear during rotor replacement
• Clean rotor surface before installation to remove any protective coatings

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Slotted Disc Brake Rotors to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 226.37070 are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Users should consult product documentation or Centric directly for exact warranty terms.
