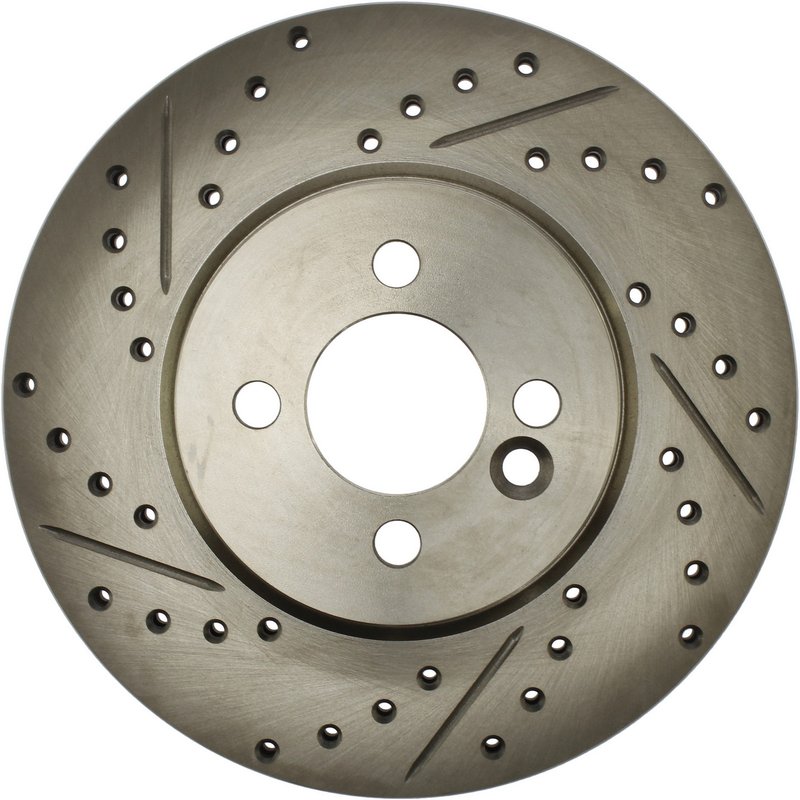

Centric 227.34101 Disc Brake Rotor - Front

Overview of Centric C-TEK Cross-Drilled & Slotted Rotors

The Centric C-TEK Standard Cross-Drilled & Slotted Disc Brake Rotor 227.34101 is engineered for reliable braking performance on Mini Cooper vehicles. Designed with vented construction and a slotted x drilled surface, this rotor enhances heat dissipation and brake pad bite for consistent stopping power.

• Compatible with Mini Cooper models
• Part number 227.34101 for precise identification
• Vented disc brake rotor design for improved cooling
• Cross-drilled and slotted surface to reduce brake fade
• Floating disc mounting for better rotor alignment
• Overall diameter of 11.575 inches (294 mm)
• Nominal thickness of 0.862 inches (21.9 mm)
• Discard thickness at 0.803 inches (20.4 mm)
• Four stud/lug holes with 0.638 inch (16.2 mm) diameter
• ABS tone ring not included

Product Line Details: C-TEK Standard Cross-Drilled & Slotted Rotors

The C-TEK Standard Cross-Drilled & Slotted Disc Brake Rotors line by Centric offers rotors designed to balance performance and durability. Featuring vented rotors with straight vane style and a floating disc mounting system, these rotors provide effective heat management and consistent braking. The cross-drilled and slotted surface pattern helps maintain pad contact and reduces gas buildup, making them suitable for daily driving conditions on Mini Cooper vehicles.

Technical Specifications and Features

This Centric rotor has an outside diameter of 11.575 inches (294 mm) and an overall height of 1.760 inches (44.7 mm). The nominal thickness is 0.862 inches (21.9 mm), with a discard thickness of 0.803 inches (20.4 mm), indicating when replacement is necessary. The rotor includes four stud/lug holes sized at 0.638 inches (16.2 mm) diameter, with a mounting bolt hole circle diameter of 100 mm (3.937 inches). The center hole diameter measures 2.524 inches (64.1 mm), and the hat ID is 5.528 inches (140.4 mm). The rotor weighs approximately 15.5 lbs (7.05 kgs), and features a vented design with straight vanes to optimize airflow and cooling.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mini Cooper models
• Improves braking performance by reducing heat buildup and brake fade
• Addresses brake noise and vibration caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking operation
• Enhances pad bite and water dispersion in wet conditions

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is above the discard thickness specification of 0.803 inches (20.4 mm). This rotor uses a floating disc mounting system and does not include bearings or ABS tone rings, so confirm compatibility with your Mini Cooper's existing hardware. Proper torque specifications should be followed for mounting bolts to maintain rotor alignment and performance.

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM specifications for fit, form, and function. The C-TEK Standard Cross-Drilled & Slotted Disc Brake Rotor 227.34101 undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the original product documentation or Centric directly.
