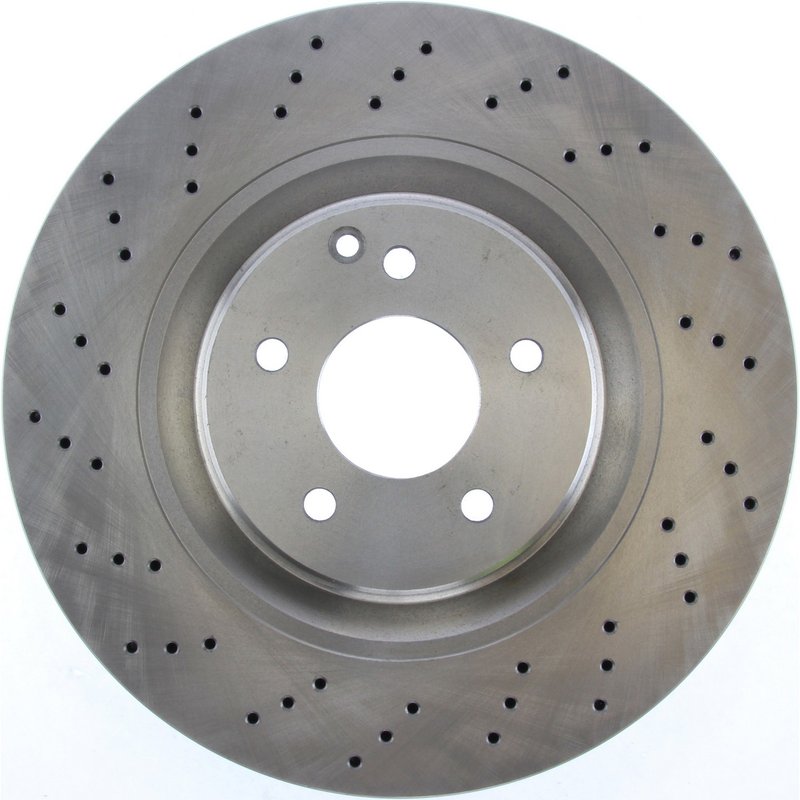

Centric 228.35052 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Cross-Drilled Disc Brake Rotors

The Centric C-TEK Standard Cross-Drilled Disc Brake Rotor 228.35052 is engineered for reliable braking performance on select Mercedes-Benz models. Designed to meet OEM specifications, this vented and cross-drilled rotor provides consistent stopping power and heat dissipation for vehicles like the CLK500, CLK550, and SLK55 AMG.

• Cross-drilled surface for improved heat dissipation and reduced brake fade
• Vented rotor design with curved vanes to enhance airflow and cooling
• Nominal thickness of 1.181 inches (30.000 mm) with discard thickness at 1.079 inches (27.400 mm)
• Outside diameter measures 13.583 inches (345.000 mm) for precise fitment
• Floating disc mounting with 5 lug holes, 0.520 inch (13.200 mm) diameter each
• Center hole diameter of 2.638 inches (67.000 mm) and mounting bolt hole circle diameter of 4.409 inches (112.000 mm)
• Weight approximately 26.72 lbs (12.15 kgs) for balanced performance
• ABS tone ring not included, bearings not included

About the C-TEK Standard Cross-Drilled Disc Brake Rotors Line

The C-TEK Standard Cross-Drilled Disc Brake Rotors line by Centric is designed to offer a balance of performance and durability for daily driving conditions. Featuring cross-drilled surfaces and vented construction, these rotors help maintain optimal braking temperatures and reduce the risk of brake fade. This product line is engineered to meet or exceed OEM standards, making it a suitable replacement for Mercedes-Benz vehicles requiring reliable stopping power without modifications.

Product Details and Specifications

This disc brake rotor is vented with curved vanes that promote efficient airflow, helping to dissipate heat generated during braking. The cross-drilled surface enhances water and gas evacuation, improving brake pad contact and reducing fade under heavy use. With a nominal thickness of 1.181 inches and a discard thickness of 1.079 inches, the rotor ensures safe and effective braking performance throughout its service life. The rotor’s outside diameter of 13.583 inches and precise mounting dimensions guarantee compatibility with Mercedes-Benz CLK500, CLK550, and SLK55 AMG models. The floating disc mounting design allows for slight movement to reduce stress and improve rotor longevity.

Compatible Vehicles and Common Applications

• Replacement rotor for Mercedes-Benz CLK500 brake system maintenance
• Suitable for Mercedes-Benz CLK550 requiring vented, cross-drilled rotors
• Used in Mercedes-Benz SLK55 AMG for enhanced brake cooling and performance
• Addresses issues such as brake fade during extended driving
• Resolves rotor warping caused by excessive heat buildup

Installation Notes and Tips

Ensure the rotor surface is clean and free of debris before installation. Verify the rotor thickness is within specifications before mounting. Use proper torque settings on lug nuts to avoid rotor distortion. Since this rotor does not include bearings or an ABS tone ring, reuse existing components or replace as necessary. It is recommended to replace brake pads simultaneously to ensure optimal braking performance.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Cross-Drilled Disc Brake Rotors to meet strict quality standards and OEM specifications. While specific warranty details are not provided here, Centric products typically come with a limited warranty covering defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
