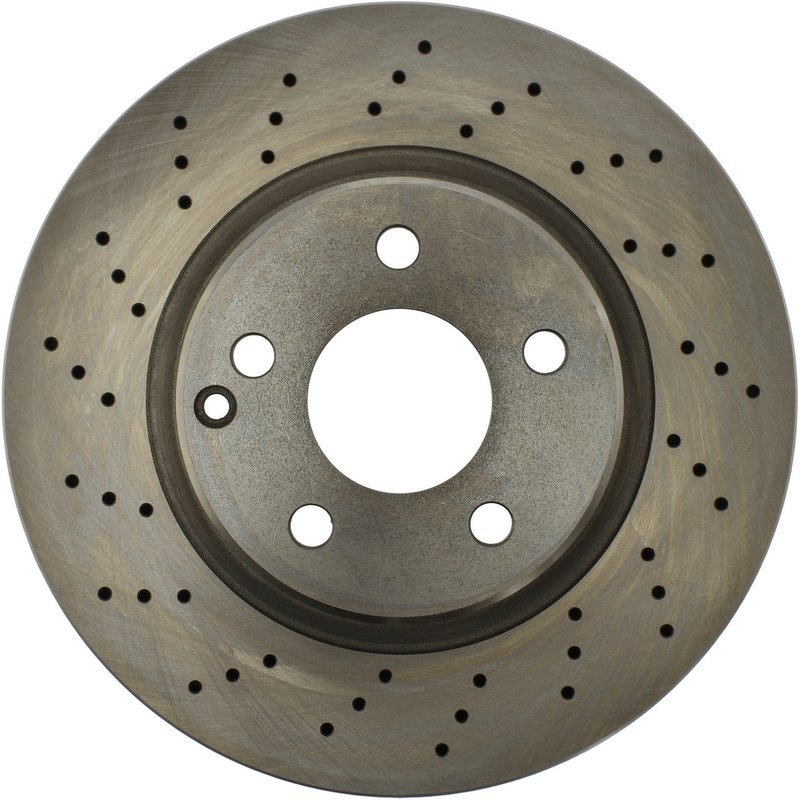

Centric 228.35064 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Cross-Drilled Disc Brake Rotors

The Centric C-TEK Standard Cross-Drilled Disc Brake Rotor 228.35064 is engineered for reliable braking performance on select Mercedes-Benz models. Designed specifically for the CL500, S350, S430, and S500, this vented rotor offers enhanced heat dissipation and consistent stopping power.

• Cross-drilled surface for improved heat dissipation
• Vented rotor design with curved vanes to reduce brake fade
• Nominal thickness of 1.102 inches (28.000 mm) with discard thickness at 1.024 inches (26.000 mm)
• Overall height of 2.992 inches (76.000 mm) and outside diameter of 12.205 inches (310.000 mm)
• Floating disc mounting with 5 lug holes (0.591 inches / 15.000 mm diameter)
• Center hole diameter of 2.638 inches (67.000 mm)
• Weight approximately 19 lbs (8.64 kgs)
• ABS tone ring and bearings not included

Product Line Details: C-TEK Standard Cross-Drilled Disc Brake Rotors

The C-TEK Standard Cross-Drilled Disc Brake Rotors line by Centric focuses on delivering rotors with cross-drilled surfaces to enhance cooling and reduce brake fade under demanding conditions. This product line features vented rotors with curved vanes that improve airflow and heat dissipation, making them suitable for performance-oriented and luxury vehicles like the Mercedes-Benz CL500, S350, S430, and S500. The 228.35064 rotor maintains strict OEM specifications for fit and function.

Technical Specifications and Features

This disc brake rotor features a vented design with curved vanes that promote efficient heat transfer, helping to maintain braking performance during extended use. The cross-drilled surface reduces heat buildup and assists in water dispersion for improved wet-weather braking. With a nominal thickness of 1.102 inches (28.000 mm) and a discard thickness of 1.024 inches (26.000 mm), the rotor ensures durability and safety throughout its service life. The overall height of 2.992 inches (76.000 mm) and outside diameter of 12.205 inches (310.000 mm) are engineered to match the exact fitment requirements of the specified Mercedes-Benz models. The rotor mounts using a floating disc system with a 5-lug hole pattern, each hole measuring 0.591 inches (15.000 mm) in diameter, and a center hole diameter of 2.638 inches (67.000 mm).

Compatible Vehicles and Applications

• Mercedes-Benz CL500
• Mercedes-Benz S350
• Mercedes-Benz S430
• Mercedes-Benz S500

This rotor is designed to replace original equipment on these models, providing consistent braking performance and maintaining vehicle safety standards.

Common Issues Addressed by This Rotor

• Brake fade caused by excessive heat buildup
• Uneven rotor wear leading to vibration or noise
• Reduced braking efficiency in wet conditions
• Warped or damaged rotors affecting stopping power
• Compatibility issues with OEM brake components

Installation Notes and Tips

Ensure the rotor thickness is above the discard thickness of 1.024 inches (26.000 mm) before installation. Clean the rotor surface to remove any protective coatings or contaminants. Verify the 5-lug hole pattern and center hole diameter match the vehicle hub. Since this rotor does not include bearings or an ABS tone ring, reuse existing components or replace as necessary. Proper torque specifications should be followed when mounting the rotor to avoid warping.

Quality Assurance and Warranty

Centric manufactures the C-TEK Standard Cross-Drilled Disc Brake Rotors to meet or exceed OEM standards for fit, form, and function. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
