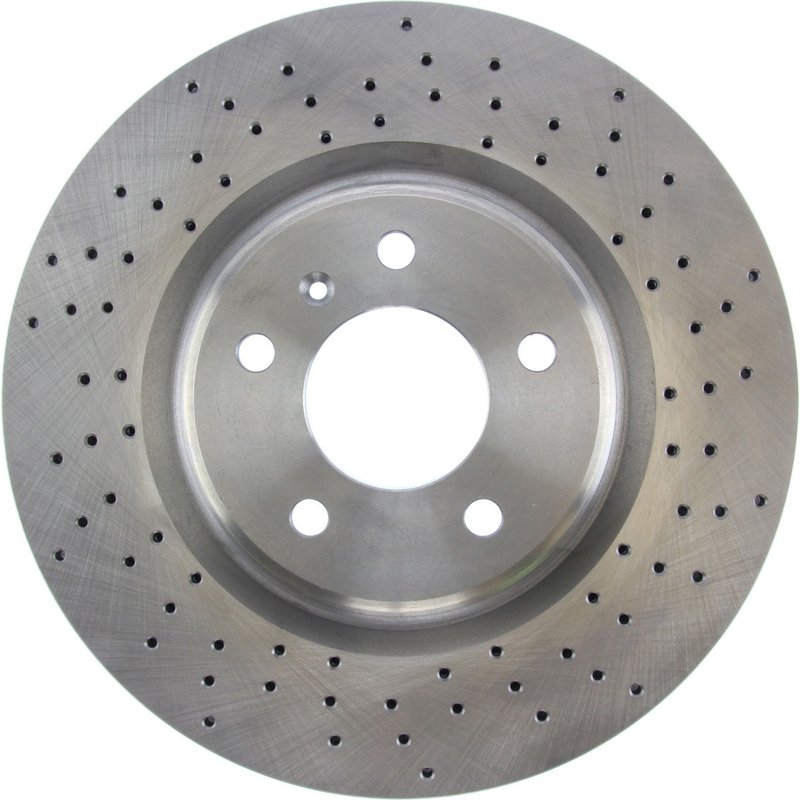

Centric 228.62091 Disc Brake Rotor - Front

Overview of Centric C-TEK Standard Cross-Drilled Disc Brake Rotors

The Centric C-TEK Standard Cross-Drilled Disc Brake Rotor 228.62091 is engineered for reliable braking performance on select Mercedes-Benz and Pontiac models. Designed with precision, this vented and cross-drilled rotor supports effective heat dissipation and consistent stopping power.

• Cross-drilled surface for improved heat dissipation
• Vented rotor design with curved vanes for enhanced cooling
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.181 inches (30.000 mm)
• Overall height of 2.059 inches (52.300 mm)
• Outside diameter measuring 12.717 inches (323.000 mm)
• Floating disc mounting with 5 lug holes (0.565 inch diameter)
• Compatible with Mercedes-Benz GLE450 and Pontiac Grand Prix

Product Line Details: C-TEK Standard Cross-Drilled Disc Brake Rotors

The C-TEK Standard Cross-Drilled Disc Brake Rotors line by Centric focuses on delivering rotors with cross-drilled surfaces to aid in heat reduction and brake fade resistance. This product line features vented rotors with curved vanes that promote airflow and cooling during braking. The 228.62091 rotor exemplifies these characteristics, providing a balance of durability and performance for vehicles like the Mercedes-Benz GLE450 and Pontiac Grand Prix.

Technical Specifications and Features

This disc brake rotor features a vented design with curved vanes that optimize airflow to reduce heat buildup during braking. The cross-drilled surface enhances water and gas dispersion, improving braking consistency in various conditions. The rotor has a nominal thickness of 1.260 inches (32.000 mm) and a discard thickness of 1.181 inches (30.000 mm), ensuring safe replacement intervals. Its overall height is 2.059 inches (52.300 mm), and the outside diameter is 12.717 inches (323.000 mm). The rotor mounts using a floating disc mounting system with a 5-lug hole pattern, each hole measuring 0.565 inches (14.350 mm) in diameter, and a mounting bolt hole circle diameter of 4.528 inches (115.000 mm). This rotor does not include ABS tone rings or bearings.

Compatible Vehicles and Applications

• Replacement rotor for Mercedes-Benz GLE450 models requiring part number 228.62091
• Suitable for Pontiac Grand Prix vehicles matching the specified dimensions and mounting pattern
• Ideal for addressing brake rotor wear, vibration, and heat-related braking issues
• Designed for drivers seeking OEM-style fit and function

Installation Notes and Tips

• Ensure rotor thickness is above discard thickness before installation
• Verify compatibility with vehicle make and model, specifically Mercedes-Benz GLE450 and Pontiac Grand Prix
• Inspect brake pads and hardware during rotor replacement for optimal performance
• Follow manufacturer torque specifications for mounting bolts
• Clean rotor surface before installation to remove any protective coatings

Quality Assurance and Warranty

Centric provides quality-tested rotors manufactured to meet or exceed OEM specifications. The C-TEK Standard Cross-Drilled Disc Brake Rotor 228.62091 undergoes rigorous inspection to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Centric typically offers coverage against defects in materials and workmanship. Consult product documentation or Centric directly for warranty terms.
