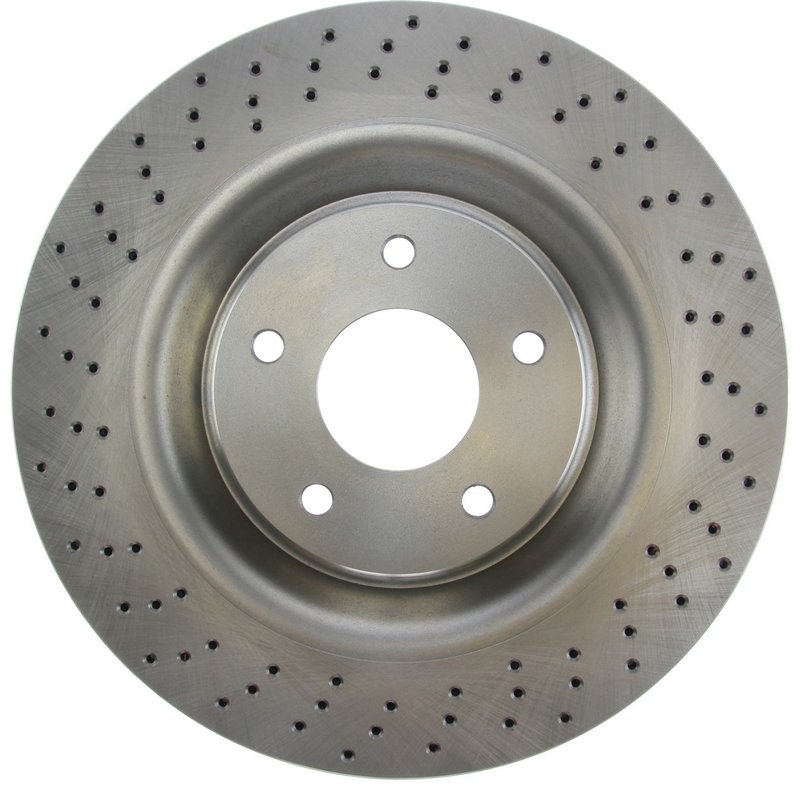

Centric 228.62102 Disc Brake Rotor - Front

Overview of Centric C-TEK Cross-Drilled Disc Brake Rotor

The Centric C-TEK Standard Cross-Drilled Disc Brake Rotor 228.62102 is engineered for Chevrolet Corvette models requiring reliable braking performance. This vented, cross-drilled rotor is designed to maintain optimal heat dissipation and consistent stopping power under demanding conditions.

• Cross-drilled surface for improved heat dissipation
• Vented rotor design to reduce brake fade
• Nominal thickness of 1.260 inches (32.000 mm)
• Discard thickness at 1.181 inches (30.000 mm)
• Outside diameter of 13.976 inches (355.000 mm)
• Floating disc mounting for enhanced rotor alignment
• Five stud/lug holes with 0.528 inch (13.400 mm) diameter
• Mounting bolt hole circle diameter of 4.724 inches (120.000 mm)
• Center hole diameter of 2.783 inches (70.700 mm)
• Weight approximately 26.05 lbs (11.84 kgs)

Product Line Details: C-TEK Standard Cross-Drilled Disc Brake Rotors

The C-TEK Standard Cross-Drilled Disc Brake Rotors by Centric are designed to provide a balance of performance and durability. Featuring a cross-drilled surface, these rotors help dissipate heat more effectively than standard rotors, reducing the risk of brake fade during extended use. The vented rotor design further enhances cooling by allowing air to flow between the rotor faces. This product line is suitable for drivers seeking dependable braking components that meet OEM specifications for vehicles like the Chevrolet Corvette.

Technical Specifications and Features

This disc brake rotor has a nominal thickness of 1.260 inches (32.000 mm) and a discard thickness of 1.181 inches (30.000 mm), ensuring it meets safety and performance standards. The rotor’s overall height measures 1.791 inches (45.500 mm), and it features a 13.976 inch (355.000 mm) outside diameter, matching the precise fitment requirements for Chevrolet Corvette models. The floating disc mounting system allows for slight movement to reduce stress and improve rotor longevity. The rotor does not include an ABS tone ring or bearings, so these components must be sourced separately if required.

Compatible Applications and Common Use Cases

• Replacement rotor for Chevrolet Corvette brake systems
• Addresses brake fade caused by overheating during aggressive driving
• Resolves rotor warping and vibration issues
• Improves braking consistency and pedal feel
• Suitable for vehicles requiring vented, cross-drilled rotors

Installation Notes and Tips

Ensure the rotor thickness is measured before installation to confirm it is above the discard thickness of 1.181 inches (30.000 mm). Properly clean the rotor surface to remove any protective coatings or debris. Verify the mounting bolt hole circle diameter of 4.724 inches (120.000 mm) and stud/lug hole specifications to ensure compatibility with your Chevrolet Corvette. Since this rotor does not include bearings or an ABS tone ring, inspect and reuse or replace these components as necessary. Follow manufacturer torque specifications when securing the rotor.

Quality Assurance and Warranty Information

Centric provides rotors manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The C-TEK Standard Cross-Drilled Disc Brake Rotor 228.62102 undergoes rigorous quality control to maintain consistent dimensions and material integrity. Warranty coverage details should be confirmed with the original product documentation or Centric directly.
