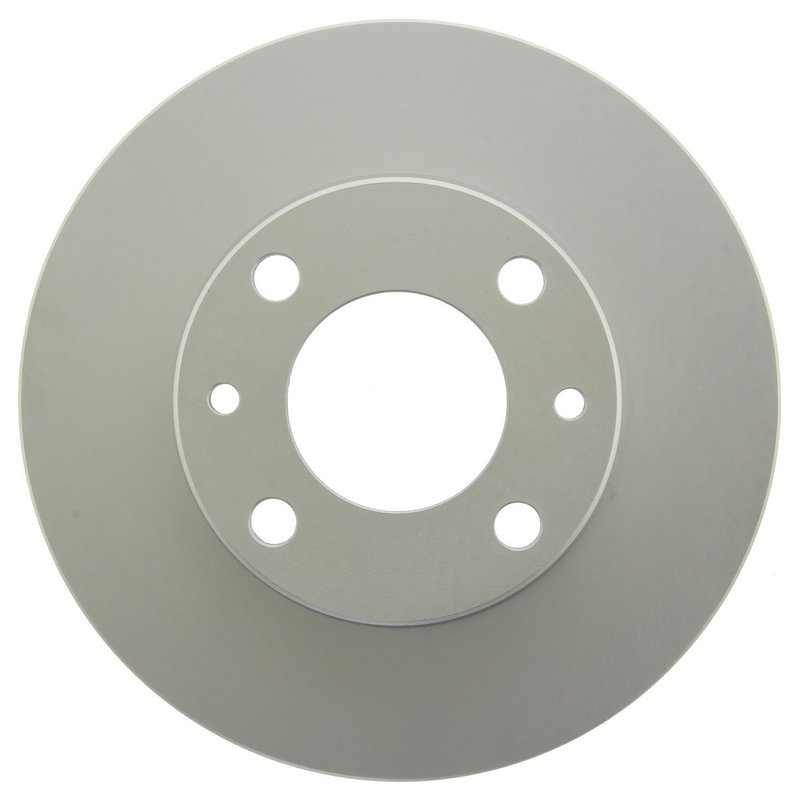

Centric 320.04000F Disc Brake Rotor - Front or Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating (Part Number 320.04000F) offer a fully coated solid rotor solution designed to resist corrosion and provide consistent braking performance. These rotors are engineered for vehicles requiring a smooth surface finish and reliable disc brake operation.

• Fully coated disc and hat finish for enhanced corrosion resistance
• Solid rotor design with smooth surface type for consistent braking
• Nominal thickness of 10.9 mm (0.429 inches) with discard thickness at 9.0 mm (0.354 inches)
• Outside diameter of 227 mm (8.937 inches) and overall height of 45.7 mm (1.799 inches)
• Four stud/lug holes with a diameter of 13 mm (0.512 inches) and mounting bolt hole circle diameter of 98 mm (3.858 inches)

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line focuses on providing rotors with a full protective coating on both the disc and hat surfaces. This coating helps to minimize rust and corrosion, extending the rotor's service life and maintaining a clean appearance. The solid rotor design and smooth surface finish are intended for standard braking applications where durability and consistent performance are required.

Technical Specifications and Features

This rotor features a nominal drum diameter of 117.5 mm (4.626 inches) and a center hole diameter of 62 mm (2.441 inches). It includes two miscellaneous holes and a floating/dih disc mounting type. Weighing approximately 3.1 kg (6.82 lbs), the rotor is designed without ABS tone rings or included bearings, making it suitable for specific vehicle applications that do not require these components.

Common Applications and Problem Solving

• Replacement for worn or warped disc brake rotors
• Addressing rotor corrosion and rust buildup on braking surfaces
• Improving braking consistency by restoring smooth rotor surfaces
• Eliminating brake noise caused by uneven or damaged rotors
• Maintaining proper rotor thickness to ensure safe braking performance

Installation Notes and Tips

• Verify compatibility with your vehicle’s make and model before installation
• Ensure rotor thickness meets minimum discard thickness specifications (9.0 mm)
• Clean mounting surfaces thoroughly to prevent uneven rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Check for proper alignment of the four stud/lug holes and mounting bolt circle diameter

Quality Assurance and Warranty

Centric rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The full coating process provides additional protection against corrosion, contributing to longer rotor life. While specific warranty details for part number 320.04000F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
