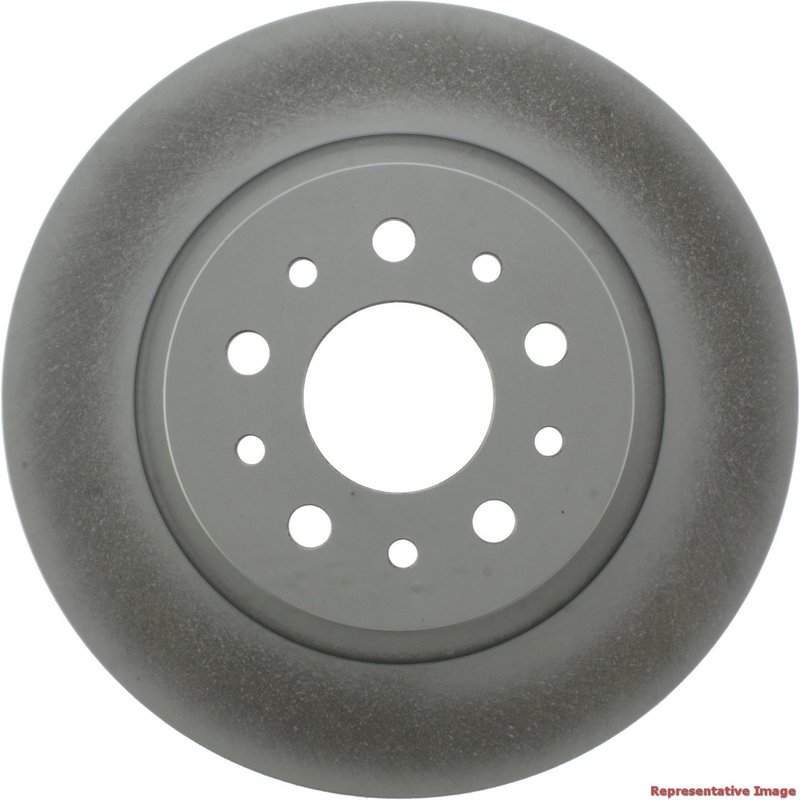

Centric 320.04003F Disc Brake Rotor - Rear

Overview of Centric GCX Elemental Protection Disc Brake Rotors

The Centric GCX Elemental Protection Disc Brake Rotor (part number 320.04003F) is engineered for reliable braking performance on Fiat 500L vehicles. Featuring a fully coated disc and hat finish, this rotor offers enhanced corrosion resistance and durability for everyday driving conditions.

• Compatible with Fiat 500L models
• Part number: 320.04003F
• Fully coated disc and hat for corrosion protection
• Solid rotor design with smooth surface finish
• Floating disc mounting for improved heat dissipation
• Outside diameter: 10.394 inches (264 mm)
• Nominal thickness: 0.394 inches (10.000 mm)
• Discard thickness: 0.315 inches (8.000 mm)
• 5 lug holes with 0.512 inch (13 mm) diameter

Product Line Details: Centric GCX Elemental Protection Disc Brake Rotors - Full Coating

The Centric GCX Elemental Protection Disc Brake Rotors - Full Coating line is designed to provide enhanced elemental protection through a complete coating process on both the disc and hat surfaces. This full coating helps prevent rust and corrosion, extending the rotor's service life and maintaining consistent braking performance. This product line is ideal for drivers seeking a reliable replacement rotor that withstands environmental exposure while maintaining OEM specifications.

Technical Specifications and Features

This disc brake rotor features a solid design with a smooth surface type, ensuring consistent pad contact and braking efficiency. The rotor measures 10.394 inches (264 mm) in outside diameter with a nominal thickness of 0.394 inches (10.000 mm), and a discard thickness of 0.315 inches (8.000 mm). The overall height is 1.598 inches (40.600 mm), and it includes a floating disc mounting system to help manage heat and reduce warping. The hat finish is coated, matching the disc's full coating for comprehensive protection. It has 5 stud/lug holes with a diameter of 0.512 inches (13 mm) and a mounting bolt hole circle diameter of 3.858 inches (98 mm). The center hole diameter is 2.323 inches (59 mm), and the rotor weighs approximately 8.4 lbs (3.82 kg).

Applications and Problem Solving

• Replacement rotor for worn or warped disc brakes on Fiat 500L
• Addresses corrosion issues caused by road salt and moisture
• Improves braking consistency by maintaining smooth rotor surface
• Helps reduce brake noise and vibration from uneven rotor wear
• Prevents premature rotor failure due to rust and environmental damage

Installation Notes and Tips

• Ensure compatibility with Fiat 500L before installation
• Check rotor thickness and discard limits to confirm replacement necessity
• Clean hub surface before mounting to prevent runout
• Torque lug nuts to manufacturer specifications for safety
• Inspect brake pads and replace if worn to optimize rotor performance

Quality Assurance and Warranty

Centric brake rotors are manufactured to meet or exceed OEM standards, ensuring reliable performance and durability. The full coating process provides added protection against corrosion, extending the rotor's lifespan. While specific warranty details for part number 320.04003F are not provided here, Centric typically offers limited warranties covering defects in materials and workmanship. Refer to Centric's official documentation for exact warranty terms.
