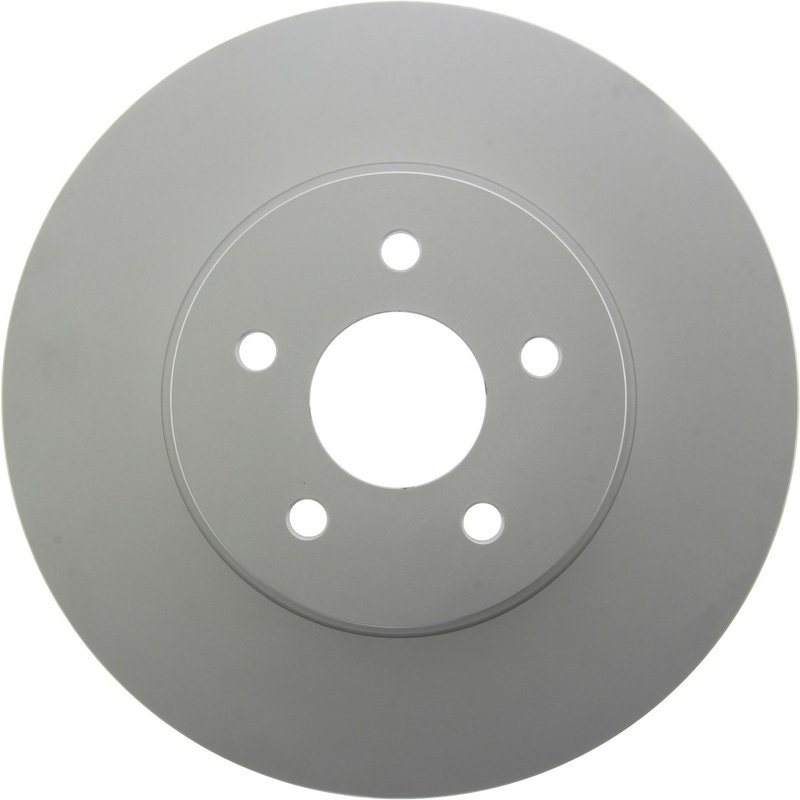

Centric 320.20016H Disc Brake Rotor - Front

Centric GCX Front Brake Rotor Overview

Centric 320.20016H is a front disc brake rotor for the 2002-2008 Jaguar X-Type. It is part of the GCX Elemental Protection line, built with a fully coated finish and high carbon content to support OE-style braking performance and corrosion resistance.

For drivers searching for a front brake rotor for Jaguar X-Type 2002-2008, this rotor combines application-specific metallurgy with a smooth, vented design and coated non-mating surfaces for long-term appearance and protection.

Key Features

• Part number: 320.20016H
• Fits 2002-2008 Jaguar X-Type, front
• Fully coated disc finish with coated hat surface
• High carbon rotor metallurgy for OE-matched application requirements
• Vented rotor design with straight vanes
• Smooth surface type
• 5-lug pattern with 108.000 mm bolt circle diameter
• Outside diameter: 300.000 mm; nominal thickness: 24.000 mm
• Discard thickness: 22.000 mm
• Center hole diameter: 63.500 mm

Product Line Details

Centric GCX Elemental Protection Disc Brake Rotors are engineered around vehicle-specific coating patterns and metallurgy. The GCX line uses Centric’s RS200 finish on non-mating surfaces to help resist rust and corrosion, while the rotor alloy is selected to match OEM-style material profiles for the application. Part number 320.20016H follows that approach for the Jaguar X-Type front axle.

What This Rotor Helps Address

• Brake rotor rust on exposed surfaces
• Corrosion buildup after wet or winter driving
• Brake pulsation caused by worn front rotors
• Reduced braking consistency from rotor wear
• Uneven rotor appearance from uncoated replacement parts

Installation Notes and Tips

Confirm front axle fitment before ordering. Verify rotor dimensions, hub fit, and lug pattern against the vehicle before installation. Because this rotor is vented and application-specific, it should be installed on the correct front position for the 2002-2008 Jaguar X-Type. Inspect pads, calipers, and hub surfaces during service to help ensure proper rotor seating and braking performance.

This part cross-references select OE-style applications for the same vehicle platform.

Quality Assurance

Centric designs GCX rotors to match OE performance targets while improving protection against rust and corrosion. The brand’s application-specific coating pattern and high-carbon metallurgy are used to align the rotor with the vehicle’s original braking profile. Part number 320.20016H is built for consistent fitment on the Jaguar X-Type front brake application.
