Home› Brake > Drums and Rotors› Centric 320.22009F Disc Brake Rotor - Front
Centric 320.22009F Disc Brake Rotor - FrontOE Quality 60-Day Returns

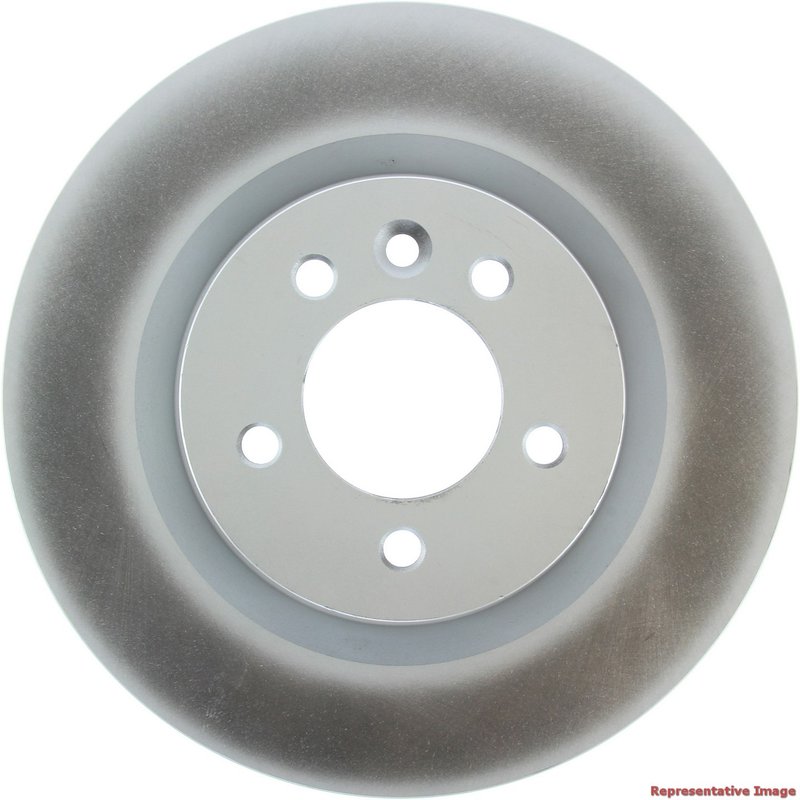

Centric 320.22009F Disc Brake Rotor - Front - view 1
Centric 320.22009F Disc Brake Rotor - Front - view 2
Centric 320.22009F Disc Brake Rotor - Front - view 3
Centric 320.22009F Disc Brake Rotor - Front - view 4
Centric 320.22009F Disc Brake Rotor - Front - view 5
Part #: 320.22009F

Centric 320.22009F Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
⚙️ 10 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$68.79Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
🚗Fitment: Land Rover, LR3 and Range Rover Sport
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.22009F Disc Brake Rotor - Front
BrandCentric
Part Number320.22009F
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, Front
Discard Thickness1.063
Discard Thickness27.000
Nominal Thickness1.181
Nominal Thickness30.000
Disc FinishFully coated
Hat FinishCoated
Overall Height2.453
Overall Height62.300
Outside Diameter13.268
Outside Diameter337.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter3.110
Center Hole Diameter79.000
Mounting Bolt Hole Circle Diameter120.300
Mounting Bolt Hole Circle Diameter4.736
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.591
Stud/Lug Hole Diameter15.000
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]1
Vane Style [cntrc]Straight
Weight [cntrc] kgs11.360
Weight [cntrc] lbs25.000

This part fits 10 vehicles. Search below:

YearMakeModelSubmodelLitersCylindersPositionNotes
2009Land RoverLR34.4LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2009Land RoverRange Rover SportHSEFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008Land RoverLR34.4LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008Land RoverRange Rover SportLEFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2008Land RoverRange Rover SportHSEFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007Land RoverLR34.4LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2007Land RoverRange Rover SportHSEFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006Land RoverLR34.4LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2006Land RoverRange Rover SportHSEFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating
2005Land RoverLR34.4LV8FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
