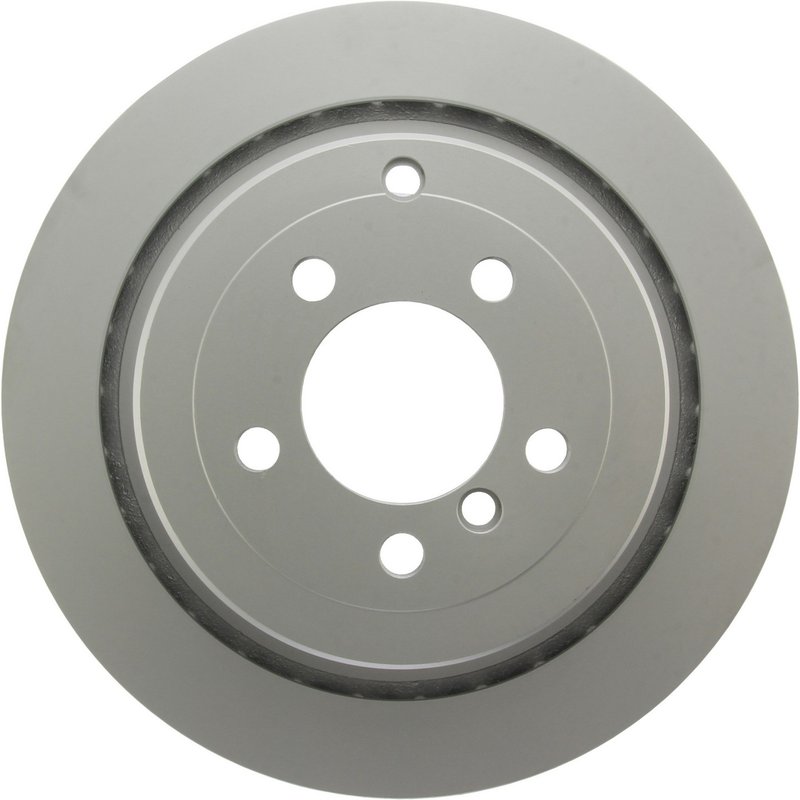

Centric 320.22017H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor for Range Rover

The Centric GCX Elemental Protection Disc Brake Rotor is built for OE-style braking performance with added resistance to rust and corrosion. This rear rotor is engineered for 2006-2012 Land Rover Range Rover applications and uses a fully coated finish to help maintain appearance and durability over time.

Key Features

• Part number 320.22017H
• Fits 2006-2012 Land Rover Range Rover, rear
• Fully coated disc finish with coated hat surface
• Vented rotor design with smooth surface type
• High carbon content metallurgy for OE-matched rotor performance
• Outside diameter: 13.937 in. (354.0 mm)
• Nominal thickness: 0.787 in. (20.0 mm)
• Discard thickness: 0.669 in. (17.0 mm)
• 5-lug pattern with 120.0 mm bolt circle

Product Details

Centric’s GCX line is application-specific, using coating patterns and metallurgy selected to match the brake pad friction type and the vehicle’s original equipment profile. For this Range Rover rear brake rotor, the fully coated RS200-style protection helps shield non-mating surfaces from corrosion while the high carbon alloy supports stable braking characteristics and long service life. The rotor measures 75.2 mm overall height, 79.0 mm center hole diameter, and 22.9 lbs in weight.

This part number, 320.22017H, is a direct-fit rear rotor for 2006-2012 Land Rover Range Rover models. If you are replacing worn rear rotors on a Range Rover, 320.22017H provides the correct dimensions and vented construction for the listed application.

Common Reasons for Replacement

• Brake pulsation from rotor wear or thickness variation
• Rust buildup on exposed rotor surfaces
• Reduced braking smoothness from scored or uneven rotors
• Noise caused by worn rear brake components
• Service replacement during pad and rotor maintenance

Installation Notes and Tips

Verify rear axle fitment before installation and confirm rotor dimensions against the original part. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Inspect pads, calipers, and hardware condition during service, and follow the vehicle manufacturer’s torque specifications when reinstalling the wheel.

Quality Assurance

Centric designs GCX rotors to match OE performance targets while improving protection against rust and corrosion. The brand’s application-specific metallurgy and coating approach are used to support consistent fit and finish for the listed Land Rover Range Rover rear application.
