CentricPart #: 320.33039H

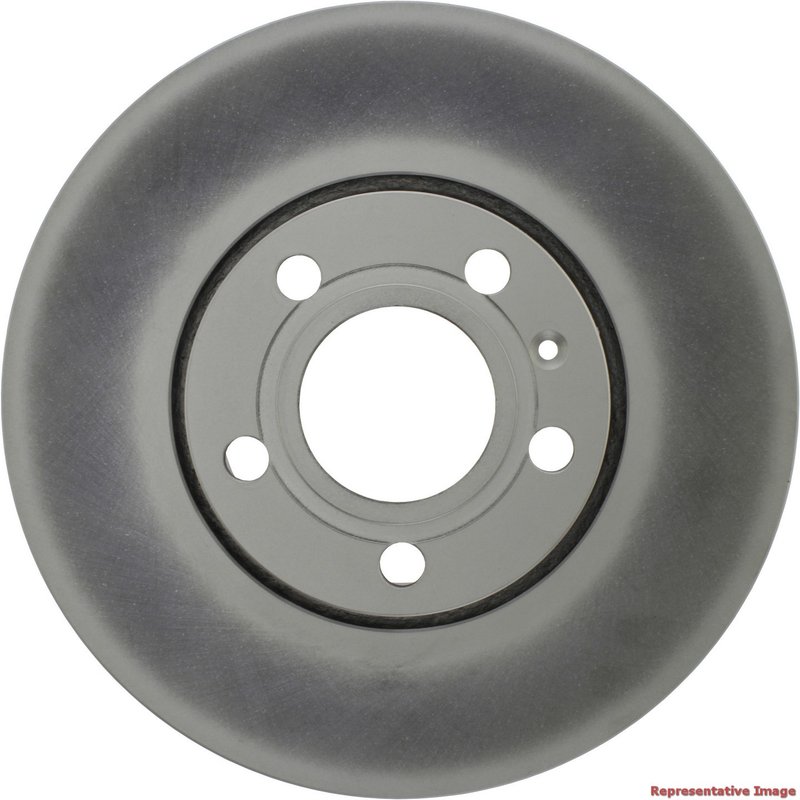

Centric 320.33039H Disc Brake Rotor - Front
⚙️ 66 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$49.96Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
🚗Fitment: Audi and Volkswagen, 100, 100 Quattro, A4, A4 Quattro, A6, A6 Quattro, and Passat
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.33039H Disc Brake Rotor - Front
| Brand | Centric |
| Part Number | 320.33039H |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front |
| Discard Thickness | 0.906 |
| Discard Thickness | 23.000 |
| Nominal Thickness | 0.980 |
| Nominal Thickness | 25.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 1.827 |
| Overall Height | 46.400 |
| Outside Diameter | 11.339 |
| Outside Diameter | 288.000 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 |
| Center Hole Diameter | 68.000 |
| Mounting Bolt Hole Circle Diameter | 112.000 |
| Mounting Bolt Hole Circle Diameter | 4.409 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.610 |
| Stud/Lug Hole Diameter | 15.500 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 0 |
| Notes [cntrc] | Vented hat |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 7.950 |
| Weight [cntrc] lbs | 17.500 |
This part fits 66 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2008 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2007 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2006 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2005 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2005 | Volkswagen | Passat | V6 4Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2005 | Volkswagen | Passat | GLX 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2005 | Volkswagen | Passat | GLS 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2005 | Volkswagen | Passat | FWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||||
| 2004 | Audi | A4 | Sedan | 1.8L | L4 | Front | Fr Ch# 8E-3-235 001, To Ch# 8E-5-060 000; To 7/04; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2004 | Audi | A4 | Convertible | 1.8L | L4 | Front | Fr Ch# 8E-3-017 416, To Ch# 8E-5-006 500; To 7/04; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2004 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2004 | Audi | A4 Quattro | 1.8L | L4 | Front | Fr Ch# 8E-3-235 001; To 7/04; To Ch# 8E-5-060 000; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Volkswagen | Passat | V6 4Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Volkswagen | Passat | GLX 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Volkswagen | Passat | GLS 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Volkswagen | Passat | FWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||||
| 2003 | Audi | A4 | 1.8L | L4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2003 | Audi | A4 Quattro | 1.8L | L4 | Front | Fr Ch# 8E-3-235 001; To Ch# 8E-5-060 000; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Volkswagen | Passat | V6 4Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Volkswagen | Passat | GLX 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Volkswagen | Passat | FWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||||
| 2002 | Audi | A4 | 1.8L | L4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2002 | Audi | A4 Quattro | 1.8L | L4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Volkswagen | Passat | V6 4Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Volkswagen | Passat | GLX 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Volkswagen | Passat | GLS 4 Motion | AWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Volkswagen | Passat | FWD | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||||
| 2001 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2001 | Audi | A4 | Front | Front Disc Brake Hydraulic Hose - 288mm; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2001 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2001 | Audi | A6 | Front | Fr Ch# 4B-X-130 001; Std Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2001 | Audi | A6 Quattro | 2.8L | V6 | Front | 288mm Front Disc; 15" Wheels; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2001 | Volkswagen | Passat | Front | Fr Chassis # 3B-X-491 581 - For front caliper installation.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2000 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2000 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2000 | Audi | A6 | Front | Fr Ch# 4B-X-130 001; Std Susp; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 2000 | Audi | A6 Quattro | 2.8L | V6 | Front | 288mm Front Disc; 15" Wheels; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2000 | Volkswagen | Passat | Front | Fr Chassis # 3B-X-491 581 - For front caliper installation.; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1999 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1999 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1999 | Audi | A6 | Front | 288mm Front Disc; 15" Wheels; Standard Suspension; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1999 | Audi | A6 Quattro | Front | 288mm Front Disc; 15" Wheels; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1999 | Volkswagen | Passat | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1998 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1998 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1998 | Audi | A6 | Front | Fits vehicles with 15" wheels; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1998 | Audi | A6 Quattro | Front | 288mm Front Disc; 15" Wheels; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1998 | Volkswagen | Passat | Front | Fr 7/98; Fr Ch# 3B-X-124 108; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1997 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1997 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1997 | Audi | A6 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1997 | Audi | A6 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1996 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1996 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1996 | Audi | A6 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1996 | Audi | A6 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1995 | Audi | A6 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1995 | Audi | A6 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1994 | Audi | 100 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1994 | Audi | 100 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1993 | Audi | 100 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1993 | Audi | 100 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1992 | Audi | 100 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||||
| 1992 | Audi | 100 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
