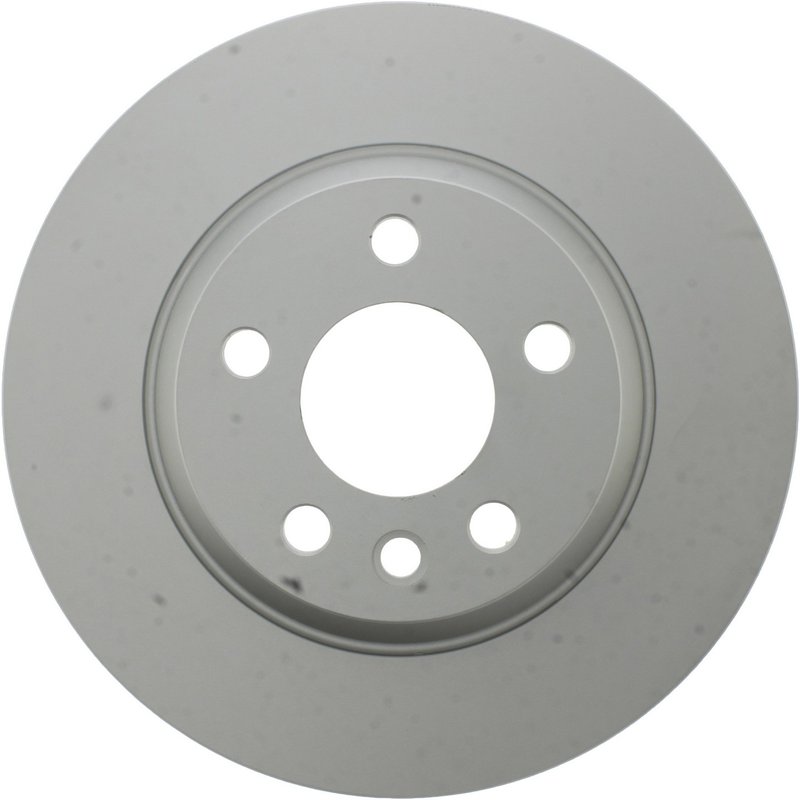

Centric 320.33076H Disc Brake Rotor - Rear

Centric GCX Rear Brake Rotor Overview

The Centric GCX Elemental Protection Disc Brake Rotor, part number 320.33076H, is a rear disc brake rotor built for OE-style performance and corrosion resistance. It is a fully coated, high carbon content rotor with a smooth surface and solid rotor design for select Volkswagen applications.

Compatible With 2002-2008 Volkswagen Sharan, rear, and 2001-2003 Volkswagen EuroVan, rear, this rotor is engineered for direct-fit replacement use. The Centric GCX line focuses on application-specific coating and metallurgy to match the vehicle’s original brake profile.

Key Features

• Part number 320.33076H
• Fully coated disc finish with coated hat finish
• High carbon content metallurgy for OE-style brake performance
• Solid rotor design with smooth surface type
• Outside diameter: 294 mm (11.575 in.)
• Nominal thickness: 13.600 mm (0.535 in.)
• Discard thickness: 11.500 mm (0.453 in.)
• 5-lug mounting pattern with 112 mm bolt circle diameter
• Center hole diameter: 68.000 mm (2.677 in.)
• Floating disc mounting with 1 miscellaneous hole

Centric GCX Product Line Details

Centric GCX and GCX FC rotors are built around application-specific coating patterns and metallurgy. The RS200-style coating is applied to non-mating surfaces to help resist rust and corrosion, while the rotor alloy is selected to align with the OEM metallurgical profile for the vehicle. For Volkswagen Sharan and Volkswagen EuroVan rear brake service, this helps maintain consistent fitment and a clean rotor appearance over time.

Fitment

• Fits 2002-2008 Volkswagen Sharan, rear. 294mm rear disc.
• Fits 2001-2003 Volkswagen EuroVan, rear. 294mm rear disc; 312mm front disc.

What This Rotor Helps Address

• Rear brake rotor wear and thickness loss
• Rust and corrosion on exposed rotor surfaces
• Brake pulsation related to worn or uneven rotors
• Noise caused by degraded rotor surfaces
• OE replacement needs for Volkswagen rear brake service

Installation Notes and Tips

Verify rotor diameter, center hole, bolt circle, and rear-position fitment before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads and caliper hardware for wear before completing the brake service. This rotor is listed for rear applications only on the Volkswagen Sharan and Volkswagen EuroVan fitments shown above.

Quality Assurance

Centric designs the GCX rotor line to match OE performance targets while improving protection against rust and corrosion. The high carbon rotor metallurgy and full coating are intended to support consistent brake service life and appearance on the specified Volkswagen applications.
