CentricPart #: 320.33096H

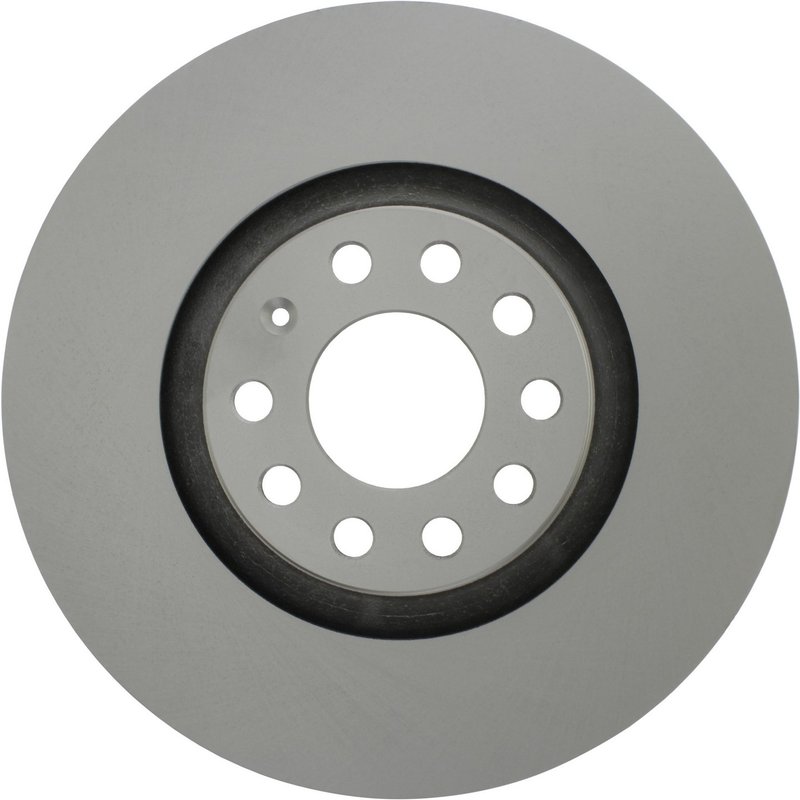

Centric 320.33096H Disc Brake Rotor - Front
⚙️ 37 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$81.06Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
🚗Fitment: Audi, A4, A4 Quattro, A6, A6 Quattro, Allroad Quattro, and S4
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.33096H Disc Brake Rotor - Front
| Brand | Centric |
| Part Number | 320.33096H |
| Position | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front |
| Discard Thickness | 1.102 |
| Discard Thickness | 28.000 |
| Nominal Thickness | 1.181 |
| Nominal Thickness | 30.000 |
| Disc Finish | Fully coated |
| Hat Finish | Coated |
| Overall Height | 1.815 |
| Overall Height | 46.100 |
| Outside Diameter | 12.587 |
| Outside Diameter | 319.700 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 |
| Center Hole Diameter | 68.000 |
| Mounting Bolt Hole Circle Diameter | 112.700 |
| Mounting Bolt Hole Circle Diameter | 4.437 |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.598 |
| Stud/Lug Hole Diameter | 15.200 |
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 4 |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] kgs | 10.160 |
| Weight [cntrc] lbs | 22.350 |
This part fits 37 vehicles. Search below:
| Year | Make | Model | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2009 | Audi | A4 | Convertible | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2009 | Audi | A4 Quattro | Convertible | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2008 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2008 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2008 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2007 | Audi | A4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2007 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2007 | Audi | A4 Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2006 | Audi | A4 | Sedan | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2006 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2006 | Audi | A4 Quattro | 3.2L | V6 | Front | Fr Ch# 8E-5-400 001; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2006 | Audi | A4 Quattro | 2.0L | L4 | Front | Fr Ch# 8E-5-400 001; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2005 | Audi | A4 | 2.0L | L4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2005 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2005 | Audi | A4 Quattro | Wagon | Front | Fr Ch# 8E-5-400 001; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2005 | Audi | A4 Quattro | Sedan | Front | Fr Ch# 8E-5-400 001; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | ||
| 2005 | Audi | Allroad Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2004 | Audi | A6 Quattro | 2.7L | V6 | Front | 2 Pad Front Caliper; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2004 | Audi | Allroad Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2003 | Audi | A6 Quattro | 2.7L | V6 | Front | 2 Pad Front Caliper; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2003 | Audi | Allroad Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Audi | A6 Quattro | 2.7L | V6 | Front | 2 Pad Front Caliper; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2002 | Audi | Allroad Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2002 | Audi | S4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2001 | Audi | A4 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2001 | Audi | A6 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2001 | Audi | A6 Quattro | 2.7L | V6 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2001 | Audi | Allroad Quattro | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2001 | Audi | S4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2000 | Audi | A6 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 2000 | Audi | A6 Quattro | 2.7L | V6 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |
| 2000 | Audi | S4 | Front | Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 1999 | Audi | A6 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content | |||
| 1998 | Audi | A6 | Front | 320mm Front Disc; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
