Home› Brake > Drums and Rotors› Centric 320.33112H Disc Brake Rotor - Front
Centric 320.33112H Disc Brake Rotor - FrontOE Quality 60-Day Returns

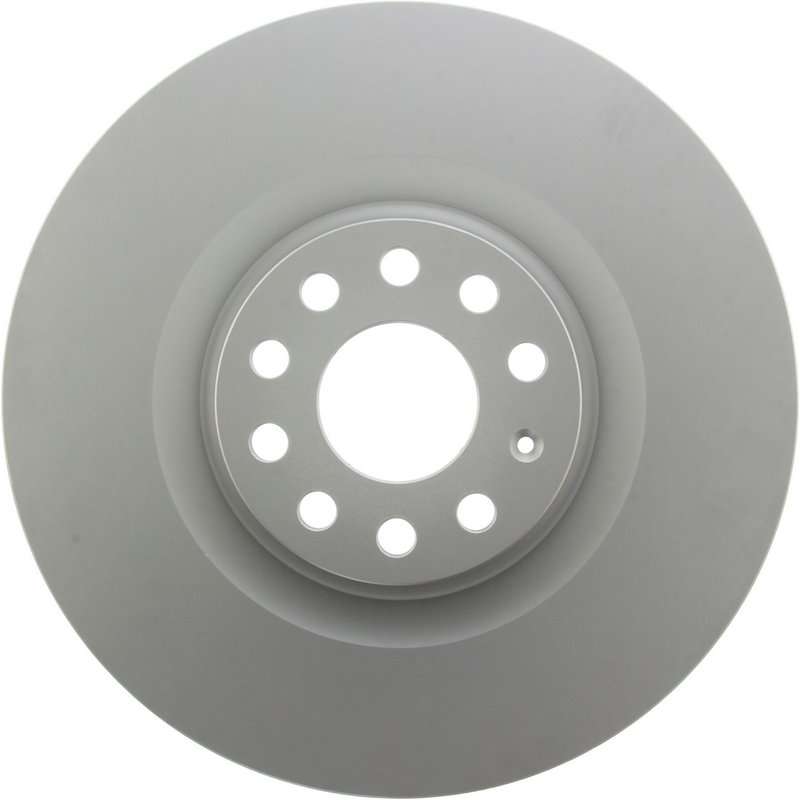

Centric 320.33112H Disc Brake Rotor - Front - view 1
Centric 320.33112H Disc Brake Rotor - Front - view 2
Centric 320.33112H Disc Brake Rotor - Front - view 3
Centric 320.33112H Disc Brake Rotor - Front - view 4
Centric 320.33112H Disc Brake Rotor - Front - view 5
Part #: 320.33112H

Centric 320.33112H Disc Brake Rotor - Front

Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
⚙️ 17 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$97.14Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
🚗Fitment: Audi and Volkswagen, CC, Golf R, Passat, Passat CC, R32, and S3
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Disc Brake Rotor options
Centric 320.33112H Disc Brake Rotor - Front
BrandCentric
Part Number320.33112H
PositionCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content, Front
Discard Thickness1.063
Discard Thickness27.000
Nominal Thickness1.177
Nominal Thickness29.900
Disc FinishFully coated
Hat FinishCoated
Overall Height1.961
Overall Height49.800
Outside Diameter13.583
Outside Diameter345.000
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Bearings IncludedNo
Center Hole Diameter2.559
Center Hole Diameter65.000
Mounting Bolt Hole Circle Diameter112.000
Mounting Bolt Hole Circle Diameter4.409
Stud/Lug Hole Quantity5
Stud/Lug Hole Diameter0.602
Stud/Lug Hole Diameter15.300
Disc Mounting [cntrc]Floating
Misc Holes [cntrc]5
Vane Style [cntrc]Straight
Weight [cntrc] kgs12.390
Weight [cntrc] lbs27.250

This part fits 17 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2013VolkswagenGolf RFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2012AudiS3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2012VolkswagenGolf RFrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2011AudiS3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2011VolkswagenCC3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2010AudiS3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2010VolkswagenCC3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2010VolkswagenPassat CC3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2009AudiS3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2009VolkswagenCC3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2009VolkswagenPassat3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2009VolkswagenPassat CC3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2008AudiS3FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2008VolkswagenPassat3.6LV6FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2008VolkswagenR32FrontCentric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2007VolkswagenPassat3.6LV6Front4Motion; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content
2006VolkswagenPassat3.6LV6Front4Motion; Centric GCX Elemental Protection Disc Brake Rotors - Full Coating, High Carbon Content

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
